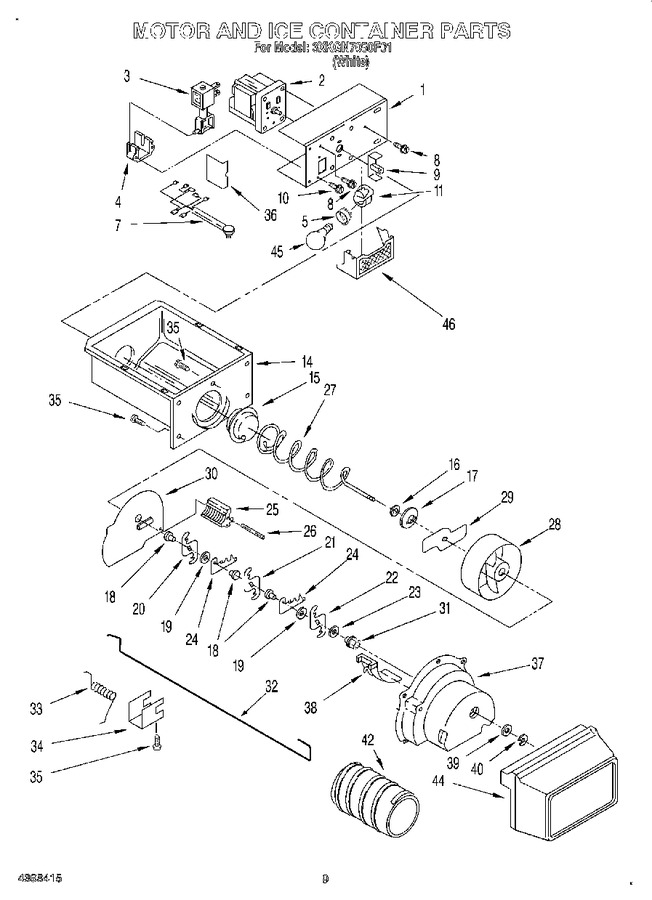

05 - Freezer Liner


06 - Motor And Ice Container


07 - Refrigerator Door


08 - Freezer Door


09 - Dispenser Front


10 - Unit


11 - Ice Maker


12 - Air Flow, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2183726		Bracket, Motor		Appelez-nous	-
2	2165167		Motor, Dispenser		Appelez-nous	-
3	WPW10129867		Solenoid Assembly   (Replaces: 2165210)				$ 172.45
4	W10850503		Guide, Solenoid   (Replaces: 2149100)				$ 9.78
5	WP2175210		Shroud, Light   (Replaces: 2169193)				$ 78.07
7	2186815		Wiring Assembly, Ice Dispenser		Appelez-nous	-
8	WP489399		Screw   (Replaces: 489399)				$ 6.57
9	WPW10169511		Coupling, Motor   (Replaces: 983663)				$ 22.06
10	WP489478		Screw   (Replaces: 489478)				$ 7.36
11	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 104.10
14	WPW10670845		Ice Container   (Replaces: 2196091)				$ 179.27
15	W10749708		Coupling, Conveyor   (Replaces: 983668)				$ 24.70
16	1118480		Stop, Cone		Appelez-nous	-
17	1119074		Feeder Cone		Appelez-nous	-
18	WP1119005		Spacer, Step (3)   (Replaces: 1119005)				$ 10.57
19	WP1119007		Spacer, Flat (2)   (Replaces: 1119007)				$ 13.29
20	W10278731		Blade, Rotary   (Replaces: 1119006)				$ 81.78
21	W10278732		Blade, Rotary   (Replaces: 1119012)				$ 81.90
22	W10278733		Blade, Rotary   (Replaces: 1119013)				$ 81.90
23	489235		Washer, Plain				$ 8.05
24	1119009		Blade, Fixed (2)				$ 72.21
25	2157405		Block, Blade				$ 20.10
26	489229		Roll Pin				$ 43.62
27	W10422851		Conveyor   (Replaces: 2181955)				$ 156.73
28	4388736		Drum   (Replaces: 2171681)				$ 87.27
29	4388736		Drive Bar   (Replaces: 1118470)				$ 87.27
30	W10852691		Floating Baffle   (Replaces: 2171682)			Immediately	$ 31.37
31	WP1119018		Nut, Bearing   (Replaces: 1119018)				$ 7.11
32	W11596045		Control Arm   (Replaces: 2155231)				$ 31.96
33	1119020		Spring, Return				$ 17.22
34	1119021		Retainer Clip, Rod				$ 9.86
35	WP488787		Screw   (Replaces: 488886)				$ 10.13
36	1129563		Shield, Wiring		Appelez-nous	-
37	WPW10185018		Housing, Crusher   (Replaces: 2180348)				$ 117.59
38	WP1119017		Deflector, Ice   (Replaces: 1119017)				$ 7.16
39	489234		Washer, Plain				$ 12.64
40	WP489236		Retainer Ring   (Replaces: 489236)			Immediately	$ 11.50
42	4317870		Sleeve-auger   (Replaces: 2152021)				$ 122.42
44	2171708		Front Cover, Ice Container		Appelez-nous	-
45	WP67002552		Light Bulb   (Replaces: 851682)			Immediately	$ 11.11
46	WP2171706		Light Lens, Dispenser   (Replaces: 2171706)				$ 86.32
