01 - Freezer Compartment
02 - Fresh Food Compartment
03 - Ice & Water Dispenser

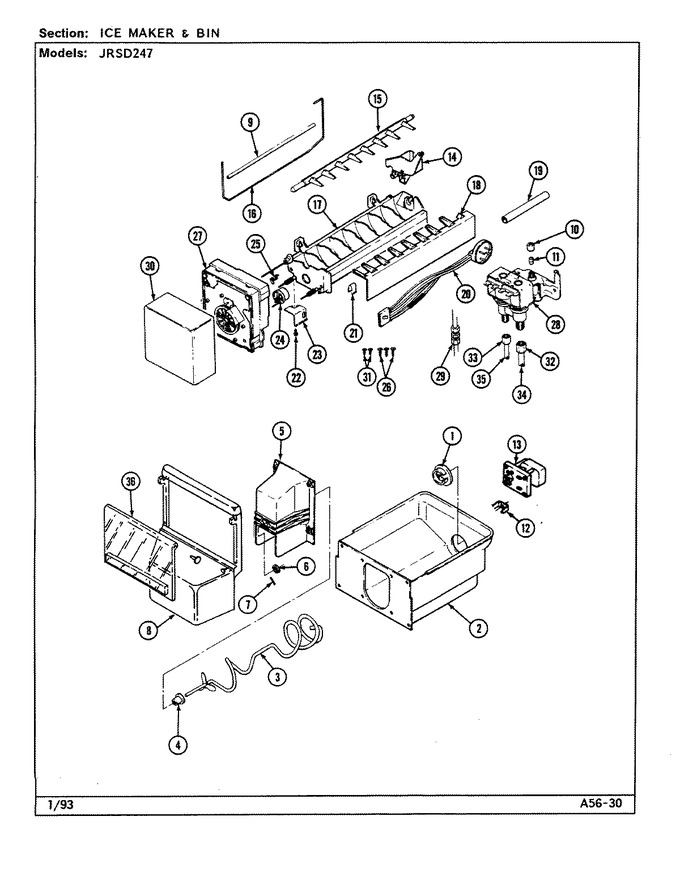

04 - Ice Maker & Bin
05 - Shelves & Accessories
06 - Unit Compartment & System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 63017-1 | Ring, Drive | 10 |
|
- | ||||
| 2 | 67830-1 | Bin, Ice | 10 |
|
- | ||||
| 3 | 67833-1 | Auger | 10 |
|
- | ||||
| 4 | 67172-2 | Bearing | 10 |
|
- | ||||
| 5 | 67830-1 | Bin, Ice | 10 |
|
- | ||||
| 6 | 67834-2 | Washer, Thrust | 10 |
|
- | ||||
| 7 | 492007-703 | Pin, Cotter | 10 |
|
- | ||||
| 8 | WP1163283 | Screw (Replaces: 405022-103) | 10 |
|
$ 7.55 | ||||
| 8 | 69875-12 | Front,ice Bein | 10 |
|
- | ||||
| 9 | 67556-2 | Sleeve, Sensor Arm | 10 |
|
- | ||||
| 10 | WP245183 | Nut, Brass (1/4``) (Replaces: 69432-1) | 10 |
|
$ 8.84 | ||||
| 11 | WP487627 | Sleeve, Brass (Replaces: 69431-1) | 10 |
|
$ 11.73 | ||||
| 12 | WP63052-2 | Yoke, Ice Dispenser (Replaces: 63052-1) | 10 |
|
Immediately | $ 72.36 | |||
| 13 | 12001773 | Motor, Auger (Replaces: 65186-1) | 10 |
|
$ 364.71 | ||||
| 13 | W11233072 | Screw (Replaces: 400016-1) | 10 |
|
Immediately | $ 14.72 | |||
| 13 | WP488234 | Screw (Replaces: 406026-103) | 10 |
|
$ 7.08 | ||||
| 14 | WP628356 | Inlet, Water (Replaces: 95100-1) | 10 |
|
$ 53.75 | ||||
| 15 | WP627843 | Ejector, Ice (Replaces: 95101-1) | 10 |
|
$ 87.78 | ||||
| 16 | 68112-1 | Arm, Sensor | 10 |
|
- | ||||
| 17 | D7824706Q | Mold & Heater Assy. (Replaces: 95098-1) | 10 |
|
Immediately | $ 167.35 | |||
| 18 | WP2182124 | Stripper, Ice (Replaces: 95102-1) | 10 |
|
$ 90.35 | ||||
| 19 | 67666-1 | Tube, Water Entry | 10 |
|
- | ||||
| 20 | 67910-1 | Wire Harness | 10 |
|
- | ||||
| 21 | WP628379 | Clamp, Wire Harness (Replaces: 68118-1) | 10 |
|
$ 11.10 | ||||
| 22 | WP489128 | Screw, Bracket (Replaces: 95108-1) | 10 |
|
$ 11.40 | ||||
| 23 | WP2256087 | Bracket, Module & Heater (Replaces: 95107-1) | 10 |
|
$ 97.65 | ||||
| 24 | 95093-1 | Cement, Alumilastic (4 Oz.) | 10 |
|
$ 49.64 | ||||
| 24 | WP627985 | Thermostat (Replaces: 95092-1) | 10 |
|
$ 114.64 | ||||
| 25 | WP2315522 | Retainer, Thermostat (Replaces: 95104-1) | 10 |
|
$ 11.60 | ||||
| 26 | WP67006908 | Screw (Replaces: 400022-1) | 10 |
|
Immediately | $ 8.78 | |||
| 27 | D7824706Q | Module, Ice Maker (Replaces: 95109-1) | 10 |
|
Immediately | $ 167.35 | |||
| 28 | 69825-1 | Valve, Water | 10 |
|
- | ||||
| 29 | WPW10296793A | Union, Compression (Replaces: 54267-1) | 10 |
|
$ 12.75 | ||||
| 30 | 95105-1 | Screw | 10 |
|
- | ||||
| 30 | WP681249 | Screw (Replaces: 95106-1) | 10 |
|
Immediately | $ 8.25 | |||
| 30 | 68328-2 | Cover, Ice Maker | 10 |
|
- | ||||
| 31 | 401018-1 | Screw | 10 |
|
- | ||||
| 32 | 69583-2 | Nut, Compression (5/16``) | 10 |
|
- | ||||
| 33 | WP627018 | Nut, Compression (1/4``) (Replaces: 69583-1) | 10 |
|
$ 11.51 | ||||
| 34 | WPW10426709 | Tubing (Replaces: 67187-10) | 10 |
|
$ 147.97 | ||||
| 35 | WPB5705307 | Tubing, Valve To Grommet (Replaces: 67579-2) | 10 |
|
$ 13.05 | ||||
| 36 | 69920-1 | Door, Disp Bin Assy. | 10 |
|
- | ||||
| 36 | 69048-1 | Wire Harness, Auger Motor | 10 |
|
- |
