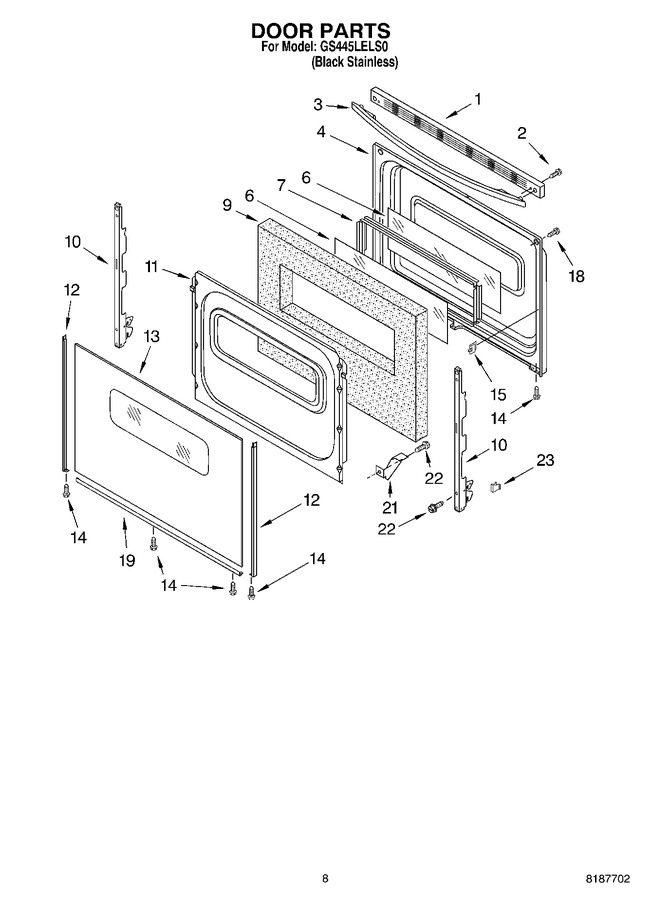

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8272243		Trim, Top		Appelez-nous	-
2	WP3196164		Screw   (Replaces: 3196164)			Immediately	$ 11.03
3	WPW10202217		Handle, Door   (Replaces: 3195922)				$ 270.65
4	3186292		Liner, Door		Appelez-nous	-
6	WP8053948		Glass, Inner (2)   (Replaces: 8053948)				$ 178.28
7	WPW10316950		Frame, Glass   (Replaces: 3186289)			Immediately	$ 90.09
9	WPW10278991		Insulation, Door   (Replaces: 8272618)			Immediately	$ 101.37
10	8272822		Hinge, Door				$ 71.88
11	W11539580		Retainer, Insul.   (Replaces: 3186297)				$ 233.31
12	W10761014		Trim, Door Side (right Hand)   (Replaces: 8523165)			Immediately	$ 72.96
12	W10761018		Trim, Door Side (left Hand)   (Replaces: 8523171)			Immediately	$ 53.77
13	8272215		Glass, Outer Door (stainless)		Appelez-nous	-
14	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
15	3196025		Clip, Door Glass				$ 20.10
18	WP179051		Screw   (Replaces: 3196161)			Immediately	$ 8.42
19	WP8523180		Trim, Bottom   (Replaces: 8523180)				$ 169.00
21	3196794		Bracket, Window				$ 24.34
22	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
23	3196925		Clip, Door Stop (2)				$ 9.06
	N/A		Miscellaneous		Appelez-nous	-
	350956		Paint, Pressurized Spray (12 Oz.) (almond)				$ 54.01
	978883		Paint, Bulk (1 Qt.) (almond (uncut))		Appelez-nous	-
	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
	8273888A		Anti-tip Kit   (Replaces: 3176830)				$ 32.62
	8523425		Harness, Main (pyro)		Appelez-nous	-
	8524207		Harness, Bake &				$ 52.99
	8523599		Harness, Wire (cooktop Spark)				$ 146.57
	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
	8053527		Clip, Wire		Appelez-nous	-
	3196896		Clip-wire		Appelez-nous	-
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
	3196696		Clip, Harness		Appelez-nous	-
	814381		Pin Kit-dr Removal				$ 11.28
	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
	242831		Wire (14 Ga. 200 C Red)				$ 342.23
	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 87.22
	261582		Grease		Appelez-nous	-
	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 55.47
	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 55.47
	4392899		Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 27.77
	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	285006		Paint, Pressurized Spray 12 Oz.) (superior Black)				$ 59.89
	350942		Paint, Pressurized Spray (12 Oz.) (primer, White)   (Replaces: 206922)				$ 94.14
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
