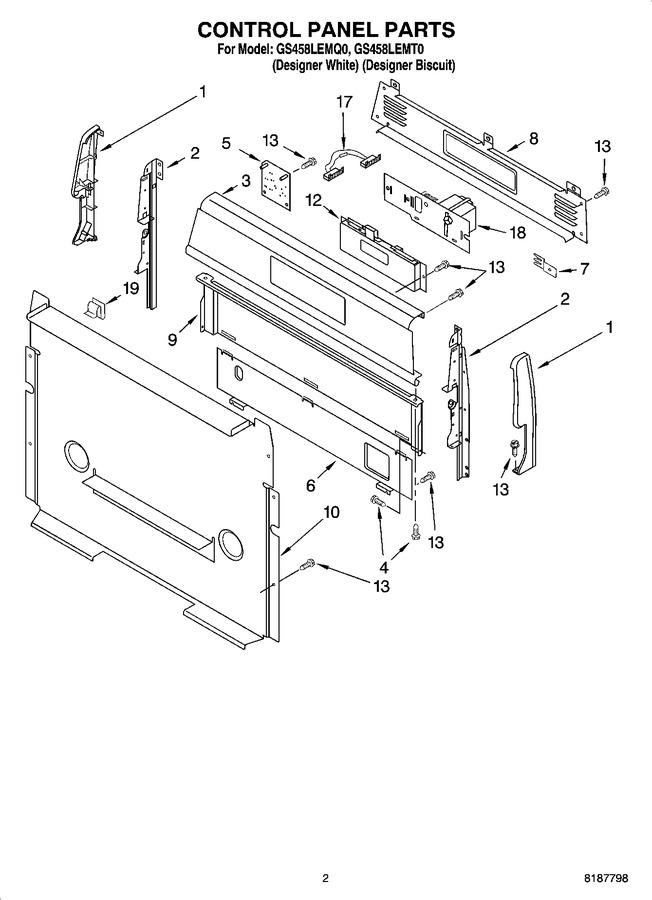

01 - Cooktop Parts
02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Drawer & Broiler Parts
06 - Door Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8272507 | Endcap (left Hand-biscuit) |
|
- | |||||
| 1 | 3186191 | Endcap (right Hand White) |
|
- | |||||
| 1 | 8272508 | Endcap (right Hand-biscuit) |
|
- | |||||
| 1 | 3186190 | Endcap (left Hand White) |
|
- | |||||
| 2 | 8523408 | Support, Endcap (left Hand) |
|
- | |||||
| 2 | 8523409 | Support, Endcap (right Hand) |
|
- | |||||
| 3 | 8524101 | Panel, Control (biscuit) |
|
- | |||||
| 3 | 8524106 | Panel, Control (white) |
|
- | |||||
| 4 | W10276642 | Screw (Replaces: 4449746) |
|
$ 6.10 | |||||
| 5 | WPW10331686 | Module, Spark (Replaces: 8273977) |
|
Immediately | $ 393.86 | ||||
| 6 | 8053505 | Shield, Lower Heat |
|
$ 157.99 | |||||
| 7 | 8523412 | Bracket, Cooktop |
|
$ 159.90 | |||||
| 8 | 9756301 | Cover, Upper |
|
$ 51.01 | |||||
| 9 | 8053910 | Shield, Heat |
|
- | |||||
| 10 | 8273132 | Cover, Lower |
|
- | |||||
| 12 | 4453603 | Control, Range (white) |
|
- | |||||
| 12 | 4453602 | Control, Range (biscuit) |
|
- | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.02 | ||||
| 17 | 8523000 | Jumper W/fuse |
|
- | |||||
| 18 | 6610333 | Power Supply, Pca |
|
$ 185.18 | |||||
| 19 | WP8273564 | Clip (Replaces: 8273564) |
|
$ 12.06 |
