SELECT A DIAGRAM

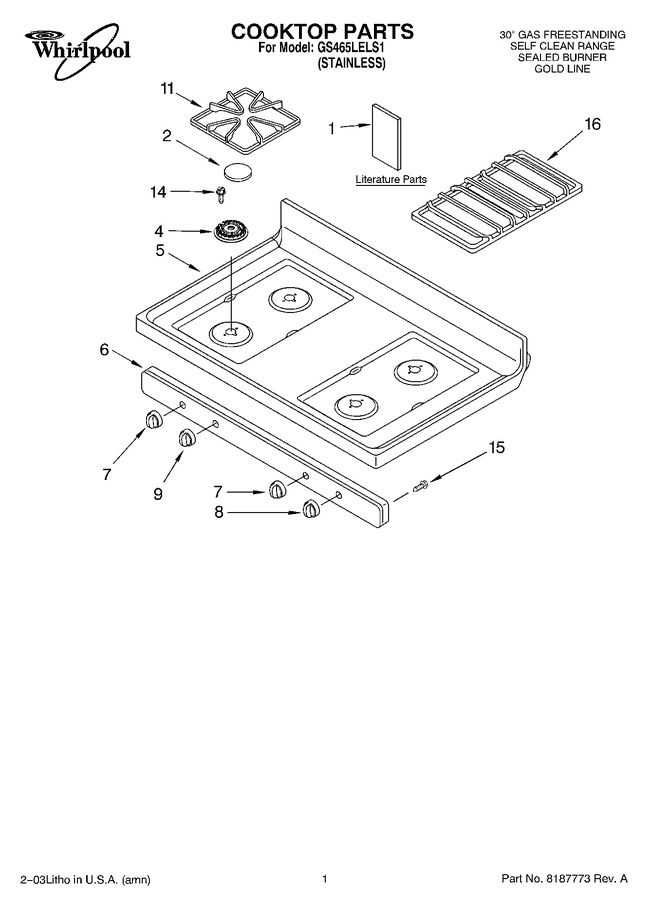

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer & Broiler Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8523783		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT8523048		Literature Parts (template (instruct-install))		Appelez-nous	-
1	LIT8523777		Literature Parts (guide, Use & Care)		Appelez-nous	-
1	LIT8522648		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
2	WP3191901		Cap, Burner (rf, Lr)   (Replaces: 3191901)				$ 118.70
2	WP3191898		Cap, Burner (rr)   (Replaces: 3191898)				$ 67.62
2	WP3191904		Cap, Burner (lf)   (Replaces: 3191904)				$ 175.39
4	WP4455980		Burner (burner (lr, Rf 9k))   (Replaces: 4455980)				$ 62.10
4	4455979		Burner (burner (rr 6k))				$ 28.52
4	WP4455981		Burner (lf (12k))   (Replaces: 4455981)			Immediately	$ 87.52
5	8272253		Cooktop		Appelez-nous	-
6	8523855		Panel, Manifold				$ 167.79
7	8273279		Knob, Control (2)				$ 18.22
8	8273280		Knob, Accusimmer		Appelez-nous	-
9	8273281		Knob, Powerburner		Appelez-nous	-
11	WPW10447925		Grate, Burner (4)   (Replaces: 8522851)			Immediately	$ 285.29
14	WP3368921		Screw   (Replaces: 3400701)			Immediately	$ 7.13
15	WP3196557		Screw   (Replaces: 3196557)			Immediately	$ 7.95
16	8522846		Grate, Center				$ 85.72

    View Diagram in Separate Window       Print Part List
