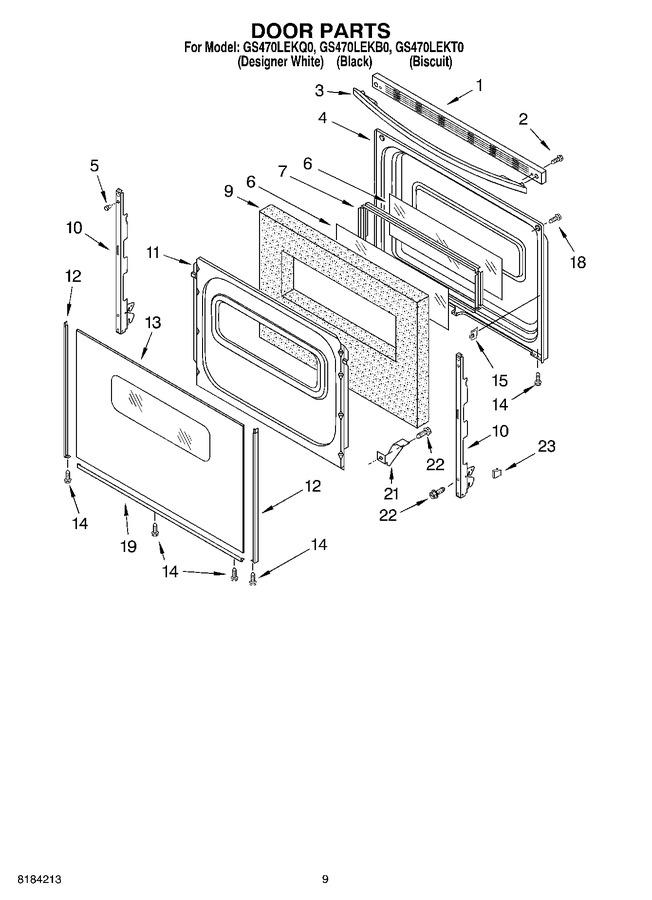

01 - Cooktop Parts
02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Warming Drawer & Rack Parts
06 - Door Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3196819 | Trim, Top (black) |
|
- | |||||
| 1 | 8522433 | Trim, Top (white) |
|
- | |||||
| 1 | 8522434 | Trim, Top (biscuit) |
|
- | |||||
| 2 | WP3196164 | Screw (Replaces: 3196164) |
|
Immediately | $ 8.69 | ||||
| 3 | WPW10202217 | Handle, Door (black) (Replaces: 3195922) |
|
$ 257.76 | |||||
| 3 | WPW10202216 | Handle, Door (white) (Replaces: 8522444) |
|
$ 353.02 | |||||
| 3 | 8522445 | Handle, Door (biscuit) |
|
- | |||||
| 4 | 3186292 | Liner, Door |
|
- | |||||
| 5 | 238614 | Bumper (2) (Replaces: 3195809) |
|
$ 80.76 | |||||
| 6 | WP8053948 | Glass, Inner (2) (Replaces: 3186271) |
|
$ 178.28 | |||||
| 7 | WPW10316950 | Frame, Glass (Replaces: 3186289) |
|
Immediately | $ 84.86 | ||||
| 9 | WPW10278991 | Insulation, Door (Replaces: 8272618) |
|
Immediately | $ 96.54 | ||||
| 10 | 8190074 | Hinge, Door |
|
- | |||||
| 11 | W11539580 | Retainer, Insul. (Replaces: 3186297) |
|
$ 221.30 | |||||
| 12 | 8184859 | Trim, Door Side (left Hand-white) (Replaces: 8522439) |
|
$ 162.77 | |||||
| 12 | 8184858 | Trim, Door Side Left Hand (black) (Replaces: 3195976) |
|
$ 160.81 | |||||
| 12 | 8184860 | Trim, Door Side (right Hand-biscuit) (Replaces: 8272496) |
|
$ 144.34 | |||||
| 12 | 8184859 | Trim, Door Side (right Hand-white) (Replaces: 8522436) |
|
$ 162.77 | |||||
| 12 | 8184858 | Trim, Door Side (right Hand-black) (Replaces: 3195973) |
|
$ 160.81 | |||||
| 12 | 8184860 | Trim, Door Side Left Hand (biscuit) (Replaces: 8272497) |
|
$ 144.34 | |||||
| 13 | 8272498 | Glass, Outer Door (biscuit) |
|
- | |||||
| 13 | WPW10118455 | Glass, Outer Door (black) (Replaces: 8053478) |
|
Immediately | $ 316.86 | ||||
| 13 | WP8053834 | Glass, Outer Door (white) (Replaces: 8053480) |
|
$ 277.96 | |||||
| 14 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.19 | ||||
| 15 | 3196025 | Clip, Door Glass |
|
$ 20.10 | |||||
| 18 | WP179051 | Screw (Replaces: 3196161) |
|
Immediately | $ 7.96 | ||||
| 19 | 8184859 | Trim, Bottom (white) (Replaces: 3195422) |
|
$ 162.77 | |||||
| 19 | 8184860 | Trim, Bottom (biscuit) (Replaces: 8272499) |
|
$ 144.34 | |||||
| 19 | 8184858 | Trim, Bottom (black) (Replaces: 3195424) |
|
$ 160.81 | |||||
| 21 | 3196794 | Bracket, Window |
|
$ 24.34 | |||||
| 22 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.19 | ||||
| 23 | 3196925 | Clip, Door Stop (2) |
|
$ 9.06 | |||||
| 814381 | Pin Kit-dr Removal |
|
$ 8.59 | ||||||
| 350956 | Paint, Pressurized Spray (12 Oz.) (almond) |
|
$ 51.44 | ||||||
| 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | ||||||
| N/A | Miscellaneous |
|
- | ||||||
| 799832 | Kit. Porcelain Repair (white) |
|
- | ||||||
| 8212471 | Touch-up Self-clean(1/2 Pt) (Replaces: 242756) |
|
Immediately | $ 83.07 | |||||
| 261582 | Grease |
|
- | ||||||
| WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 55.47 | |||||
| WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 55.47 | |||||
| 4392899 | Paint, Touch-up (1/2oz.) (biscuit) |
|
Immediately | $ 26.45 | |||||
| 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 49.29 | ||||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 17.91 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | |||||
| 285006 | Paint, Pressurized Spray 12 Oz.) (superior Black) |
|
$ 57.04 | ||||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) (Replaces: 206922) |
|
$ 89.66 | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 978883 | Paint, Bulk (1 Qt.) (almond (uncut)) |
|
- | ||||||
| 4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) |
|
- | ||||||
| 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | ||||||
| 8273888A | Anti-tip Kit (Replaces: 3176830) |
|
$ 31.07 | ||||||
| 8522614 | Harness, Main (pyro) |
|
- | ||||||
| 8273901 | Harness, Bake & Broil Ignitor |
|
$ 69.23 | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 8274195 | Harness, Electrode |
|
- | ||||||
| 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 84.76 | ||||||
| 8053527 | Clip, Wire |
|
- | ||||||
| 3196896 | Clip-wire |
|
- | ||||||
| 16515 | Clip, Harness (Replaces: 313438) |
|
$ 19.55 | ||||||
| 3196696 | Clip, Harness |
|
- | ||||||
| 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 242821 | Wire (14 Ga. 150 C Blue) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242829 | Wire, Red 12 Ga. 150~c |
|
- | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242826 | Wire, White 14 Ga. 150~c |
|
- | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- |
