SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Door Parts

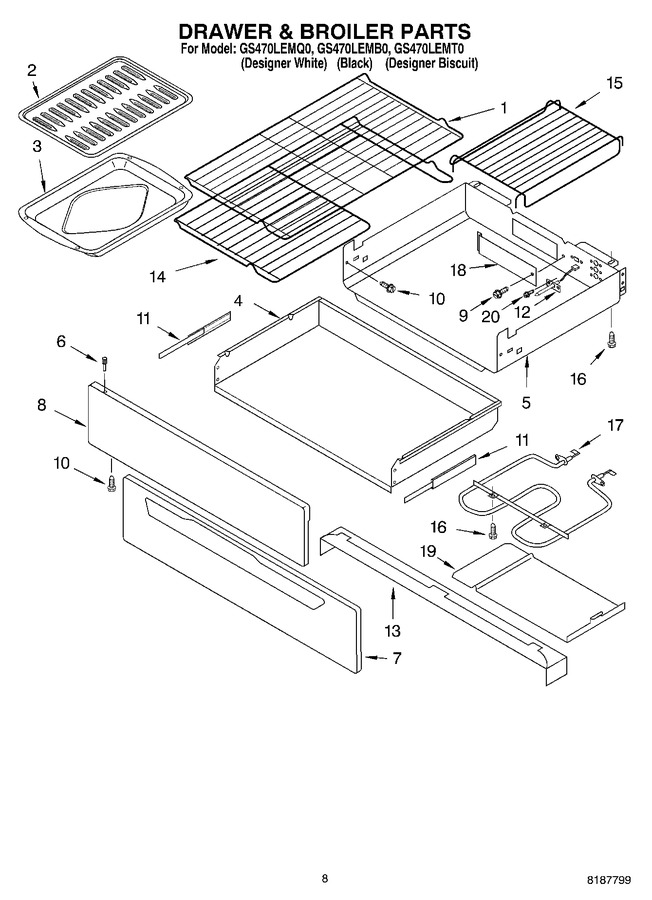

06 - Drawer & Broiler Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11520287		Rack, Oven (2)   (Replaces: 3195710)			Immediately	$ 46.84
2	WP3195996		Grill, Broiler   (Replaces: 3195996)				$ 91.81
3	WP3196076		Pan, Broiler   (Replaces: 3196076)				$ 310.42
4	8272610		Drawer, Warming				$ 141.41
5	8274150		Enclosure, Drawer		Appelez-nous	-
6	3196815		Rivet, Push (almond)		Appelez-nous	-
6	WP3196814		Rivet, Push (white)   (Replaces: 3196814)			Immediately	$ 10.54
6	WP3196813		Rivet, Push (black)   (Replaces: 3196813)			Immediately	$ 10.67
7	W11230473		Panel, Drawer Front (biscuit)   (Replaces: 8272502)		Appelez-nous	-
7	W11230486		Panel, Drawer Front (white)   (Replaces: 8053336)				$ 201.42
7	W11230490		Panel, Drawer Front (black)   (Replaces: 8053338)				$ 201.51
8	8272608		Panel, Inner		Appelez-nous	-
9	WPY706189		Screw   (Replaces: 3196427)			Immediately	$ 7.19
10	WP3400832		Screw   (Replaces: 3196168)			Immediately	$ 7.75
11	8054066		Rail Assy, Drawer (right Side)		Appelez-nous	-
11	8054065		Rail Assy, Drawer (left Side)		Appelez-nous	-
12	WP8274149		Thermistor   (Replaces: 8274149)			Immediately	$ 192.05
13	8273414		Shield, Drawer		Appelez-nous	-
14	WP8274021		Rack, Partial   (Replaces: 8274021)				$ 151.53
15	4396927		Rack, Insert   (Replaces: 8274022)				$ 234.38
16	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.02
17	9760775		Element, Warming   (Replaces: 8054056)				$ 170.53
18	8054062		Cover, Access		Appelez-nous	-
19	8274152		Baffle, Radiant		Appelez-nous	-
20	WP3196170		Screw   (Replaces: 3196170)				$ 7.19
	N/A		Miscellaneous		Appelez-nous	-
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
	285006		Paint, Pressurized Spray 12 Oz.) (superior Black)				$ 57.04
	350942		Paint, Pressurized Spray (12 Oz.) (primer, White)   (Replaces: 206922)				$ 89.66
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	978883		Paint, Bulk (1 Qt.) (almond (uncut))		Appelez-nous	-
	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
	8273888A		Anti-tip Kit   (Replaces: 3176830)				$ 31.07
	8523428		Harness, Main		Appelez-nous	-
	8524207		Harness, Bake/broil				$ 52.99
	8523599		Harness, Electrode (cooktop-spark)				$ 139.59
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	3196896		Clamp, Cable		Appelez-nous	-
	3196696		Clamp, Cable		Appelez-nous	-
	16515		Clip, Harness   (Replaces: 313438)				$ 19.55
	3400964		Clip, Wire   (Replaces: 3196520)				$ 84.76
	3195927		Tie,wire		Appelez-nous	-
	814381		Pin Kit-dr Removal				$ 8.59
	8183759		Pad, Grate (kit Of 4)				$ 11.97
	350956		Paint, Pressurized Spray (12 Oz.) (almond)				$ 51.44
	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
	8316781		Wire, Black 14 Ga. 150 C		Appelez-nous	-
	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
	242831		Wire (14 Ga. 200 C Red)				$ 342.23
	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 83.07
	261582		Grease		Appelez-nous	-
	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 55.47
	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 55.47
	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29

    View Diagram in Separate Window       Print Part List
