SELECT A DIAGRAM
01 - Cooktop Parts
02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts

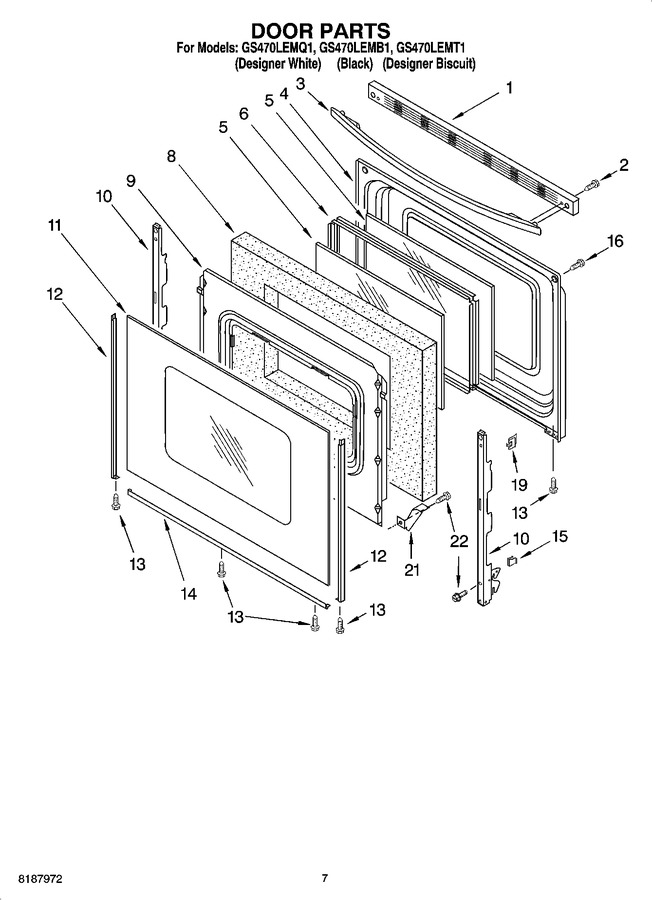

05 - Door Parts
06 - Drawer & Broiler Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3196819 | Trim, Top (black) |
|
- | |||||
| 1 | 8522433 | Trim, Top (white) |
|
- | |||||
| 1 | 8522434 | Trim, Top (biscuit) |
|
- | |||||
| 2 | WP3196164 | Screw (Replaces: 3196164) |
|
Immediately | $ 8.69 | ||||
| 3 | WPW10202217 | Handle, Door (black) (Replaces: 3195922) |
|
$ 257.76 | |||||
| 3 | WPW10202216 | Handle, Door (white) (Replaces: 8522444) |
|
$ 353.02 | |||||
| 3 | 8522445 | Handle, Door (biscuit) |
|
- | |||||
| 4 | 3186292 | Liner, Door |
|
- | |||||
| 5 | WP8053948 | Glass, Inner (2) (Replaces: 8053948) |
|
$ 178.28 | |||||
| 6 | WPW10316950 | Frame, Glass (Replaces: 3186289) |
|
Immediately | $ 84.86 | ||||
| 8 | WPW10278991 | Insulation, Door (Replaces: 8272618) |
|
Immediately | $ 96.54 | ||||
| 9 | W11539580 | Retainer, Insul. (Replaces: 3186297) |
|
$ 221.30 | |||||
| 10 | WP8053807 | Hinge, Door (Replaces: 8053807) |
|
$ 90.81 | |||||
| 11 | WPW10118455 | Glass, Outer Door (black) (Replaces: 9756414) |
|
Immediately | $ 316.86 | ||||
| 11 | 9756416 | Glass, Outer Door (biscuit) |
|
- | |||||
| 11 | WPW10118454 | Glass, Outer Door (white) (Replaces: 9756415) |
|
$ 309.44 | |||||
| 12 | WP8523172 | Trim, Door Side (white L.h.) (Replaces: 8523172) |
|
Immediately | $ 69.93 | ||||
| 12 | WP8523167 | Trim, Door Side (biscuit R.h.) (Replaces: 8523167) |
|
$ 113.43 | |||||
| 12 | WP8523173 | Trim, Door Side (biscuit L.h.) (Replaces: 8523173) |
|
$ 117.65 | |||||
| 12 | WP8523166 | Trim, Door Side (white R.h.) (Replaces: 8523166) |
|
Immediately | $ 84.23 | ||||
| 12 | W10761014 | Trim, Door Side (black R.h.) (Replaces: 8523165) |
|
Immediately | $ 72.96 | ||||
| 12 | W10761018 | Trim, Door Side (black L.h.) (Replaces: 8523171) |
|
Immediately | $ 53.77 | ||||
| 13 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.19 | ||||
| 14 | WP8523178 | Trim, Lower Door (biscuit) (Replaces: 8523178) |
|
$ 154.07 | |||||
| 14 | WP8523177 | Trim, Lower Door (black) (Replaces: 8523177) |
|
Immediately | $ 157.96 | ||||
| 14 | W11594186 | Trim, Lower Door (white) (Replaces: 8523175) |
|
Immediately | $ 58.45 | ||||
| 15 | 3196925 | Clip, Door Stop (2) |
|
$ 9.06 | |||||
| 16 | WP179051 | Screw (Replaces: 3196161) |
|
Immediately | $ 7.96 | ||||
| 19 | 3196025 | Clip, Glass (6) |
|
$ 20.10 | |||||
| 21 | 3196794 | Bracket, Window (2) |
|
$ 24.34 | |||||
| 22 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.19 |
