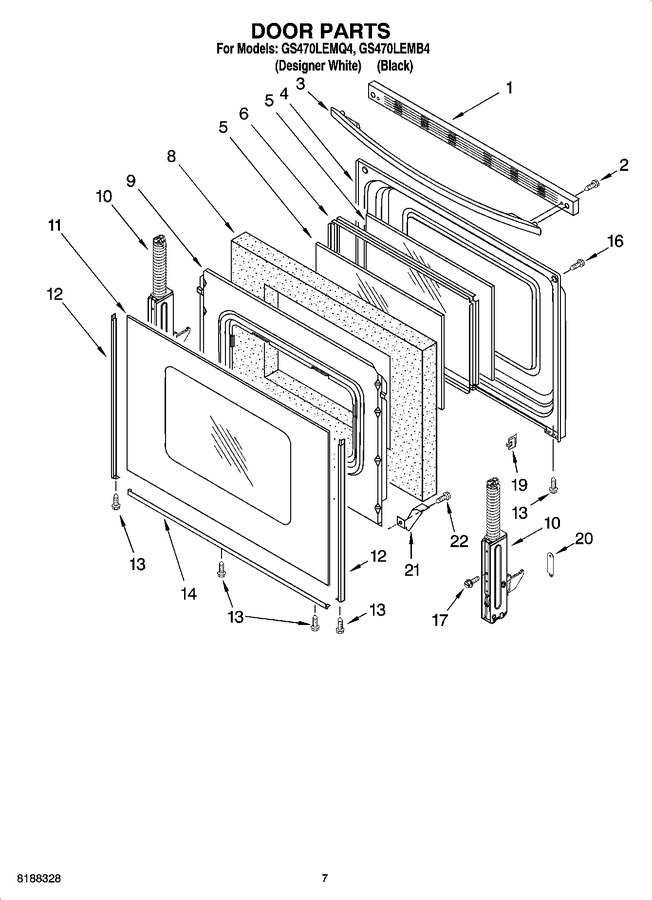

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop Parts
02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer & Broiler Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10016380 | Trim, Top (black) |
|
$ 80.76 | |||||
| 1 | W10016370 | Trim, Top (white) |
|
$ 79.85 | |||||
| 2 | WP3196164 | Screw (Replaces: 3196164) |
|
Immediately | $ 11.03 | ||||
| 3 | WPW10202217 | Handle, Door (black) (Replaces: 3195922) |
|
$ 270.65 | |||||
| 3 | WPW10202216 | Handle, Door (white) (Replaces: 8522444) |
|
$ 370.67 | |||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 372.89 | ||||
| 5 | WP8053948 | Glass, Inner (2) (Replaces: 9758162) |
|
$ 178.28 | |||||
| 6 | WPW10316950 | Frame, Glass (Replaces: 3186289) |
|
Immediately | $ 90.09 | ||||
| 8 | WPW10278991 | Insulation, Door (Replaces: 8272618) |
|
Immediately | $ 101.37 | ||||
| 9 | W11539580 | Retainer, Insul. (Replaces: 9761357) |
|
$ 233.31 | |||||
| 10 | W10347466 | Hinge, Door (Replaces: 9761493) |
|
Immediately | $ 219.84 | ||||
| 11 | WPW10118455 | Glass, Outer Door (black) (Replaces: 9756414) |
|
Immediately | $ 332.70 | ||||
| 11 | WPW10118454 | Glass, Outer Door (white) (Replaces: 9756415) |
|
$ 324.91 | |||||
| 12 | W10761014 | Trim, Door Side (black R.h.) (Replaces: 8523165) |
|
Immediately | $ 72.96 | ||||
| 12 | W10761018 | Trim, Door Side (black L.h.) (Replaces: 8523171) |
|
Immediately | $ 53.77 | ||||
| 12 | WP8523166 | Trim, Door Side (white R.h.) (Replaces: 8523166) |
|
Immediately | $ 84.23 | ||||
| 12 | WP8523172 | Trim, Door Side (white L.h.) (Replaces: 8523172) |
|
Immediately | $ 69.93 | ||||
| 13 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| 14 | WP8523177 | Trim, Lower Door (black) (Replaces: 8523177) |
|
Immediately | $ 165.86 | ||||
| 14 | W11594186 | Trim, Lower Door (white) (Replaces: 8523175) |
|
Immediately | $ 61.37 | ||||
| 16 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 17 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 19 | 3196025 | Clip, Glass (6) |
|
$ 20.10 | |||||
| 20 | 9761517 | Clip, Door Mntg |
|
$ 48.11 | |||||
| 21 | 3196794 | Bracket, Window (2) |
|
$ 24.34 | |||||
| 22 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 |
