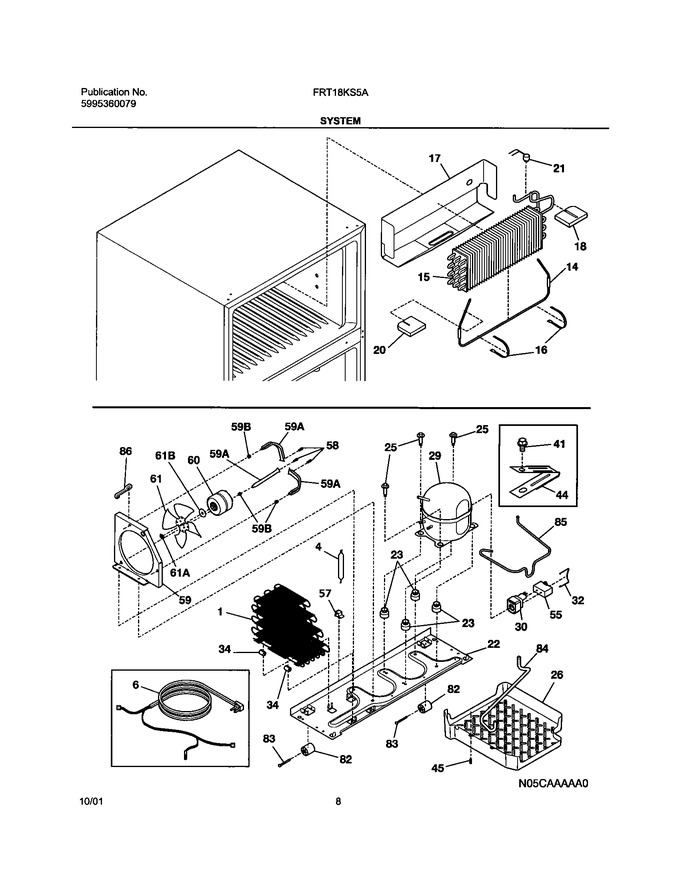

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	240444401		Condenser,dynamic		Appelez-nous	-
16	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 66.47
17	241801301		Trough-drain   (Replaces: 240434002)				$ 71.62
18	240362301		Insulation Block,rh		Appelez-nous	-
20	240362401		Insulation Block,lh		Appelez-nous	-
22	240330001		Plate-compr Mtg				$ 94.87
23	218513300		Grommet-compr Mtg,(4)				$ 47.25
25	240491501		Screw-compressor Mtg,hex Washer Head ,1/4-28 X 1.16,shoulder,typ Cf		Appelez-nous	-
26	241920605		Pan-defrost Drain   (Replaces: 240332603)				$ 59.73
29	5304511983		Compressor,w/electricals   (Replaces: 5303918249)				$ 746.51
30	218721113		Starter-ptc		Appelez-nous	-
32	218740800		Clamp,elec Cont Mtg ,compressor				$ 72.45
34	240405201		Grommet,mounting ,rubber ,black ,holds Tube/wire,holds Tube/wire				$ 22.05
41	218897001		Screw,hex Washer Head ,8-32 X 1/4				$ 4.40
44	5303001199		Clamp				$ 73.24
45	5304455650		Screw   (Replaces: 5308016566)				$ 15.75
57	240403601		Clip-wiring Harness		Appelez-nous	-
58	240453400		Screw-cond Fan Mtr,hx Serr Wshr Hd ,8-36 X 7/16,(2)		Appelez-nous	-
59	240315501		Shroud-cond Fan				$ 65.42
82	5304418225		Roller,compressor Base ,rear ,(2)				$ 57.30
83	5304455655		Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin   (Replaces: 5303316859)			Immediately	$ 39.27
84	240359601		Tube-drain,lower				$ 88.20
85	240346201		Tube-connector,suction		Appelez-nous	-
86	240409302		Spacer-cond Tube,black				$ 74.99
59A	240346501		Bracket-support,cond Mtr ,(3)				$ 24.41
59B	240346601		Grommet-bracket,(3)				$ 19.24
61A	240453300		Nut,speed		Appelez-nous	-
61B	240453500		Grommet-silencer		Appelez-nous	-
F14	5303918208		Defrost Heater Kit			Immediately	$ 121.28
F15	5303918274		Evaporator Kit   (Replaces: 5303918250)			Immediately	$ 470.74
F21	5303918202		Thermostat-defrost,kit			Immediately	$ 22.46
F4	5303305677		Drier-filter,r134a System   (Replaces: 218944001)			Immediately	$ 35.19
F55	5304464438		Capacitor-run,220 Vac ,15 Microfarad   (Replaces: 218909901)			Immediately	$ 39.31
F6	240375301		Wiring Harness,machine Compt ,w/ Service Cord				$ 333.50
F60	240453600		Motor-condenser Fan		Appelez-nous	-
F61	240315401		Fan Blade,galv Steel ,condenser Fan				$ 169.54
NI	240385401		Wiring Harness,freezer Section				$ 73.97
NI	240396801		Clamp,tube/wiring ,nylon ,black/natural				$ 21.26
NI	218843800		Screw,hex Wshr Hd ,8-15a X 0.500		Appelez-nous	-
NI	5303918222		Hot Tube Repair Kit,service				$ 418.12
NI	240359401		Screw-fan Shroud,(2)		Appelez-nous	-
NI	5303918263		Heat Exchanger Kit,suction Line   (Replaces: 5303918207)				$ 512.40
NI	240346701		Tape-foam Seal,shroud				$ 33.08
NI	240555002		Screw,hex Washer Head ,8-32 X 0.375   (Replaces: 218897002)			Immediately	$ 14.96
NI	5308000039		Screw		Appelez-nous	-
NI	240388701		Wiring Harness,control Box			Immediately	$ 88.99

    View Diagram in Separate Window       Print Part List
