SELECT A DIAGRAM

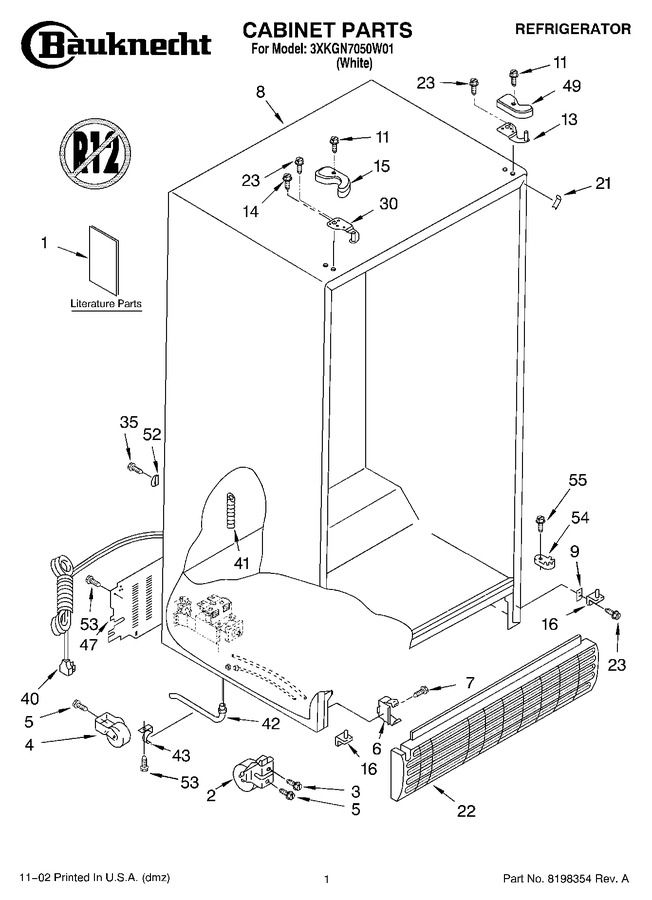

01 - Cabinet, Literature


02 - Refrigerator Liner


03 - Control


04 - Refrigerator Shelf


05 - Freezer Liner


06 - Motor And Ice Container


07 - Refrigerator Door


08 - Freezer Door


09 - Dispenser Front


10 - Unit


11 - Ice Maker


12 - Air Flow, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT2210794		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT628371		Modular Icemaker Service Sheet		Appelez-nous	-
1	LIT2255020		Literature Parts (wiring Diagram)		Appelez-nous	-
2	2174748		Front Roller (2)		Appelez-nous	-
3	W10850698		Screw   (Replaces: 3400517)				$ 12.98
4	WPW10250570		Roller (rear) (2)   (Replaces: 2196236)				$ 37.96
5	WP489427		Screw   (Replaces: 489427)				$ 7.06
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.30
7	WP489478		Screw   (Replaces: 489478)				$ 7.36
8	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
9	WP2181911		Shim   (Replaces: 2156056)				$ 31.38
11	WP8281227		Screw   (Replaces: 8281227)				$ 9.86
13	WP2203771		Hinge Top (rc)   (Replaces: 2203771)				$ 92.82
14	WP489128		Screw   (Replaces: 8281149)				$ 10.26
15	WP2203407W		Hinge Cover (fc)   (Replaces: 2203407W)				$ 19.61
16	8201707		Hinge Bottom (2)   (Replaces: 2217075)				$ 87.71
21	2196094		Filler, Wrapper		Appelez-nous	-
22	WPW10283946		Grille   (Replaces: 2198470W)				$ 135.63
23	WP489497		Screw   (Replaces: 489497)			Immediately	$ 26.18
30	WP2203770		Hinge Top (fc)   (Replaces: 2203770)				$ 90.27
35	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.54
40	2205329		Service Cord		Appelez-nous	-
41	W11566763		Drain Fitting   (Replaces: 940139)			Immediately	$ 48.11
42	WP1108438		Tube, Extension   (Replaces: 1108438)			Immediately	$ 29.61
43	WP1108439		Clip, Drain Tube   (Replaces: 1108439)				$ 10.15
47	2214571		Cover, Unit		Appelez-nous	-
49	WP2203408W		Hinge Cover (rc)   (Replaces: 2203408W)				$ 19.82
52	489348		Clamp-nylon		Appelez-nous	-
53	WPW10141645		Screw   (Replaces: 489084)				$ 7.25
54	WPW10329686		Door Closer, Lower Cam (2)   (Replaces: 2155311)			Immediately	$ 5.31
55	WP489483		Screw   (Replaces: 489483)				$ 10.27
