SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Door Parts

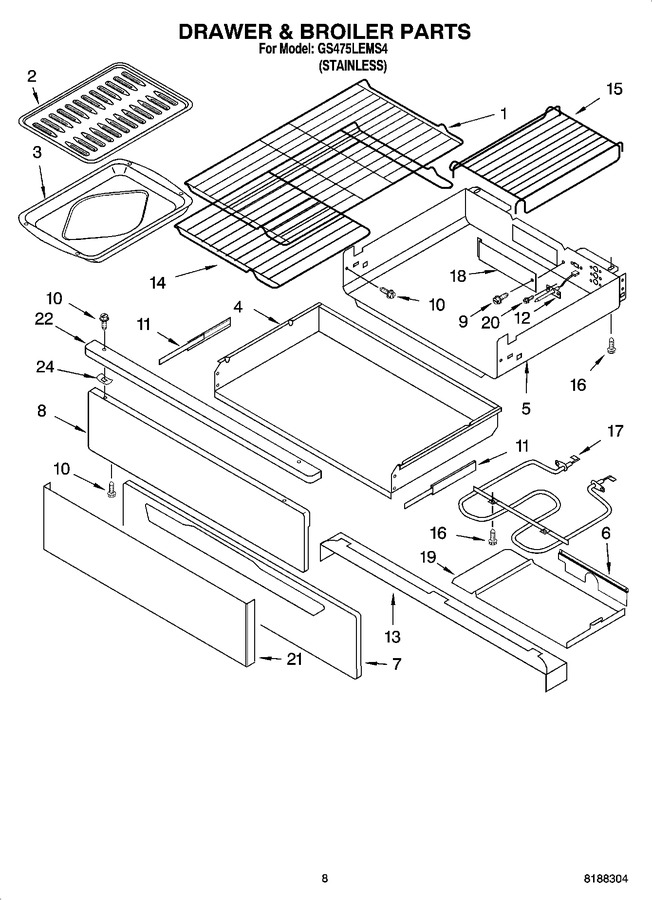

06 - Drawer & Broiler Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11520287		Rack, Oven (2)   (Replaces: 3195710)			Immediately	$ 46.84
2	WP3195996		Grill, Broiler   (Replaces: 3195996)				$ 98.65
3	WP3196076		Pan, Broiler   (Replaces: 3196076)				$ 330.36
4	8272610		Drawer, Warming				$ 141.41
5	8274150		Enclosure, Drawer		Appelez-nous	-
6	9757482		Cover, Element		Appelez-nous	-
7	W11230490		Panel, Drawer Front (black)   (Replaces: 8053338)				$ 211.59
8	8272608		Panel, Inner		Appelez-nous	-
9	WPY706189		Screw   (Replaces: 3196427)			Immediately	$ 7.55
10	WP3400832		Screw   (Replaces: 3196168)			Immediately	$ 8.18
11	9761929		Rail Assy, Drawer (left Side)				$ 60.25
11	9761930		Rail Assy, Drawer (right Side)				$ 44.45
12	WP8274149		Thermistor   (Replaces: 8274149)			Immediately	$ 192.05
13	8273414		Shield, Drawer		Appelez-nous	-
14	WP8274021		Rack, Partial   (Replaces: 8274021)				$ 159.11
15	4396927		Rack, Insert   (Replaces: 8274022)				$ 246.10
16	WP3196174		Screw   (Replaces: 3196174)			Immediately	$ 8.44
17	9758520		Element, Warming		Appelez-nous	-
18	8054062		Cover, Access		Appelez-nous	-
19	8274152		Baffle, Radiant		Appelez-nous	-
20	WP3196170		Screw   (Replaces: 3196170)				$ 7.55
21	9755797		Panel, Stainless		Appelez-nous	-
22	9757237		Handle, Drawer		Appelez-nous	-
24	WP9781235		Clip, Speed   (Replaces: 9781235)				$ 12.56
	N/A		Miscellaneous		Appelez-nous	-
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	978883		Paint, Bulk (1 Qt.) (almond (uncut))		Appelez-nous	-
	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
	W11839019		Anti-tip Kit   (Replaces: W10017440)			Immediately	$ 28.54
	9758211		Harness, Main		Appelez-nous	-
	9758531		Harness, Warming Drawer		Appelez-nous	-
	8524207		Harness, Bake/broil				$ 52.99
	8523599		Harness, Electrode (cooktop-spark)				$ 146.57
	3196896		Clamp, Cable		Appelez-nous	-
	3196696		Clamp, Cable		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
	W11244557		Clip, Screw   (Replaces: 3196173)				$ 14.29
	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
	3195927		Tie,wire		Appelez-nous	-
	814381		Pin Kit-dr Removal   (Replaces: 3196897)				$ 11.28
	8183759		Pad, Grate (kit Of 4)				$ 13.13
	350956		Paint, Pressurized Spray (12 Oz.) (almond)				$ 54.01
	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
	261582		Grease		Appelez-nous	-
	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
	242831		Wire (14 Ga. 200 C Red)				$ 342.23
	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 87.22
	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 55.47
	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 55.47
	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	285006		Paint, Pressurized Spray 12 Oz.) (superior Black)				$ 59.89
	350942		Paint, Pressurized Spray (12 Oz.) (primer, White)   (Replaces: 206922)				$ 94.14

    View Diagram in Separate Window       Print Part List
