Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP9762391 Trim, Top (black)   (Replaces: 9762391) Special Order $ 208.97

1 9761975 Trim, Top (white) Special Order $ 82.31

1 9761976 Trim, Top (biscuit) Appelez-nous -
1 9761977 Trim, Top (stainless Steel) Special Order $ 70.95

2 WP3196164 Screw   (Replaces: 3196164) In-Stock Immediately $ 11.03

3 9761979 Handle, Door (black) Appelez-nous -
3 9761981 Handle, Door (stainless Steel) Appelez-nous -
3 9761980 Handle, Door (biscuit) Appelez-nous -
3 9761978 Handle, Door (white) Appelez-nous -
4 WP9761344 Liner, Door   (Replaces: 9761344) In-Stock Immediately $ 372.89

6 WP8053948 Glass, Inner (2)   (Replaces: 9758162) Special Order $ 178.28

7 WPW10316950 Frame, Glass   (Replaces: 3186289) In-Stock Immediately $ 90.09

9 WPW10278991 Insulation, Door   (Replaces: 8272618) In-Stock Immediately $ 101.37

10 W10347464 Hinge, Door   (Replaces: 9761496) In-Stock Immediately $ 133.98

11 W11539580 Retainer, Insul.   (Replaces: 9761357) Special Order $ 233.31

12 W10761018 Trim, Door Side Left Hand (black)   (Replaces: 8523171) In-Stock Immediately $ 53.77

12 WP8523172 Trim, Door Side Left Hand (white)   (Replaces: 8523172) In-Stock Immediately $ 69.93

12 WP8523173 Trim, Door Side Left Hand (biscuit)   (Replaces: 8523173) Special Order $ 123.53

12 8184858 Trim, Door Side Left Hand (universal Silver)   (Replaces: 9762249) Special Order $ 168.85

12 W10761014 Trim, Door Side Right Hand (black)   (Replaces: 8523165) In-Stock Immediately $ 72.96

12 WP8523166 Trim, Door Side Right Hand (white)   (Replaces: 8523166) In-Stock Immediately $ 84.23

12 WP8523167 Trim, Door Side Right Hand (biscuit)   (Replaces: 8523167) Special Order $ 119.10

12 8184858 Trim, Door Side Right Hand (universal Silver)   (Replaces: 9762250) Special Order $ 168.85

13 W10010670 Glass, Outer Door (biscuit) Appelez-nous -
13 WPW10118454 Glass, Outer Door (white)   (Replaces: W10010660) Special Order $ 324.91

13 WPW10118455 Glass, Outer Door (black)   (Replaces: W10010680) In-Stock Immediately $ 332.70

14 W10491985 Screw   (Replaces: 3196160) In-Stock Immediately $ 7.55

15 3196025 Clip, Door Glass Special Order $ 20.10

16 W10777162 Screw   (Replaces: W10031780) In-Stock Immediately $ 8.26

18 WPW10031790 Screw   (Replaces: W10031790) In-Stock Immediately $ 8.74

19 W11594186 Trim, Bottom (white)   (Replaces: 8523175) In-Stock Immediately $ 61.37

19 WP8523177 Trim, Bottom (black)   (Replaces: 8523177) In-Stock Immediately $ 165.86

19 WP8523178 Trim, Bottom (biscuit)   (Replaces: 8523178) Special Order $ 161.77

21 3196794 Bracket, Window Special Order $ 24.34

22 WP3196175 Screw   (Replaces: 3196165) In-Stock Immediately $ 7.55

23 9761517 Clip, Door Mntg (2) Special Order $ 48.11

242822 Wire (14 Ga. 150 C Brown) Appelez-nous -
350956 Paint, Pressurized Spray (12 Oz.) (almond) Special Order $ 54.01

WP3196174 Screw, Grnd Harns   (Replaces: 3196174) In-Stock Immediately $ 8.44

16515 Clip, Harness   (Replaces: 313438) Special Order $ 20.53

3196896 Clip-wire Appelez-nous -
3400964 Clip, Wire   (Replaces: 3196520) Special Order $ 89.00

3196696 Clip, Harness Appelez-nous -
8523599 Harness, Wire (cooktop Spark) Special Order $ 146.57

8524207 Harness, Bake & Special Order $ 52.99

9761165 Harness, Grnd Dsi Appelez-nous -
4392901 Paint, Pressurized Spray (12oz.) (biscuit) Appelez-nous -
9762965 Harness, Main Appelez-nous -
WP72107 Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107) Special Order $ 18.81

W11839019 Anti-tip Kit   (Replaces: W10017440) In-Stock Immediately $ 28.54

241430 Foil, Aluminum Oven (18`` X 25`) Special Order $ 20.65

4392900 Paint, Bulk (1 Qt.) (biscuit) (uncut) Appelez-nous -
978883 Paint, Bulk (1 Qt.) (almond (uncut)) Appelez-nous -
799344 Paint, Bulk (1 Qt.) (white) (uncut) Special Order $ 237.46

350942 Paint, Pressurized Spray (12 Oz.) (primer, White)   (Replaces: 206922) Special Order $ 94.14

285006 Paint, Pressurized Spray 12 Oz.) (superior Black) Special Order $ 59.89

350930 Paint, Pressurized Spray (12 Oz.) White In-Stock Immediately $ 40.12

511873 Paint, Touch-up 1/2 Oz. (white Porcelain) Special Order $ 51.75

4392899 Paint, Touch-up (1/2oz.) (biscuit) In-Stock Immediately $ 27.77

72017 Paint, Touch-up 1/2 Oz. (white) In-Stock Immediately $ 12.30

WPW10208653 Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132) In-Stock Immediately $ 55.47

WPW10208653 Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514) In-Stock Immediately $ 55.47

261582 Grease Appelez-nous -
8212471 Touch-up Self-clean(1/2 Pt)   (Replaces: 242756) In-Stock Immediately $ 87.22

799832 Kit. Porcelain Repair (white) Appelez-nous -
242827 Wire (14 Ga. 150 C Yellow) Appelez-nous -
242831 Wire (14 Ga. 200 C Red) Special Order $ 342.23

242825 Wire (14 Ga. 150 C Red) Appelez-nous -
242824 Wire (14 Ga. 150 C Orange) Appelez-nous -
242823 Wire (14 Ga. 150 C Green) Appelez-nous -
242828 Wire (12 Ga. 150 C Black) Appelez-nous -
242821 Wire (14 Ga. 150 C Blue) Appelez-nous -
242830 Wire (14 Ga. 200 C Brown) Appelez-nous -
814381 Pin Kit-dr Removal Special Order $ 11.28


    View Diagram in Separate Window     Print Icon   Print Part List

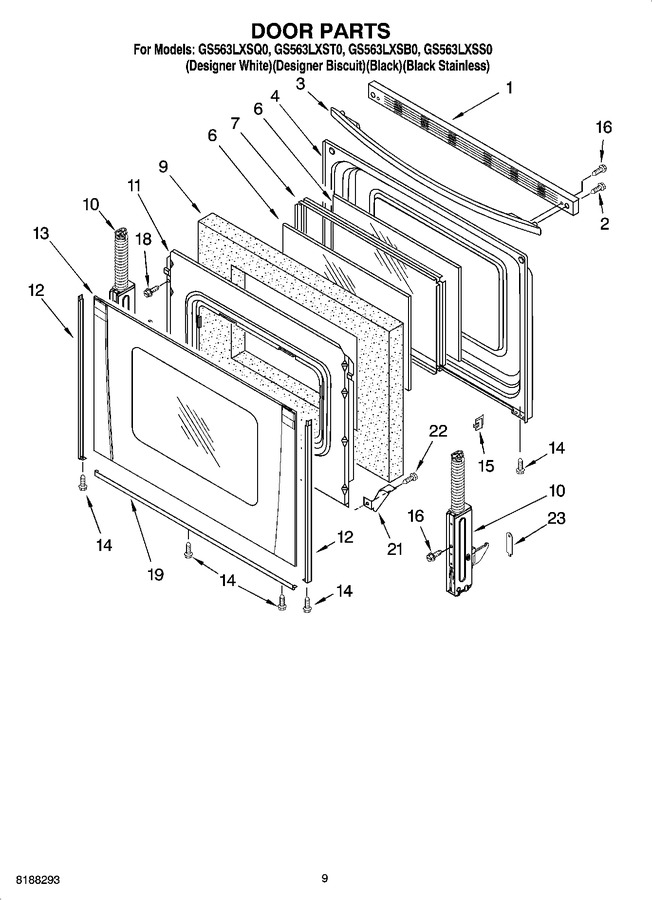

Diagram for GS563LXSB0
