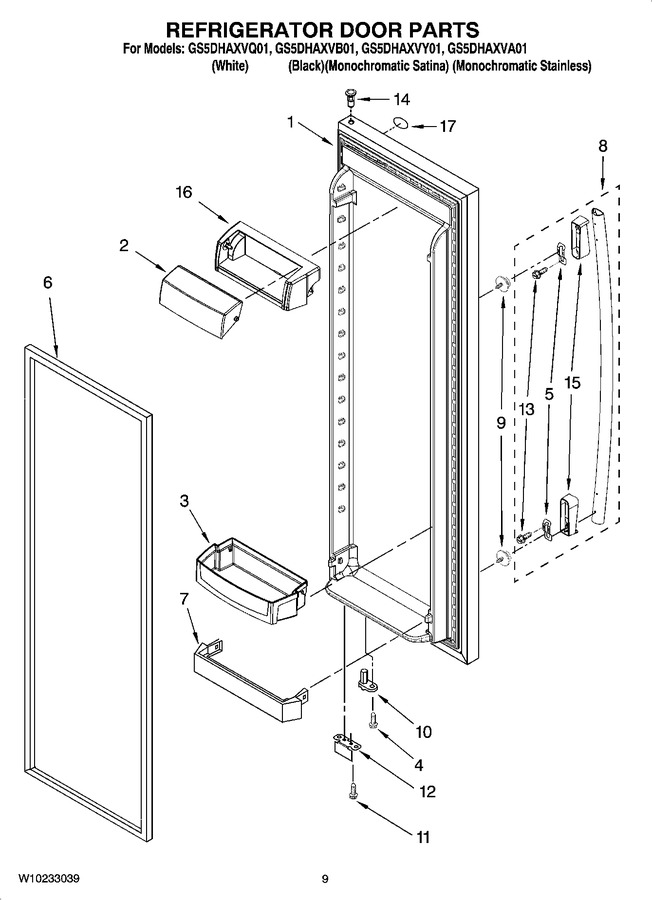

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10167186		Refrigerator Door (includes Item 6) (black)		Appelez-nous	-
1	W10169213		Refrigerator Door (includes Item 6) (mono Satina)		Appelez-nous	-
1	W10169214		Refrigerator Door (includes Item 6) (monochromatic Stainless)		Appelez-nous	-
1	W10167185		Refrigerator Door (includes Item 6) (white)		Appelez-nous	-
2	2255421		Dairy Door				$ 34.76
3	W10158506		Door Bin (3)				$ 109.63
4	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
5	WP2255411		Clip   (Replaces: 2255411)				$ 36.55
6	2159083		Door Gasket, Magnetic (black)   (Replaces: 2221313)				$ 251.49
6	WPW10136734		Door Gasket, Magnetic (apollo Grey)   (Replaces: 2326338)				$ 335.39
6	2159075		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221302)			Immediately	$ 333.00
7	WP2156022		Trivet   (Replaces: 2156022)			Immediately	$ 72.80
8	W10273556		Handle, Assy (stainless, All)   (Replaces: W10152865)				$ 294.85
8	W10210942A		Handle, Assy (white)   (Replaces: W10127803)				$ 129.53
8	W10210942A		Handle, Assy (black)   (Replaces: W10127804)				$ 129.53
9	WPW10288153		Screw, Mounting   (Replaces: W10129563)			Immediately	$ 9.65
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
11	WP489483		Screw   (Replaces: 489420)				$ 11.41
12	2200082B		Bracket, Door Stop (black)				$ 42.44
12	2200082		Bracket, Door Stop (chrome)				$ 5.83
13	W10267047		Screw   (Replaces: W10201588)				$ 13.47
14	WP2182181		Thimble-top   (Replaces: 2200087)				$ 8.15
15	W10152864		Handle, Endcap (stainless, All)		Appelez-nous	-
15	W10127814		Handle, Endcap (black)		Appelez-nous	-
15	W10127813		Handle, Endcap (white)				$ 82.43
16	2255420		Door Compartment				$ 49.86
17	2220214		Nameplate				$ 32.43

    View Diagram in Separate Window       Print Part List
