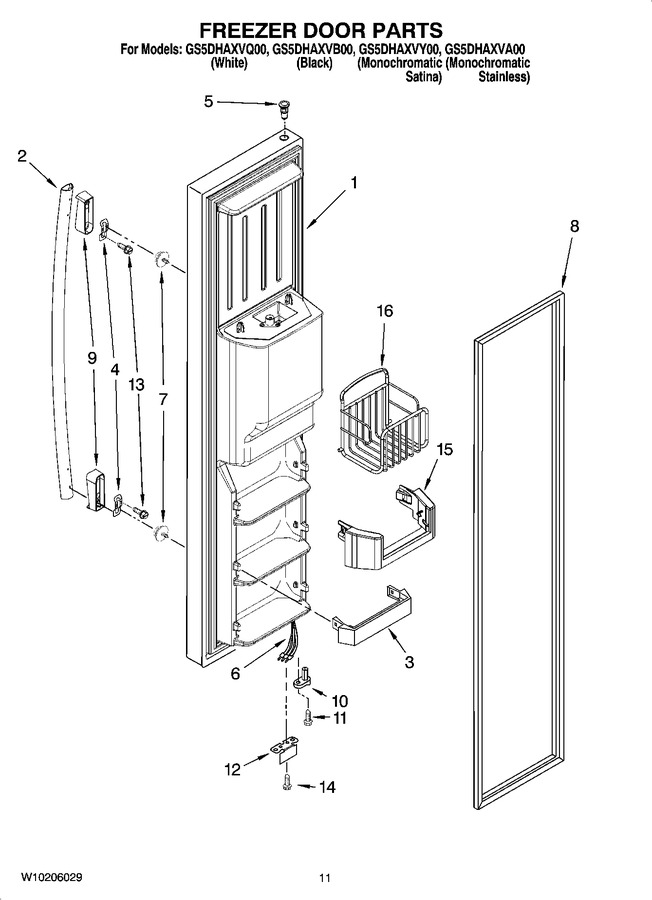

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10153457		Freezer Door (includes 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	W10153461		Freezer Door (includes 8 And Dispenser Front Parts) (mono Satina)		Appelez-nous	-
1	W10153459		Freezer Door (includes 8 And Dispenser Front Parts) (monochromatic Stainless)		Appelez-nous	-
1	W10153456		Freezer Door (includes 8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	W10210942A		Handle, Extr (white)   (Replaces: W10127808)				$ 129.53
2	W10210942A		Handle, Extr (black)   (Replaces: W10127809)				$ 129.53
2	W10273556		Handle, Extr (stainless, All)   (Replaces: W10127811)				$ 294.85
3	WP2171157		Trivet (3)   (Replaces: 2171157K)				$ 63.70
4	WP2255411		Clip   (Replaces: 2255411)				$ 36.55
5	WP2182181		Thimble-top   (Replaces: 2200086)				$ 8.15
6	W10167532		Wire Assy, Door		Appelez-nous	-
7	WPW10288153		Screw   (Replaces: W10129563)			Immediately	$ 9.65
8	W10136735		Door Gasket, Magnetic (apollo Grey)   (Replaces: 2326339)				$ 254.84
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 332.49
8	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221303)				$ 325.70
9	W10127814		Handle, Endcap (black)		Appelez-nous	-
9	W10152864		Handle, Endcap (stainless, All)		Appelez-nous	-
9	W10127813		Handle, Endcap (white)				$ 82.43
10	2323535		Door Closer, Upper Cam				$ 33.97
11	WP489483		Screw   (Replaces: 489420)				$ 11.41
12	2323534B		Bracket, Door Stop (black)		Appelez-nous	-
12	2323534		Bracket, Door Stop (chrome)		Appelez-nous	-
13	WP8533988		Screw   (Replaces: W10155511)			Immediately	$ 8.78
14	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
15	2223334		Trivet, Tilt Out				$ 25.46
16	W10142356		Bin, Tilt-out		Appelez-nous	-
