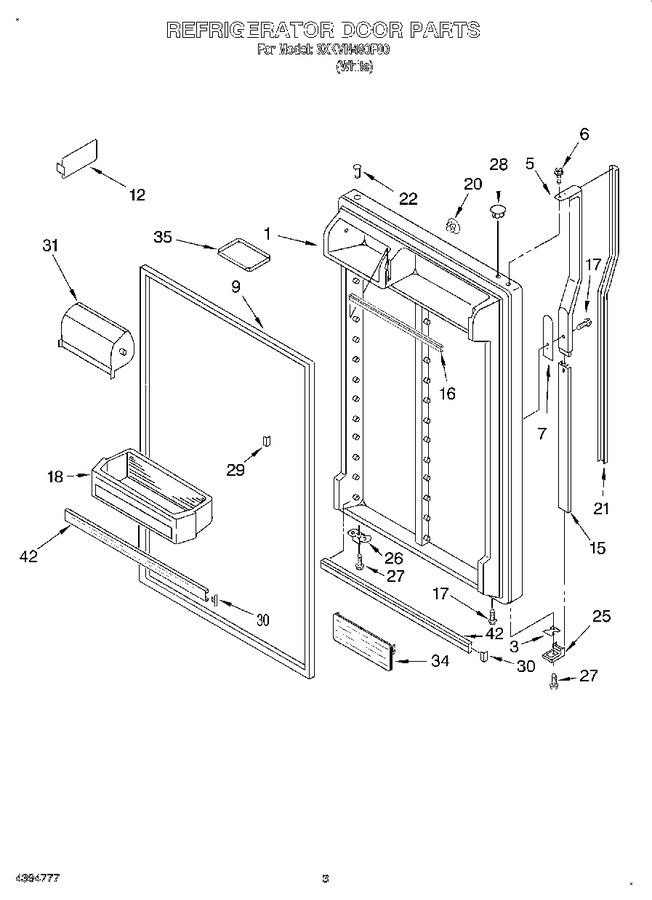

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2183898		Refrigerator Door (includes No.9, No.22)		Appelez-nous	-
3	2151813		Shim		Appelez-nous	-
5	2161508		Handle, Center				$ 111.30
6	WP488920		Screw   (Replaces: 489006)				$ 7.18
7	1107650		Spacer		Appelez-nous	-
9	2159057		Door Gasket, Magnetic (mist Beige)			Immediately	$ 168.76
12	1123293		Divider, Door Shelf		Appelez-nous	-
15	2168900		Retainer		Appelez-nous	-
16	WP2201061		Trim, Door Shelf   (Replaces: 2180027)				$ 111.89
17	WP488729		Screw   (Replaces: 487909)			Immediately	$ 7.45
18	2195394		Door Bin (3)		Appelez-nous	-
20	WP2189000		Hole Plug   (Replaces: 2189000)			Immediately	$ 6.99
21	2168896		Insert, Handle		Appelez-nous	-
22	WP2183003		Thimble   (Replaces: 2183003)				$ 7.33
25	1107236		End Cap		Appelez-nous	-
26	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
27	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.42
28	WP2212648		Hole Plug   (Replaces: 844478)			Immediately	$ 7.37
29	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 7.23
30	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 11.51
31	WP2218113		Compartment Door   (Replaces: 2171036)			Immediately	$ 45.30
34	2159303		Shelf, Flip-up		Appelez-nous	-
35	2165792		Tray, Butter		Appelez-nous	-
42	WPW10421484		Trim, Door   (Replaces: 2177260)				$ 122.63
100	2197525		Featurepak (includes 12,16, 18,29,30,34, 37,42) Also See Shelf Page.		Appelez-nous	-
