SELECT A DIAGRAM

01 - Cabinet Parts

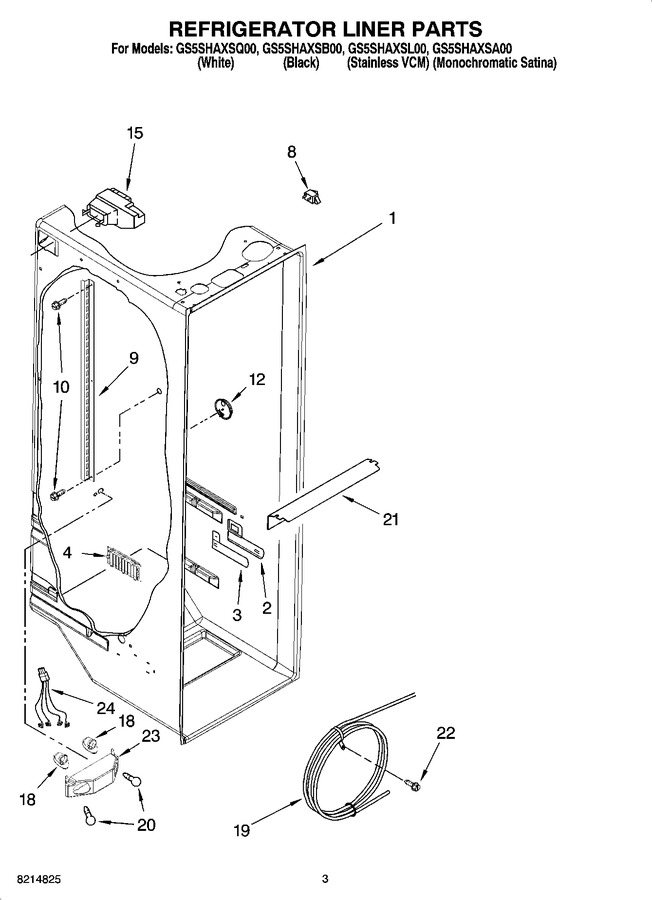

02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	2194744		Escutcheon, Meat Pan Control				$ 95.84
3	2182757		Slide Meat Pan Control				$ 75.15
4	2257741		Louver		Appelez-nous	-
8	W11384469		Switch, Rocker Arm   (Replaces: 1118894)			Immediately	$ 39.09
9	2206273		Shelf Ladder		Appelez-nous	-
10	WP489478		Screw   (Replaces: 489478)				$ 8.18
12	2261601		Door Control Asm				$ 50.22
15	WPW10151374		Air Diffuser Assembly   (Replaces: 2209753)			Immediately	$ 104.77
18	4387478		Socket   (Replaces: 2162085)			Immediately	$ 115.67
19	WP2256126		Reservoir   (Replaces: 2217199)				$ 177.29
20	W11679940		Light Bulb   (Replaces: 2255743)			Immediately	$ 11.30
21	2209769		Light Lens		Appelez-nous	-
22	488280		Screw		Appelez-nous	-
23	2256035		Bracket, Dual Crisper				$ 62.54
24	2311637		Wire Harness, Dual Crisper   (Replaces: 2256037)				$ 147.24

    View Diagram in Separate Window       Print Part List
