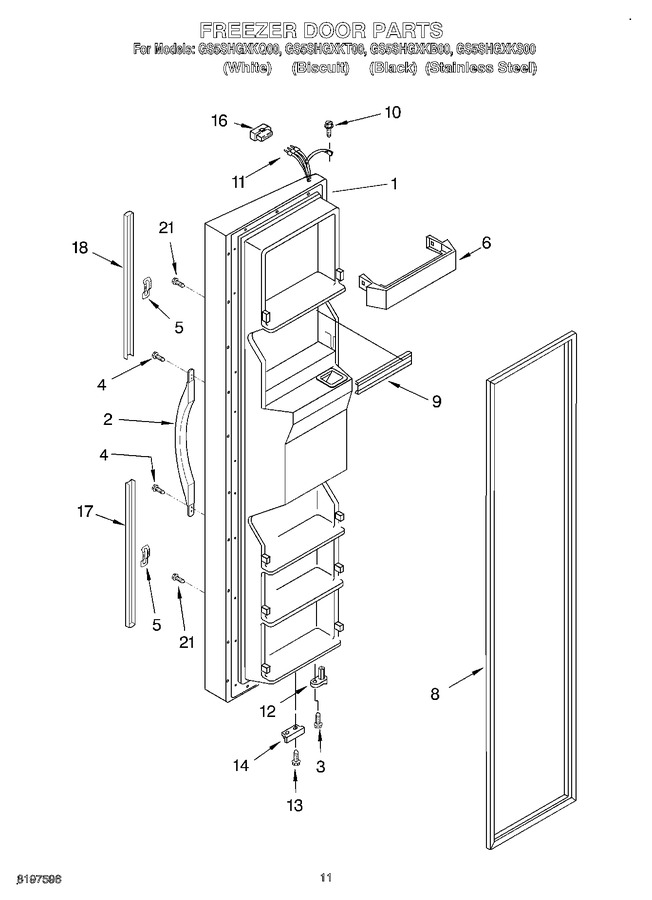

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2207042W		Freezer Door (includes Item No.8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	2207042T		Freezer Door (includes Item No.8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	2207042B		Freezer Door (includes Item No.8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	2207042SB		Freezer Door (includes Item No.8 And Dispenser Front Parts) (stainless)		Appelez-nous	-
2	2207003T		Handle, Center (biscuit)		Appelez-nous	-
2	2207003B		Handle, Center (black)		Appelez-nous	-
2	2207003W		Handle, Center (white)		Appelez-nous	-
3	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
4	WP489491		Screw   (Replaces: 489491)				$ 6.95
5	WP2195327		Clip (4)   (Replaces: 2195327)				$ 7.40
6	WP2171157		Trivet, Shelf (4)   (Replaces: 2171157)				$ 60.67
8	2159074		Door Gasket, Magnetic (service) (mist Beige)				$ 310.19
8	2159082		Door Gasket, Magnetic (service) (black)				$ 316.66
9	WPW10307490		Trim, Door Shelf   (Replaces: 2209681)			Immediately	$ 23.11
10	WP489128		Screw   (Replaces: 488500)				$ 10.88
11	2311641		Wiring Harness   (Replaces: 2206601)		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 10.87
14	2200082		Bracket, Door Stop (chrome)				$ 5.83
14	2200082B		Bracket, Door Stop (black)				$ 42.44
16	WP2154473		Connector   (Replaces: 2154473)				$ 23.65
17	2207038W		Extension, Bottom (white)		Appelez-nous	-
17	2207038B		Extension, Bottom (black)		Appelez-nous	-
17	2207038T		Extension, Bottom (biscuit)		Appelez-nous	-
18	2207037B		Extension, Top (black)		Appelez-nous	-
18	2207037T		Extension, Top (biscuit)		Appelez-nous	-
18	2207037W		Extension, Top (white)		Appelez-nous	-
21	WP3400852		Screw   (Replaces: 3400852)				$ 9.84
