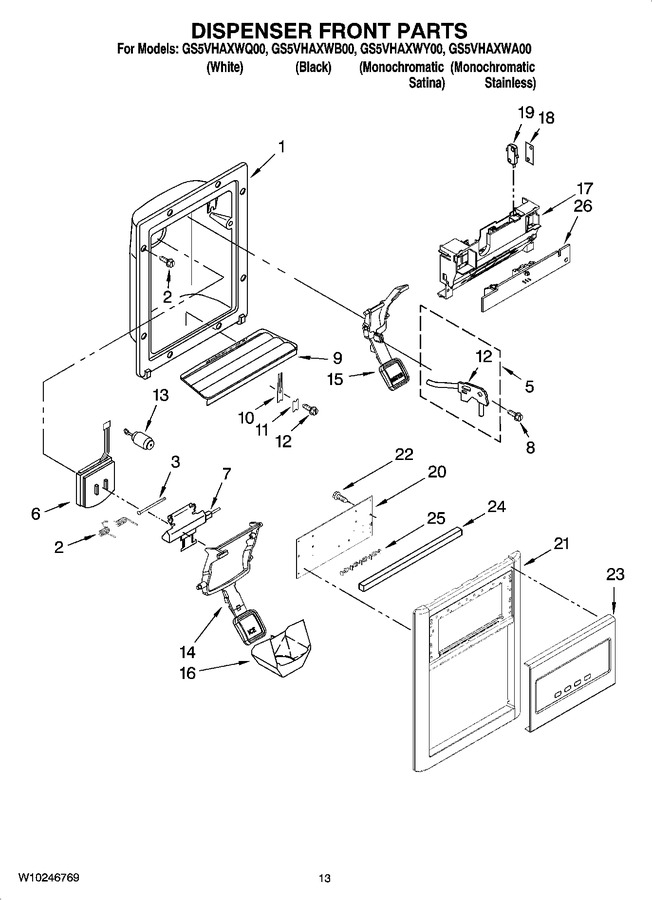

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WPW10224328		Spring, Torsion   (Replaces: W10224328)				$ 87.40
3	WP2196195		Pin, Ice Door   (Replaces: 2196195)				$ 15.31
5	8201537		Water Fitting Assy   (Replaces: 2304317)				$ 140.84
6	WP2180353		Door, Ice   (Replaces: 2180353)			Immediately	$ 26.83
7	2304355		Support, Ice Door		Appelez-nous	-
8	WP3400906		Screw   (Replaces: W10141632)				$ 9.05
9	W10139700		Grille, Disp (black)		Appelez-nous	-
9	W10171995		Grille, Disp (nickel One)		Appelez-nous	-
9	W10139699		Grille, Disp (white)		Appelez-nous	-
10	WP2194719		Spring, Lever   (Replaces: 2194719)			Immediately	$ 12.36
11	WP2195051		Strain Relief   (Replaces: 2195051)				$ 12.54
12	WP2304673		Bracket, Disp   (Replaces: 2304673)				$ 16.38
13	2205686		Dashpot, Disp		Appelez-nous	-
14	WPW10152854		Lever, Ice (black)   (Replaces: W10152854)				$ 109.00
14	WPW10152853		Lever, Ice (white)   (Replaces: W10152853)				$ 111.84
14	W10155161		Lever, Ice (apollo Grey)				$ 104.72
15	WPW10152859		Lever, Water (black)   (Replaces: W10152859)			Immediately	$ 102.82
15	W10155162		Lever, Water (apollo Grey)				$ 68.97
15	WPW10152858		Lever, Water (white)   (Replaces: W10152858)				$ 109.83
16	WP2180224		Guide, Ice   (Replaces: 2180224)			Immediately	$ 30.02
17	W10728484		Bracket, Control   (Replaces: W10206221)				$ 60.19
18	625834		Spacer, Switch				$ 7.99
19	WP2162361		Switch   (Replaces: 2162361)			Immediately	$ 28.71
20	2321751		Control, Elek				$ 220.03
21	W10171990		Bezel, Disp (mono Stainless)		Appelez-nous	-
21	W10139840		Bezel, Disp (mono Satina)		Appelez-nous	-
21	2322507B		Bezel, Disp (black)		Appelez-nous	-
21	2322507W		Bezel, Disp (white)		Appelez-nous	-
22	2006254		Screw (2)   (Replaces: 489214)				$ 13.79
23	W10123498		Fascia, Disp (mono Stainless)		Appelez-nous	-
23	W10123495		Fascia, Disp (white)		Appelez-nous	-
23	W10123497		Fascia, Disp (black)		Appelez-nous	-
23	W10123505		Fascia, Disp (mono Satina)		Appelez-nous	-
24	W10129948		Gasket, Disp		Appelez-nous	-
25	W10170416		Support, Window		Appelez-nous	-
26	2321720		Led Assy		Appelez-nous	-
