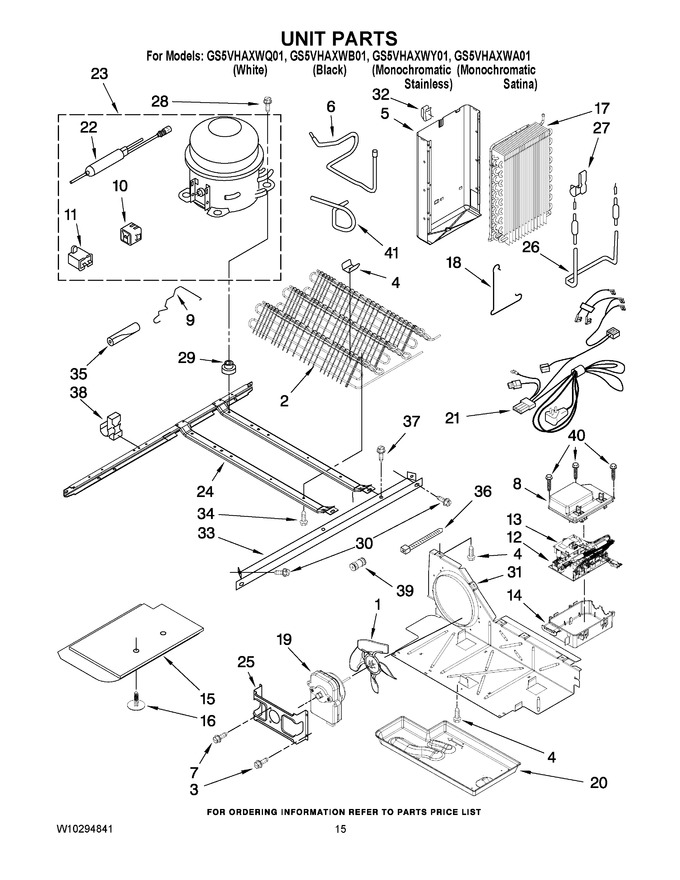

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10156818		Fan, Blade   (Replaces: 12825802)			Immediately	$ 62.11
2	2324712		Condenser Assembly				$ 308.05
3	WP489497		Screw   (Replaces: W10142235)			Immediately	$ 29.09
4	W10683556		Clip, Condenser   (Replaces: 2216914)				$ 18.46
5	W10203138		Heat Shield And Drain Pan		Appelez-nous	-
6	2205765		Tube Suction				$ 36.04
7	WP8533993		Screw   (Replaces: 8533993)				$ 10.57
8	2323188		Cover		Appelez-nous	-
9	W10204187		Clip, Retaining		Appelez-nous	-
10	WPW10189190		Start-device, Combination (start Relay And Overload)   (Replaces: W10197427)			Immediately	$ 131.29
11	WPW10662129		Capacitor   (Replaces: 2264017)			Immediately	$ 58.86
12	WPW10356039		Ctrl-elek, Main   (Replaces: W10120821)			Immediately	$ 359.09
13	WPW10210789		Ctrl-elek, Gemini   (Replaces: W10210789)				$ 344.39
14	2323186		Control, Box				$ 102.36
15	2304899		Unit Cover, Bottom		Appelez-nous	-
16	489396		Clip				$ 10.72
17	WP2188823		Evaporator   (Replaces: 2188823)			Immediately	$ 363.32
18	2161324		Clip		Appelez-nous	-
19	WP2188874		Motor, Fan   (Replaces: 2188874)			Immediately	$ 113.96
20	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
21	WPW10291106		Harness, Unit   (Replaces: 2310497)				$ 264.56
22	WPW10143759		Drier   (Replaces: W10177049)			Immediately	$ 30.78
23	W10139462		Compressor (also Order 876765 Tube Kit)   (Replaces: W10120457)				$ 636.50
24	2304904		Unit Mounting Frame		Appelez-nous	-
25	WP2181929		Bracket, Fan Motor   (Replaces: 2181929)				$ 12.31
26	WP2323198		Heater, Defrost   (Replaces: 2323198)			Immediately	$ 90.70
27	W11623163		Clip, Heater   (Replaces: 2304287)		Appelez-nous	-
28	876811		Screw   (Replaces: 489373)				$ 7.42
29	876811		Grommet (4)   (Replaces: 1100826)				$ 7.42
30	489340		Screw		Appelez-nous	-
31	W10896764		Air Baffle   (Replaces: 2196202)				$ 96.38
32	2155547		Clip, Heat		Appelez-nous	-
33	2305374		Unit Mounting Rail				$ 80.64
34	W11544659		Screw   (Replaces: 8281232)				$ 13.67
35	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 20.30
36	WPW10339879		Wire Tie   (Replaces: 2172840)				$ 7.90
37	WP489427		Screw   (Replaces: 489427)				$ 7.47
38	W10812039		Clip, Wire & Tube   (Replaces: 2326941)				$ 10.59
39	W10133008		Union		Appelez-nous	-
40	WPW10171469		Screw   (Replaces: 8533859)			Immediately	$ 11.06
41	2325479		Tube, Process		Appelez-nous	-
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access (1/2)		Appelez-nous	-
NI	978029		Valve Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 130.71
NI	876764		Valve, Access(3/16``)			Immediately	$ 91.35
NI	N/P		Refrigerant Charge (5.0 Oz. (r-134a))		Appelez-nous	-
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
NI	978026		Valve, Access (5/16``)			Immediately	$ 128.09
