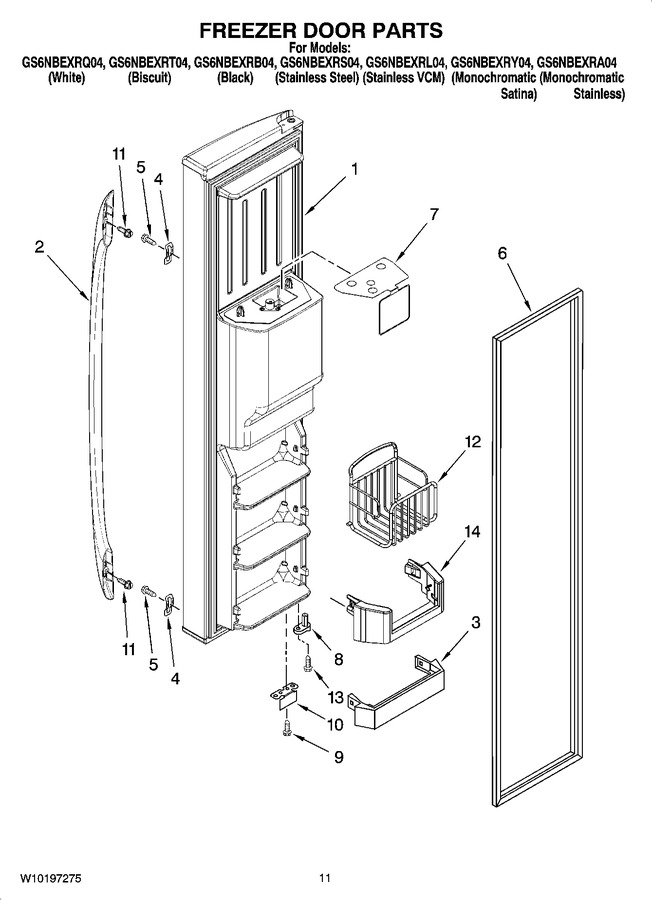

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10149603		Freezer Door (includes 6 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
1	W10149605		Freezer Door (includes 6 And Dispenser Front Parts) (stainless Vcm)		Appelez-nous	-
1	W10149639		Freezer Door (includes 6 And Dispenser Front Parts) (monochromatic Stainless)		Appelez-nous	-
1	W10149638		Freezer Door (includes 6 And Dispenser Front Parts) (monochromatic Satina)		Appelez-nous	-
1	W10149600		Freezer Door (includes 6 And Dispenser Front Parts) (white)		Appelez-nous	-
1	W10149601		Freezer Door (includes 6 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	W10149602		Freezer Door (includes 6 And Dispenser Front Parts) (black)		Appelez-nous	-
2	W10135838		Handle (universal Silver)		Appelez-nous	-
2	W10135840		Handle (black)		Appelez-nous	-
2	W10135841		Handle (biscuit)		Appelez-nous	-
2	W10135837		Handle (white)		Appelez-nous	-
3	WP2171157		Trivet   (Replaces: 2171157K)				$ 60.67
4	WP2255411		Clip   (Replaces: 2255411)				$ 34.81
5	WP489491		Screw   (Replaces: 489491)				$ 6.95
6	W10136735		Door Gasket, Magnetic (apollo Grey)   (Replaces: 2326339)				$ 254.84
6	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 316.66
6	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221303)				$ 310.19
7	2304895		Safety Barrier		Appelez-nous	-
8	WP2223752		Door Closer, Upper Cam   (Replaces: 2223752)				$ 20.15
9	WP489483		Screw   (Replaces: 489420)				$ 10.87
10	2303113		Bracket, Door Stop (chrome)		Appelez-nous	-
10	2303113B		Bracket, Door Stop (black)		Appelez-nous	-
11	8533920		Screw				$ 5.27
12	2304309		Basket, Tilt-out (2)				$ 77.01
13	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
14	2223334		Trivet, Tilt-out (2)				$ 25.46
	2305228		Tube, Water Dispenser		Appelez-nous	-
	2310084		Wire Assembly, Freezer Door		Appelez-nous	-
