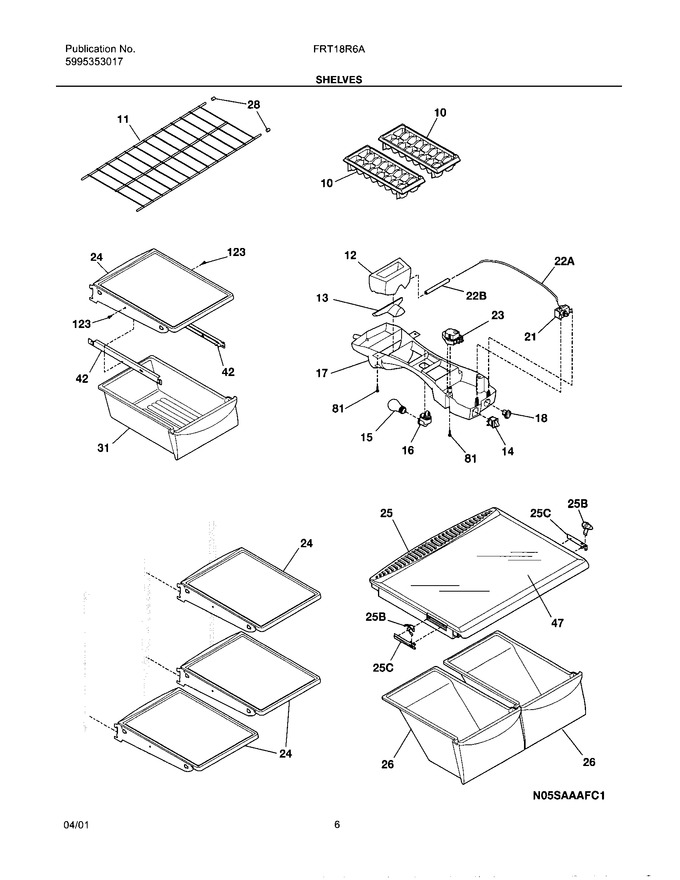

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 215667501 | Tray-ice,plastic (optiional Accessory) |
|
Immediately | $ 6.74 | ||||
| 11 | 240358002 | Shelf-freezer,full Width |
|
- | |||||
| 12 | 240362502 | Diffuser-air |
|
- | |||||
| 13 | 240362601 | Diffuser-air,bottom |
|
Immediately | $ 46.46 | ||||
| 14 | 5309918806 | Switch-light/lamp |
|
Immediately | $ 24.41 | ||||
| 15 | 316538904 | Light Bulb/lamp,a-15 ,40 W ,120 V ,miniature (Replaces: 240436701) |
|
Immediately | $ 22.75 | ||||
| 16 | 241559801 | Socket-light/lamp (Replaces: 241500701) |
|
$ 80.75 | |||||
| 17 | 240352701 | Control Box |
|
- | |||||
| 18 | 240360801 | Knob-control |
|
$ 43.95 | |||||
| 21 | 241537103 | Control-temperature (Replaces: 5304421256) |
|
Immediately | $ 80.34 | ||||
| 22 | 240468202 | Tube,insulator ,pvc ,white ,on Temp Sensor (Replaces: 240468201) |
|
$ 10.11 | |||||
| 23 | 215846602 | Timer-defrost,60 Hz ,120 V ,10 Hour/30 Min (Replaces: 215846606) |
|
Immediately | $ 31.33 | ||||
| 24 | 241616607 | Shelf-``spill-safe``,fixed (Replaces: 240355210) |
|
$ 163.12 | |||||
| 25 | 5304492617 | Damper-humidity Control (Replaces: 240361301) |
|
Immediately | $ 9.65 | ||||
| 25 | 240364787 | Cover-crisper Pan (Replaces: 240364714) |
|
Immediately | $ 134.42 | ||||
| 25 | 5304492617 | Control-humidity (Replaces: 240361201) |
|
Immediately | $ 9.65 | ||||
| 26 | 240337103 | Pan-crisper,clear ,(2) ,no Graphics |
|
Immediately | $ 164.83 | ||||
| 28 | 3201150 | End Cap-shelf,protector ,frzr Shelf |
|
$ 4.57 | |||||
| 31 | 240530811 | Pan-meat,w/o Graphics ,clear (Replaces: 240354203) |
|
Immediately | $ 150.86 | ||||
| 42 | 240356501 | Hanger-meat Pan,rh |
|
Immediately | $ 63.00 | ||||
| 42 | 240365401 | Hanger-meat Pan,white ,lh |
|
Immediately | $ 56.95 | ||||
| 47 | 240350608 | Insert-pan Cover,glass (Replaces: 240350643) |
|
Immediately | $ 50.55 | ||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 15.75 | |||||
| 123 | 215005101 | Screw-roller/hanger`8-10 X 0.438 (Replaces: 215005100) |
|
$ 16.54 | |||||
| NI | 5303299664 | Spacer-shelf |
|
$ 26.78 | |||||
| NI | 240388701 | Wiring Harness,control Box |
|
Immediately | $ 88.99 | ||||
| NI | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 18.90 | |||||
| NI | 240392601 | Seal-diffuser |
|
$ 6.57 |
