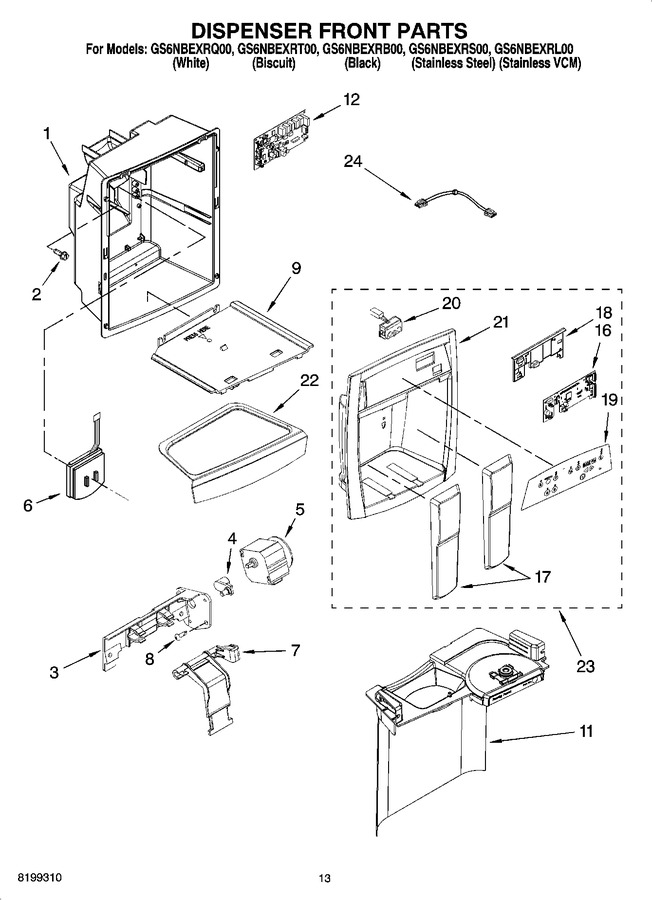

08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	WP939101		Screw (4)   (Replaces: 939101)				$ 7.88
3	WP2305202		Bracket, Motor   (Replaces: 2305202)				$ 101.60
4	WP2305242		Connector, Door Bracket   (Replaces: 2305242)			Immediately	$ 101.82
5	WPW10184813		Motor, Ice Door   (Replaces: 2305262)			Immediately	$ 108.33
6	WP2305258		Door, Ice   (Replaces: 2305258)				$ 26.09
7	WP2305204		Support, Ice Door   (Replaces: 2305204)				$ 92.63
8	489392		Screw (2)   (Replaces: 489398)				$ 14.02
9	2305213T		Grille, Slide (biscuit)		Appelez-nous	-
9	2305213W		Grille, Slide (white)		Appelez-nous	-
9	2305213B		Grille, Slide (black)		Appelez-nous	-
11	2305368W		Seperator Assembly (white)		Appelez-nous	-
11	2305368B		Seperator Assembly (black)		Appelez-nous	-
11	2305368T		Seperator Assembly (biscuit)		Appelez-nous	-
12	WP2303843		Electronic Control (core)   (Replaces: 2303946)				$ 365.39
16	2252175		Electronic Control (user Interface)		Appelez-nous	-
17	2305247CG		Pad, Ice & Water (for White Model)		Appelez-nous	-
17	2305247GM		Pad, Ice & Water (for Black, Stainless, And Stainless Vcm Models)		Appelez-nous	-
17	2305247WL		Pad, Ice & Water (for Biscuit Model)		Appelez-nous	-
18	2305219		Cover, Electronic Control				$ 92.99
20	2303841		Led Assembly		Appelez-nous	-
22	2305253T		Tray, Housing (biscuit)		Appelez-nous	-
22	2305253W		Tray, Housing (white)		Appelez-nous	-
22	2305253B		Tray, Housing (black)		Appelez-nous	-
23	2305257W		Front Cover Assembly (includes Items 16, 17, 18, 19, 20, & 21) (white)		Appelez-nous	-
23	2305257T		Front Cover Assembly (includes Items 16, 17, 18, 19, 20, & 21) (biscuit)		Appelez-nous	-
23	2305257B		Front Cover Assembly (includes Items 16, 17, 18, 19, 20, & 21) (black)		Appelez-nous	-
24	2187814		Wire Assembly, User Interface				$ 35.21
