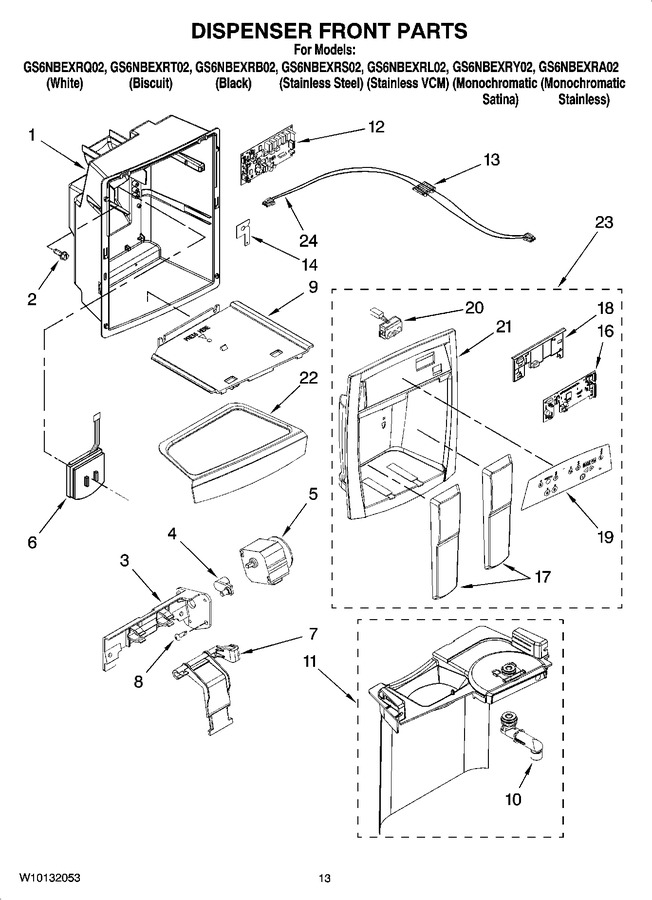

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WP939101		Screw (4)   (Replaces: 939101)				$ 7.50
3	WP2305202		Bracket, Motor   (Replaces: 2305202)				$ 96.76
4	WP2305242		Connector, Door Bracket   (Replaces: 2305242)			Immediately	$ 96.97
5	WPW10184813		Motor, Ice Door   (Replaces: 2305262)			Immediately	$ 103.17
6	WP2305258		Door, Ice   (Replaces: 2305258)				$ 24.85
7	WP2305204		Support, Ice Door   (Replaces: 2305204)				$ 88.22
8	WP4449745		Screw (2)   (Replaces: 4449745)				$ 7.49
9	2305213W		Grille, Slide (white)		Appelez-nous	-
9	2305213AP		Grille, Slide (apollo Gray)		Appelez-nous	-
9	2305213B		Grille, Slide (black)		Appelez-nous	-
9	2305213T		Grille, Slide (biscuit)		Appelez-nous	-
10	2305236		Spigot		Appelez-nous	-
11	2305458W		Separator Assembly (white)		Appelez-nous	-
11	2305458B		Separator Assembly (black)		Appelez-nous	-
11	2305458T		Separator Assembly (biscuit)		Appelez-nous	-
11	2305458AP		Separator Assembly (apollo Gray)		Appelez-nous	-
12	WP2303843		Electronic Control (core)   (Replaces: 2303843)				$ 347.99
13	2308165		Ferrite Bead		Appelez-nous	-
14	2305447		Clip, Wiring		Appelez-nous	-
16	2304163		Electronic Control (user Interface)				$ 210.32
17	2305247GM		Pad, Ice & Water (for Black, Stainless, And Stainless Vcm Models)		Appelez-nous	-
17	2305247MG		Pad, Ice & Water (for Monochromatic Stainless And Monochromatic Satina Models)		Appelez-nous	-
17	2305247WL		Pad, Ice & Water (for Biscuit Model)		Appelez-nous	-
17	2305247CG		Pad, Ice & Water (for White Model)		Appelez-nous	-
18	2305219		Cover, Electronic Control				$ 88.56
20	2303841		Led Assembly		Appelez-nous	-
22	2305253W		Tray, Housing (white)		Appelez-nous	-
22	2305253T		Tray, Housing (biscuit)		Appelez-nous	-
22	2305253B		Tray, Housing (black)		Appelez-nous	-
22	2305253US		Tray, Housing (universal Silver)		Appelez-nous	-
23	2321769W		Front Cover Assembly (includes Items 16, 17, 18, 19, 20, & 21) (white)		Appelez-nous	-
23	2321769T		Front Cover Assembly (includes Items 16, 17, 18, 19, 20, & 21) (biscuit)		Appelez-nous	-
23	2321769B		Front Cover Assembly (includes Items 16, 17, 18, 19, 20, & 21) (black)		Appelez-nous	-
23	2321769US		Front Cover Assembly (includes Items 16, 17, 18, 19, 20, & 21) (universal Silver)		Appelez-nous	-
24	2187814		Wire Assembly, User Interface				$ 35.21
