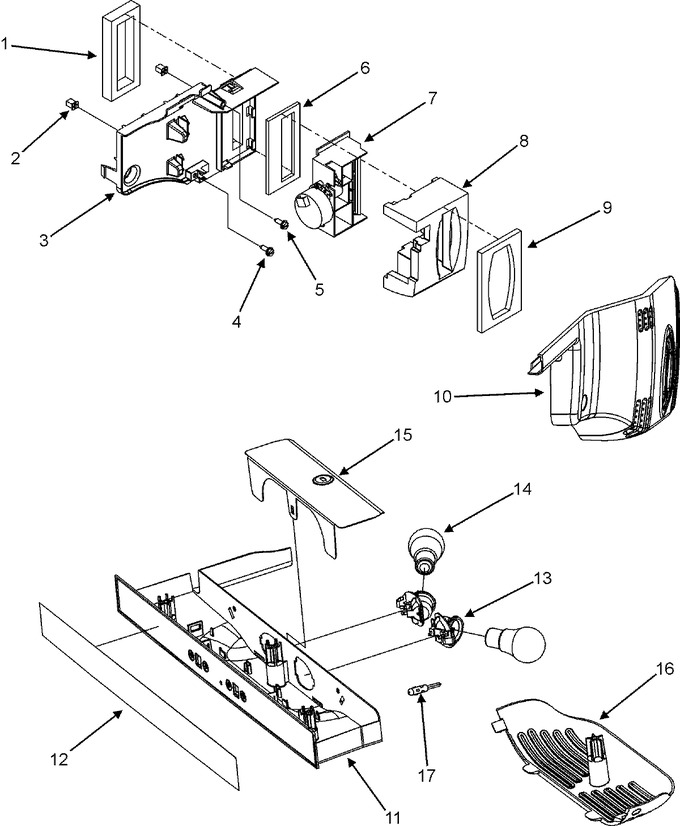

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004031		Gasket, Damper	10	Appelez-nous	-
2	M0580205		Grommet, Screw	10	Appelez-nous	-
3	67004447		Bracket, Elec Control	10	Appelez-nous	-
4	WP98165		Screw, Sm   (Replaces: 67004822)	10			$ 7.71
5	M0216539		Screw	10	Appelez-nous	-
6	12582801		Gasket, Damper	10			$ 7.62
7	67005014		Control, Damper	10	Appelez-nous	-
8	67003828		Insul, Damper	10			$ 5.51
9	12582901		Gasket, Control Cover	10			$ 5.51
10	67004400		Cover, Elec Control	10	Appelez-nous	-
11	67005884		Housing, Light	10	Appelez-nous	-
11	M0238636		Screw-sm	10	Appelez-nous	-
12	67005995		Overlay	10	Appelez-nous	-
13	W11447232		Socket, Light   (Replaces: 67005886)	10		Immediately	$ 12.48
14	WP67002552		Bulb, Light (40w-250v)   (Replaces: 67002552)	10		Immediately	$ 11.11
15	67005038		Reflector, Light	10	Appelez-nous	-
16	67004753		Lens, Ref. Light	10	Appelez-nous	-
17	12002355		Thermistor Kit   (Replaces: 12002356)	10		Immediately	$ 44.10
18	67005793		Harness, Control	10	Appelez-nous	-
