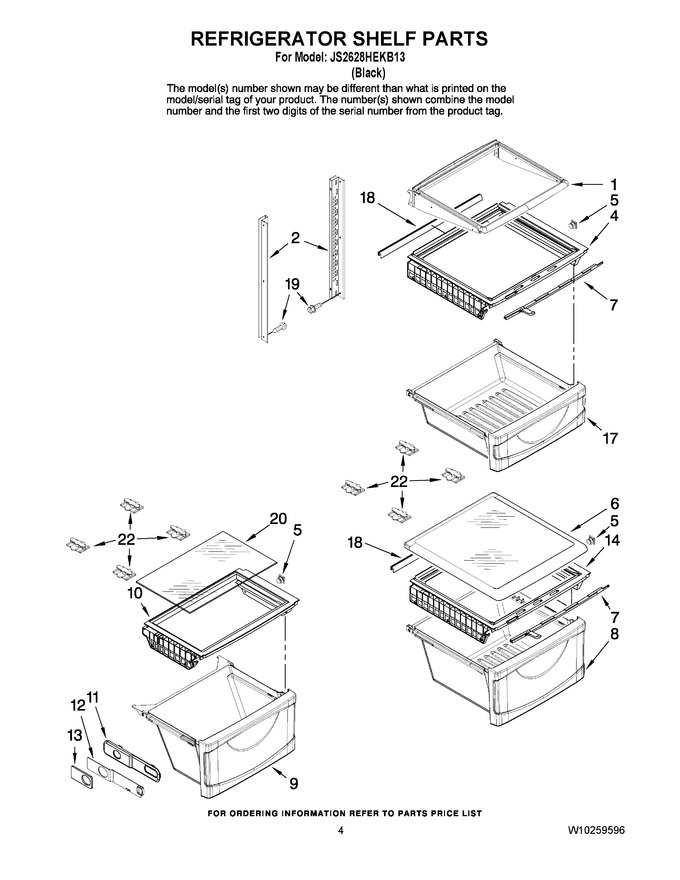

03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67005091		Shelf, Glide		Appelez-nous	-
2	67003839		Rail (2)		Appelez-nous	-
4	67004413		Frame, Crisper		Appelez-nous	-
5	WP12603701		Support, Crisper Frame (12)   (Replaces: 12603701)				$ 10.83
6	67006880		Shelf, Crisper Top		Appelez-nous	-
7	67004885		Slide, Control		Appelez-nous	-
8	67005412		Pan, Crisper (large)		Appelez-nous	-
9	67005639		Pan, Meat		Appelez-nous	-
10	67004247		Frame, Meat Shelf		Appelez-nous	-
11	67006502		Housing, Control		Appelez-nous	-
12	67004176		Slide, Temp Cont.		Appelez-nous	-
13	67004177		Gasket, Temp Cont.		Appelez-nous	-
14	67004140		Frame, Crisper (large)		Appelez-nous	-
17	67005412		Pan, Crisper (large)		Appelez-nous	-
18	67004249		Seal, Crisper Frame (rear)		Appelez-nous	-
19	67006425		Screw (6)   (Replaces: 67006400)			Immediately	$ 7.30
20	67004132		Glass, Meat Shelf		Appelez-nous	-
22	67004883		Mount, Crisper		Appelez-nous	-
