01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Control Panel Parts


06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Motor And Ice Container Parts


10 - Refrigerator Door Parts


11 - Freezer Door Parts


12 - Dispenser Front Parts


13 - Upper Unit Parts


14 - Lower Unit And Tube Parts


15 - Icemaker Parts

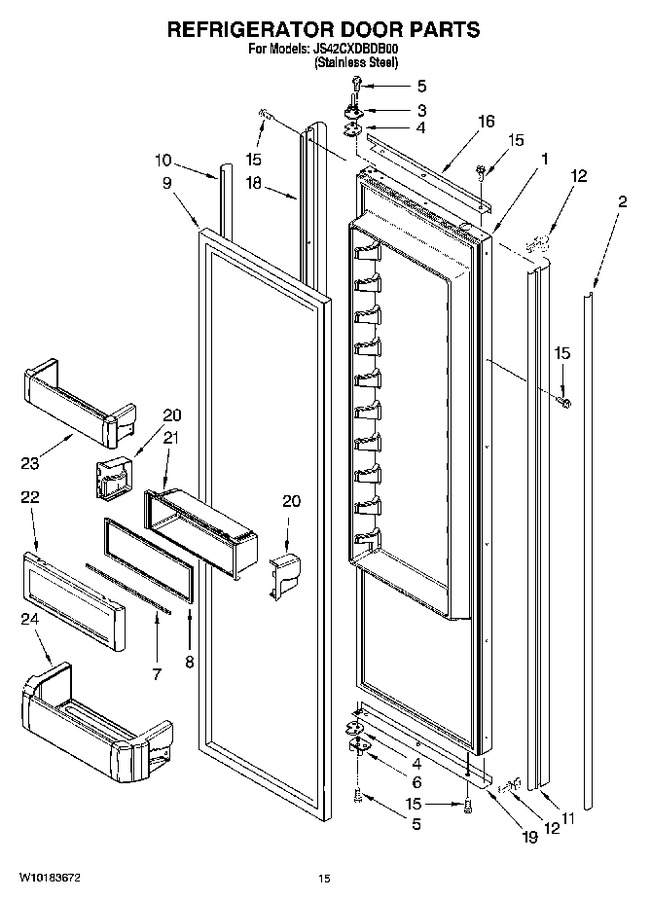

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2252330		Refrigerator Door Panel (includes Item 9)		Appelez-nous	-
2	2314003B		Trim, Screw Cover (handle Side) (black)		Appelez-nous	-
3	2252295B		Hinge Assy, Top (black)		Appelez-nous	-
4	W11673500		Spacer-door, Top & Bottom   (Replaces: 2316804)			Immediately	$ 117.33
5	W11474472		Screw   (Replaces: 489282)			Immediately	$ 7.77
6	2252293B		Hinge Assy, Btm (black)		Appelez-nous	-
7	W11448696		Rail, Lid   (Replaces: 2222796)				$ 169.16
8	W11448696		Gasket, Utility Bin   (Replaces: 2222982)				$ 169.16
9	WP2266902		Door Gasket, Magnetic   (Replaces: 2222811)				$ 297.27
10	2259448B		Trim, Screw Cover (hinge Side) (black)		Appelez-nous	-
11	2309497B		Trim-door, (handle Side) (black)		Appelez-nous	-
12	2006273		Trim, Corner (black)		Appelez-nous	-
15	W10851443		Screw, 8-15 X .500 (black)   (Replaces: 8281252)			Immediately	$ 7.32
16	2309486B		Trim-door, Top (black)		Appelez-nous	-
18	2309498B		Trim-door, Hinge Side (black)		Appelez-nous	-
19	2309492B		Trim-door, Btm (black)		Appelez-nous	-
20	WPW10323172		End Cap (right Side)   (Replaces: 2222919)				$ 7.74
21	W10323042		Bin, Utility Center   (Replaces: 2222922)				$ 201.54
22	W11553221		Door, Utility Bin   (Replaces: 2257616)			Immediately	$ 62.68
23	W10323599		Bin, Door (3)   (Replaces: 2222773)				$ 131.95
24	W10323747		Bin, Door   (Replaces: 2222770)				$ 130.82
20A	WPW10323173		End Cap (left Side)   (Replaces: 2222920)				$ 7.74

    View Diagram in Separate Window       Print Part List
