SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor & Ice Container Parts


06 - Refrigerator Door Parts

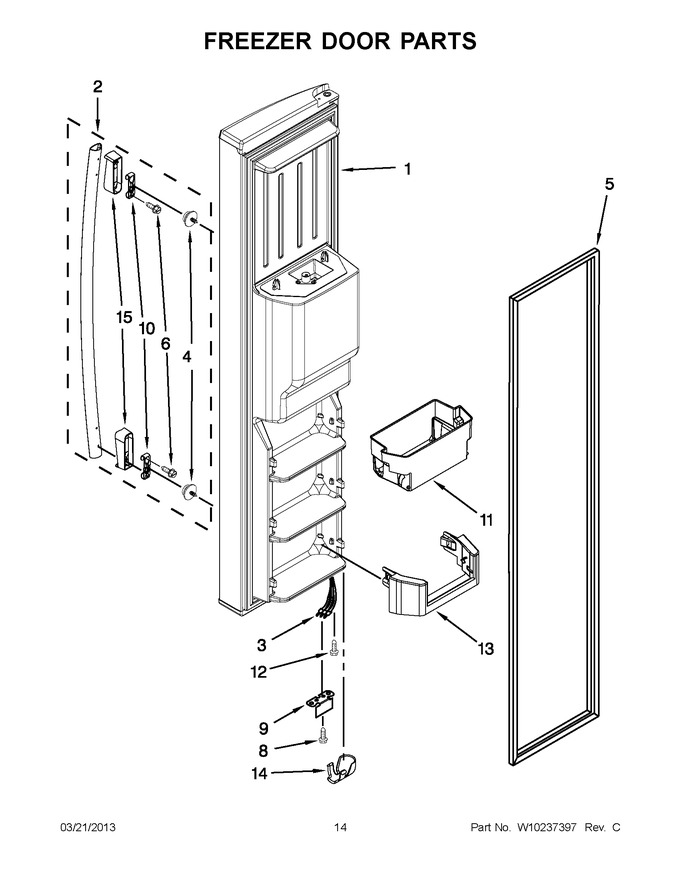

07 - Freezer Door Parts


08 - Dispenser Parts


09 - Air Flow Parts


10 - Unit Parts


11 - Icemaker Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10168054SS		Freezer Door (includes No.5 (diamond Brush Mono Stainless)		Appelez-nous	-
1	W10168054B		Freezer Door (includes No.5) (black)		Appelez-nous	-
1	W10168054T		Freezer Door (includes No.5) (biscuit)		Appelez-nous	-
1	W10168054SB		Freezer Door (includes No.5) (stainless)		Appelez-nous	-
1	W10168054W		Freezer Door (includes No.5) (white)		Appelez-nous	-
1	W10168054LG		Freezer Door (includes No.5 (mono Stainless)		Appelez-nous	-
2	W10210942A		Handle, Assy (black)   (Replaces: W10210943)				$ 123.36
2	WPW10257120		Handle, Assy (grey)   (Replaces: W10257120)				$ 56.86
2	W10210942A		Handle, Assy (white)   (Replaces: W10210942)				$ 123.36
2	W10210944A		Handle, Assy (biscuit)   (Replaces: W10210944)		Appelez-nous	-
3	W10193374		Wire Assembly, Door (heaters & Door)		Appelez-nous	-
4	W10267047		Screw   (Replaces: W10201588)				$ 12.83
5	2159074		Door Gasket, Magnetic (mist)   (Replaces: 2221303)				$ 310.19
5	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 316.66
5	W10136735		Door Gasket, Magnetic (gray)   (Replaces: 2326339)				$ 254.84
6	WPW10288153		Screw, Handle   (Replaces: W10129563)			Immediately	$ 8.69
8	WP489483		Screw   (Replaces: 489420)				$ 10.87
9	2323534B		Bracket, Door Stop (black)		Appelez-nous	-
9	2323534		Bracket, Door Stop (silver)		Appelez-nous	-
10	WP2255411		Clip, Handle Mount   (Replaces: 2255411)				$ 34.81
11	W10142356		Bin, Tile-out		Appelez-nous	-
12	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
13	2223334		Trivet				$ 25.46
14	2323581		Cover, Thimble		Appelez-nous	-
15	W10127815		Endcap, Handle (biscuit)		Appelez-nous	-
15	W10127813		Endcap, Handle (white)				$ 78.50
15	W10152864		Endcap, Handle (nickel)		Appelez-nous	-
15	W10127814		Endcap, Handle (black)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
