Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2259385 Fan Motor Special Order $ 84.74

2 WP2169142 Fan Blade   (Replaces: 2169142) In-Stock Immediately $ 43.41

3 8201663 Retainer, Fan Motor   (Replaces: 2223733) Special Order $ 159.27

4 W10203260 Gasket, Cover Special Order $ 75.47

5 W11669856 Grommet   (Replaces: 2223986) In-Stock Immediately $ 15.93

6 W11624204 Screw   (Replaces: 486194) Special Order $ 14.72

7 WP489128 Screw, Ground   (Replaces: 488500) Special Order $ 11.40

8 WPW10191429 Socket, Light (2)   (Replaces: 2223857) Special Order $ 8.80

9 488937 Clamp, Nylon Appelez-nous -
10 WPA3073101 Light Bulb   (Replaces: 2326255) In-Stock Immediately $ 12.72

11 W10170114 Scroll, Fan Appelez-nous -
12 2266801 Deflector, Air Appelez-nous -
13 W10170084 Air Duct Appelez-nous -
14 W10170112 Cover, Fan Scroll Appelez-nous -
16 W10170101 Cover, Air Outlet Appelez-nous -
17 2307751 Light Shield Special Order $ 17.27

18 W10140154 Cover, Evaporator Appelez-nous -
19 WP8281163 Screw   (Replaces: 8281163) In-Stock Immediately $ 10.70

20 2266801 Deflector, Air Duct Appelez-nous -
21 1112260 Support, Evaporator Appelez-nous -
22 WP2196483 Shelf, Stud (20)   (Replaces: 2196483) Special Order $ 10.87

23 WP3400806 Screw   (Replaces: 8281158) Special Order $ 8.10

24 W10141474 Evaporator, Cover Rail (right Side) Appelez-nous -
24 W10135766 Evaporator, Cover Rail (left Side) Appelez-nous -
25 W10183531 Gasket (2) Evaporator Cover Appelez-nous -
26 W10139189 Harness, Evap Fan (includes Item 42) Special Order $ 168.77

27 W11553819 Insulation (4)   (Replaces: 2220241) In-Stock Immediately $ 14.77

28 WP2188820 Thermistor   (Replaces: 2188820) In-Stock Immediately $ 30.85

29 WP2317844 Cover, Thermistor   (Replaces: 2317105) Special Order $ 11.38

30 2006475 Screw Appelez-nous -
31 W10175171 Ladder, Shelf Appelez-nous -
32 2259445 Support, Screw Appelez-nous -
33 WPW10160570 Defrost, Bi-metal   (Replaces: W10160570) In-Stock Immediately $ 138.98

34 W11624204 Screw   (Replaces: 486194) Special Order $ 14.72

101 W10203262 Scroll Assy, Fan Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

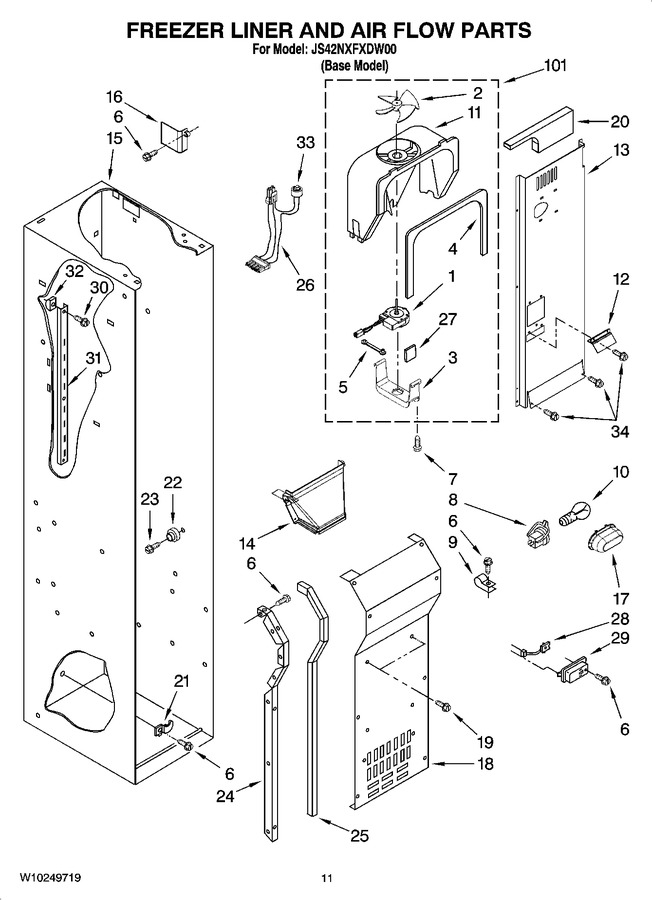

Diagram for JS42NXFXDW00
