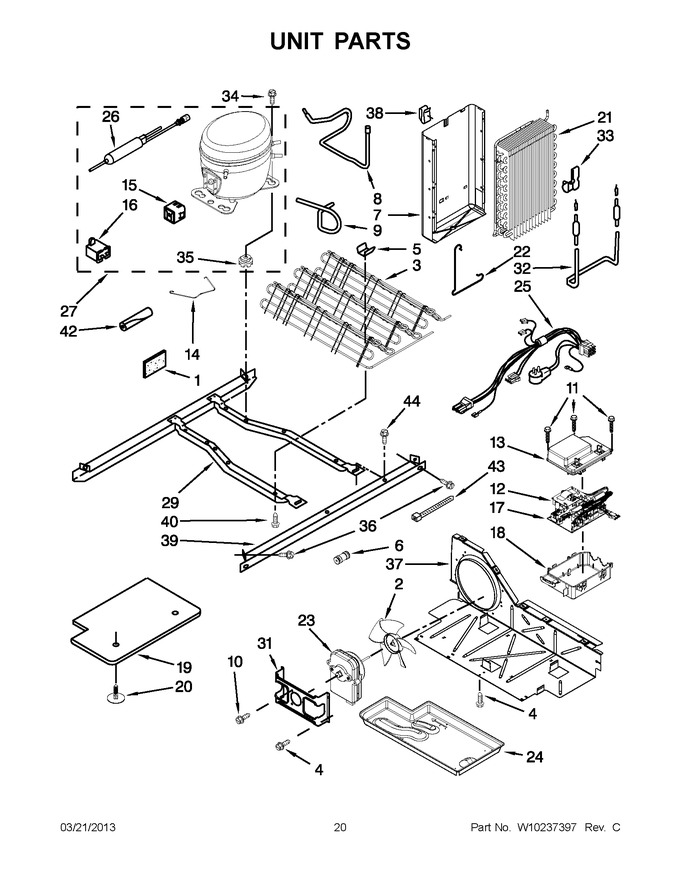

10 - Unit Parts


11 - Icemaker Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11553819		Sealer, Insulation   (Replaces: 2169104)			Immediately	$ 14.77
2	W10156818		Blade, Fan   (Replaces: 12825802)			Immediately	$ 62.11
3	2324712		Condenser Assembly				$ 323.45
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 8.38
5	W10683556		Clip, Condenser   (Replaces: 2216914)				$ 19.38
6	WPW10271543		Connector, Water Tube   (Replaces: 2320323)			Immediately	$ 35.43
7	2217194		Heat Shield And Drain Pan		Appelez-nous	-
8	2205765		Tube Suction				$ 36.04
9	2325479		Tube, Process		Appelez-nous	-
10	WP8533993		Screw   (Replaces: 8533993)				$ 11.21
11	WPW10171469		Screw   (Replaces: 8533859)			Immediately	$ 11.61
12	W10212585		Control, Electronic		Appelez-nous	-
13	2323188		Cover		Appelez-nous	-
14	W10204187		Strap, Bale		Appelez-nous	-
15	WPW10189190		Start Device, Combination (start Relay And Overload) For Service Compressor Only   (Replaces: W10197427)			Immediately	$ 131.29
16	WPW10662129		Capacitor   (Replaces: 2264017)			Immediately	$ 58.86
17	W10120820		Control, Electronic		Appelez-nous	-
18	2323186		Control Box				$ 107.48
19	2304899		Unit Cover, Bottom		Appelez-nous	-
20	489396		Clip				$ 11.26
21	WP2188823		Evaporator To Heat Loop   (Replaces: 2188823)			Immediately	$ 381.49
22	2161324		Clip, Defrost Heater		Appelez-nous	-
23	WP2188874		Motor, Condenser   (Replaces: 2188874)			Immediately	$ 113.96
24	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
25	W10139181		Harness, Unit		Appelez-nous	-
26	WPW10143759		Drier   (Replaces: W10177049)			Immediately	$ 30.78
27	W10139462		Compressor   (Replaces: W10120459)				$ 668.33
29	2304904		Frame, Unit Mounting		Appelez-nous	-
31	WP2181929		Bracket, Fan Motor   (Replaces: 2181929)				$ 12.93
32	WP2323198		Hearter, Defrost   (Replaces: 2323198)			Immediately	$ 90.70
33	W11623163		Clip   (Replaces: 2304287)		Appelez-nous	-
34	876811		Screw   (Replaces: 489373)				$ 7.79
36	489340		Bolt		Appelez-nous	-
37	W10896764		Air Baffle (3/8``)   (Replaces: 2196202)				$ 101.20
38	2155547		Clip, Heat Shield		Appelez-nous	-
39	2305374		Rail, Unit				$ 84.67
40	W11544659		Screw   (Replaces: 8281232)				$ 14.35
42	W11751592		Sleeve, Pressure Switch Hose   (Replaces: 2161302)			Immediately	$ 21.32
43	WPW10339879		Tie, Wire   (Replaces: 2172840)				$ 8.30
44	WP489427		Screw   (Replaces: 489427)				$ 7.84
NI	SF5538		Valve, Access   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access		Appelez-nous	-
NI	978029		Valve, Access				$ 93.85
NI	978030		Valve, Access Ÿ``)				$ 137.25
NI	876764		Valve, Access			Immediately	$ 95.92
NI	876811		Grommet   (Replaces: 1100826)				$ 7.79
NI	N/P		Refrigerant Charge (5.25 Ozs. (r-134a))		Appelez-nous	-
NI	WP978025		Valve, Access (Œ``)   (Replaces: 978025)			Immediately	$ 110.51
NI	978026		Valve, Access			Immediately	$ 134.49
