View Diagram in Separate Window
Print Part List

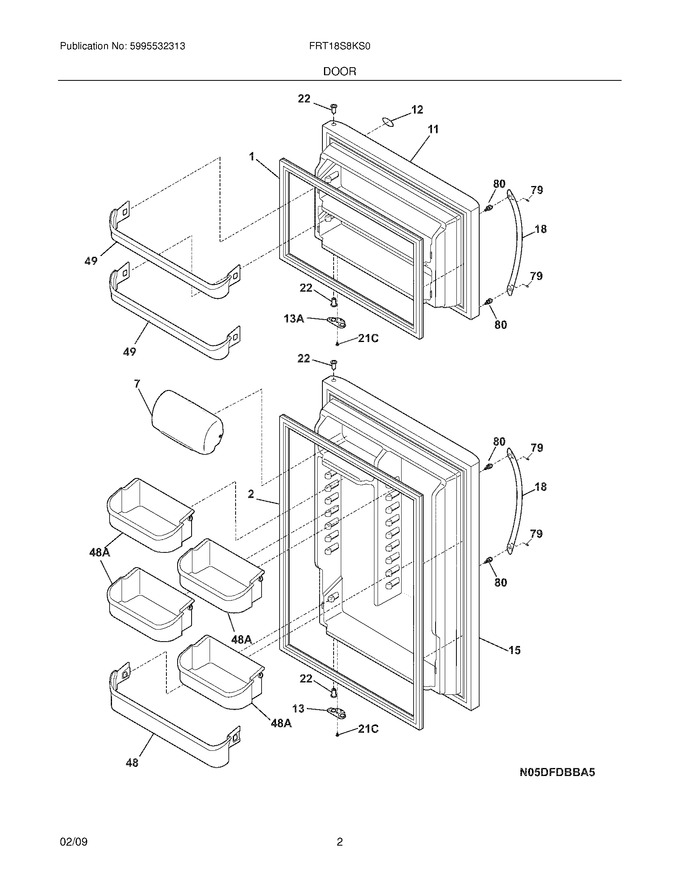

SELECT A DIAGRAM
01 - Cover
03 - Door
05 - Cabinet
07 - Shelves
09 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 240338313 | Door,dairy ,clear |
|
Immediately | $ 89.78 | ||||
| 11 | 241623301 | Door,frzr ,stainless Steel ,rh |
|
$ 437.77 | |||||
| 12 | 241808601 | Label-nameplate |
|
$ 14.10 | |||||
| 13 | 240312422 | Door Stop,black ,refr (Replaces: 240312405) |
|
$ 16.85 | |||||
| 15 | 241623401 | Door,refr ,stainless Steel ,rh |
|
$ 539.03 | |||||
| 18 | 240536819 | Handle-door,stainless Steel |
|
$ 131.40 | |||||
| 22 | 5304507147 | Bearing-hinge,black (Replaces: 240527102) |
|
Immediately | $ 8.43 | ||||
| 48 | 240338101 | Bin-door,pseudo ,bottom |
|
Immediately | $ 58.19 | ||||
| 49 | 240495804 | Bin-door,pseudo ,frzr |
|
Immediately | $ 48.10 | ||||
| 79 | 218755402 | Screw-set,10-32 X 0.375 |
|
Immediately | $ 36.67 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting |
|
Immediately | $ 20.67 | ||||
| 13A | 240312415 | Door Stop,black ,frzr (Replaces: 240312406) |
|
$ 23.63 | |||||
| 21C | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 |
|
Immediately | $ 15.75 | ||||
| 48A | 241808201 | Bin-door,gallon (Replaces: 240338202) |
|
Immediately | $ 88.86 | ||||
| F1 | 241872509 | Gasket-frzr Door,black ,magnetic |
|
Immediately | $ 182.39 | ||||
| F2 | 241872512 | Gasket-refr Door,black ,magnetic |
|
Immediately | $ 183.77 | ||||
| NI | 241601001 | Wrench,allen |
|
- |
