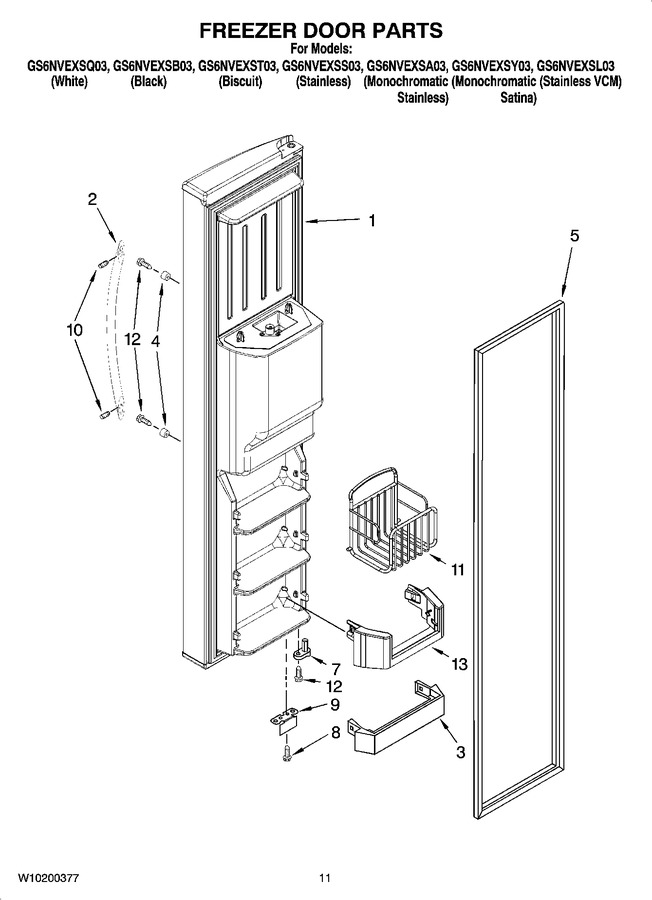

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10149621 | Freezer Door (includes 5) (stainless) |
|
- | |||||
| 1 | W10149622 | Freezer Door (includes 5) (mono Stainless) |
|
- | |||||
| 1 | W10149629 | Freezer Door (includes 5) (mono Satina) |
|
- | |||||
| 1 | W10149617 | Freezer Door (includes 5) (stainless Vcm) |
|
- | |||||
| 1 | W10149618 | Freezer Door (includes 5) (white) |
|
- | |||||
| 1 | W10149619 | Freezer Door (includes 5) (black) |
|
- | |||||
| 1 | W10149620 | Freezer Door (includes 5) (biscuit) |
|
- | |||||
| 2 | 2254600S | Handle (stainless) |
|
$ 106.71 | |||||
| 2 | 2254600T | Handle (biscuit) |
|
- | |||||
| 2 | WP2254600B | Handle (black) (Replaces: 2254600B) |
|
$ 208.77 | |||||
| 2 | WP2254600W | Handle (white) (Replaces: 2254600W) |
|
$ 235.14 | |||||
| 3 | WP2171157 | Trivet (Replaces: 2171157K) |
|
$ 60.67 | |||||
| 4 | WPW10170540 | Stud, Handle (Replaces: 2219698) |
|
Immediately | $ 8.51 | ||||
| 5 | W10136735 | Door Gasket, Magnetic (apollo Grey) (Replaces: 2326339) |
|
$ 254.84 | |||||
| 5 | 2159082 | Door Gasket, Magnetic (black) (Replaces: 2221314) |
|
$ 316.66 | |||||
| 5 | 2159074 | Door Gasket, Magnetic (mist) (Replaces: 2221303) |
|
$ 310.19 | |||||
| 7 | WP2223752 | Door Closer, Upper Cam (Replaces: 2223752) |
|
$ 20.15 | |||||
| 8 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.87 | |||||
| 9 | 2303113B | Bracket, Door Stop (black) |
|
- | |||||
| 9 | 2303113 | Bracket, Door Stop (zinc) |
|
- | |||||
| 10 | W11366418 | Screw, Set (Replaces: W10010140) |
|
Immediately | $ 15.79 | ||||
| 11 | 2304309 | Basket, Tilt-out (2) |
|
$ 77.01 | |||||
| 12 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.82 | |||||
| 13 | 2223334 | Trivet, Tilt-out (2) |
|
$ 25.46 | |||||
| 2305228 | Tube, Water Dispenser |
|
- | ||||||
| 2310084 | Wire Assembly, Freezer Door |
|
- |
