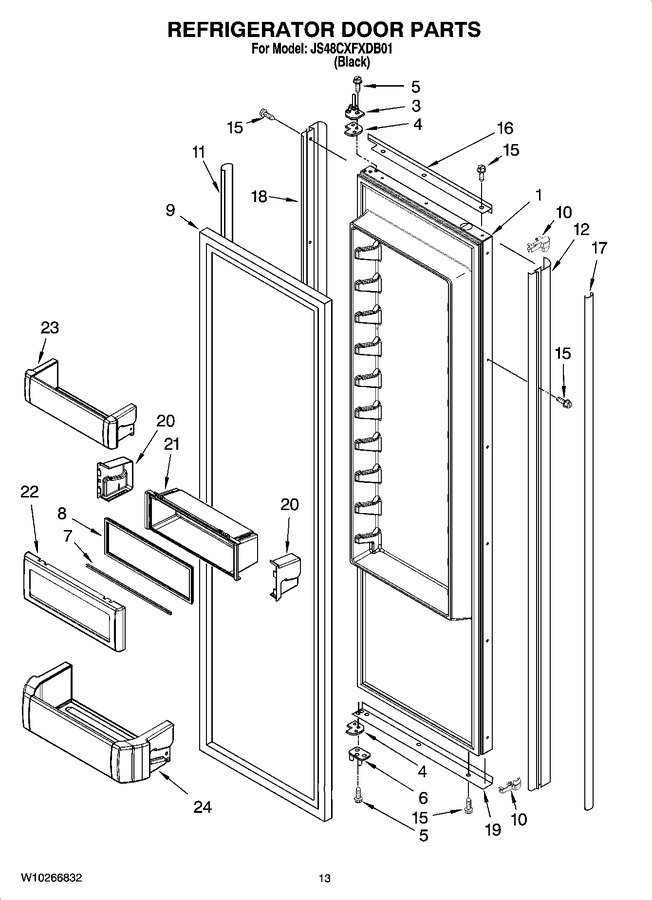

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10193491		Refrigerator Door (includes 9)		Appelez-nous	-
3	2252295		Hinge Assembly, Top				$ 51.53
4	W11673500		Spacer-door, Top & Bottom   (Replaces: 2316804)			Immediately	$ 108.07
5	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.63
6	2252293		Hinge Assembly, Bottom		Appelez-nous	-
7	W11348580		Rail, Lid   (Replaces: 2222797)			Immediately	$ 162.13
8	W11348580		Gasket, Utility Bin   (Replaces: 2222983)			Immediately	$ 162.13
9	WP2266903		Door Gasket, Magnetic   (Replaces: 2222812)			Immediately	$ 340.02
10	2207457		Trim, Corner				$ 57.12
11	2259448S		Cover, Trim (hinge Side)				$ 179.50
12	2309497S		Trim-door (handle Side)				$ 323.02
15	WP8281250		Screw, 8-15 X .500 (stainless Steel)   (Replaces: 8281250)				$ 11.42
16	2309487S		Trim-door, Top				$ 236.28
17	2314003S		Cover, Trim (hinge Side)				$ 174.63
18	2309498S		Trim-door (hinge Side)				$ 324.38
19	2309493S		Trim-door, Btm End Cap		Appelez-nous	-
20	WPW10323173		End Cap (left Side)   (Replaces: 2222920)				$ 8.60
20	WPW10323172		End Cap (right Side)   (Replaces: 2222919)				$ 8.60
21	W11348580		Bin, Utility Center   (Replaces: 2222923)			Immediately	$ 162.13
22	W11348580		Door, Utility Bin   (Replaces: 2257617)			Immediately	$ 162.13
23	W11752086		Bin, Door (3)   (Replaces: 2222774)				$ 68.19
24	W10323748		Bin, Door   (Replaces: 2222771)				$ 121.78
