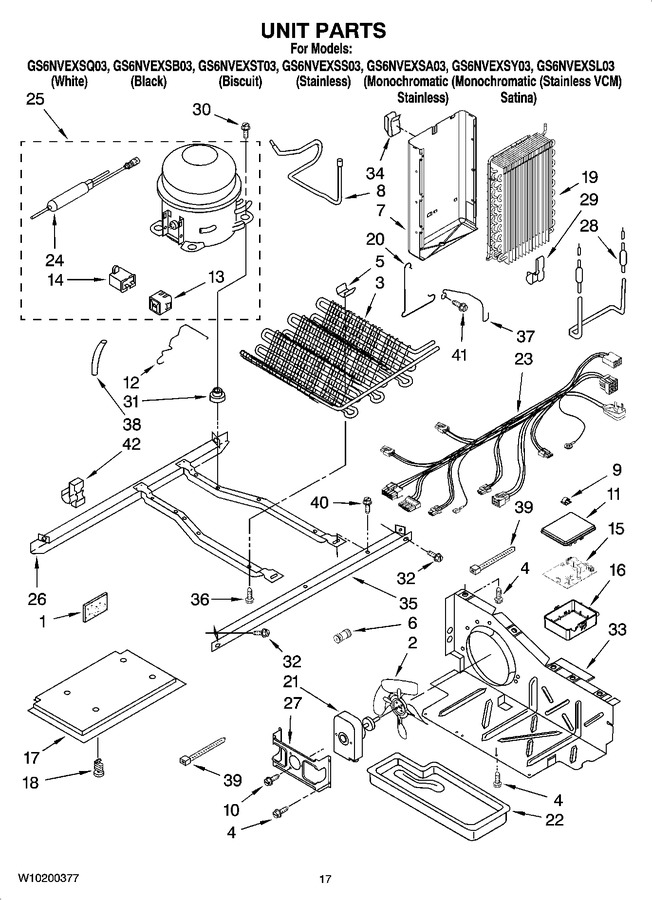

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11553819 | Insulation, Sound Dampening (Replaces: 2169104) |
|
Immediately | $ 14.07 | ||||
| 2 | W11458267 | Fan Blade (Replaces: 2225834) |
|
Immediately | $ 23.99 | ||||
| 3 | 2324712 | Condenser Assembly (Replaces: W10121484) |
|
$ 308.05 | |||||
| 4 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.83 | ||||
| 5 | W10683556 | Clip, Condenser (Replaces: 2216914) |
|
$ 18.46 | |||||
| 6 | WPW10271543 | Union (Replaces: 2320323) |
|
Immediately | $ 33.74 | ||||
| 7 | 2217194 | Heat Shield And Drain Pan |
|
- | |||||
| 8 | 2205765 | Tube Suction |
|
$ 36.04 | |||||
| 9 | WP1115374 | Clip, Wiring (Replaces: 1115374) |
|
$ 7.75 | |||||
| 10 | WP8533993 | Screw (Replaces: 8533993) |
|
$ 10.57 | |||||
| 11 | W10133000 | Cover |
|
$ 46.00 | |||||
| 12 | 2223314 | Clip, Retaining |
|
- | |||||
| 13 | WP2304885 | Start Device, Combination (start Relay And Overload) (Replaces: 2304885) |
|
$ 179.47 | |||||
| 14 | WPW10662129 | Capacitor (Replaces: 2264017) |
|
Immediately | $ 58.86 | ||||
| 15 | 2304078 | Electronic Control |
|
- | |||||
| 16 | 2255623 | Control Box |
|
$ 51.40 | |||||
| 17 | 2304899 | Unit Cover, Bottom |
|
- | |||||
| 18 | 489396 | Clip |
|
$ 10.72 | |||||
| 19 | WP2188823 | Evaporator (Replaces: 2188823) |
|
Immediately | $ 363.32 | ||||
| 20 | 2161324 | Clip |
|
- | |||||
| 21 | WP2188874 | Motor, Fan (Replaces: 2188874) |
|
Immediately | $ 113.96 | ||||
| 22 | WPW10614158 | Tray, Evaporator (Replaces: 1105523) |
|
Immediately | $ 113.18 | ||||
| 23 | 2187817 | Harness, Unit |
|
$ 130.87 | |||||
| 24 | WPW10143759 | Drier (production) (Replaces: W10177049) |
|
Immediately | $ 30.78 | ||||
| 24 | WPW10143759 | Drier (service) (Replaces: 2317845) |
|
Immediately | $ 30.78 | ||||
| 25 | W10139460 | Compressor (includes Items 13, 14, 24, & 31) (also Order 876765 Tube Kit) |
|
$ 491.28 | |||||
| 26 | 2304904 | Unit Mounting Frame |
|
- | |||||
| 27 | WP2181929 | Bracket, Fan Motor (Replaces: 2181929) |
|
$ 12.31 | |||||
| 28 | WP2323198 | Heater, Defrost (Replaces: 2323198) |
|
Immediately | $ 90.70 | ||||
| 29 | W11623163 | Clip, Heater (Replaces: 2304287) |
|
- | |||||
| 30 | 876811 | Screw (Replaces: 489373) |
|
$ 7.42 | |||||
| 31 | 876811 | Grommet (4) (production) (Replaces: 1100826) |
|
$ 7.42 | |||||
| 31 | WP4387558 | Grommet (4) (service) (Replaces: 4387558) |
|
$ 6.95 | |||||
| 32 | 489340 | Screw |
|
- | |||||
| 33 | W10896764 | Air Baffle (Replaces: 2196202) |
|
$ 96.38 | |||||
| 34 | 2155547 | Clip, Heat |
|
- | |||||
| 35 | 2305374 | Unit Mounting Rail |
|
$ 80.64 | |||||
| 36 | W11544659 | Screw (Replaces: 8281232) |
|
$ 13.67 | |||||
| 37 | 2260517 | Guard, Fan |
|
- | |||||
| 38 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 20.30 | ||||
| 39 | WPW10339879 | Wire Tie (Replaces: 2172840) |
|
$ 7.90 | |||||
| 40 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.47 | |||||
| 41 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 42 | W10169512 | Clip, Wire & Tube |
|
- | |||||
| WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 105.25 | |||||
| SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | ||||||
| 978026 | Valve, Access (5/16``) |
|
Immediately | $ 128.09 | |||||
| 876764 | Valve, Access(3/16``) |
|
Immediately | $ 91.35 | |||||
| 978030 | Valve, Access (3/4``) |
|
$ 130.71 | ||||||
| 978029 | Valve Access (5/8``) |
|
$ 93.85 | ||||||
| 978028 | Valve, Access (1/2) |
|
- |
