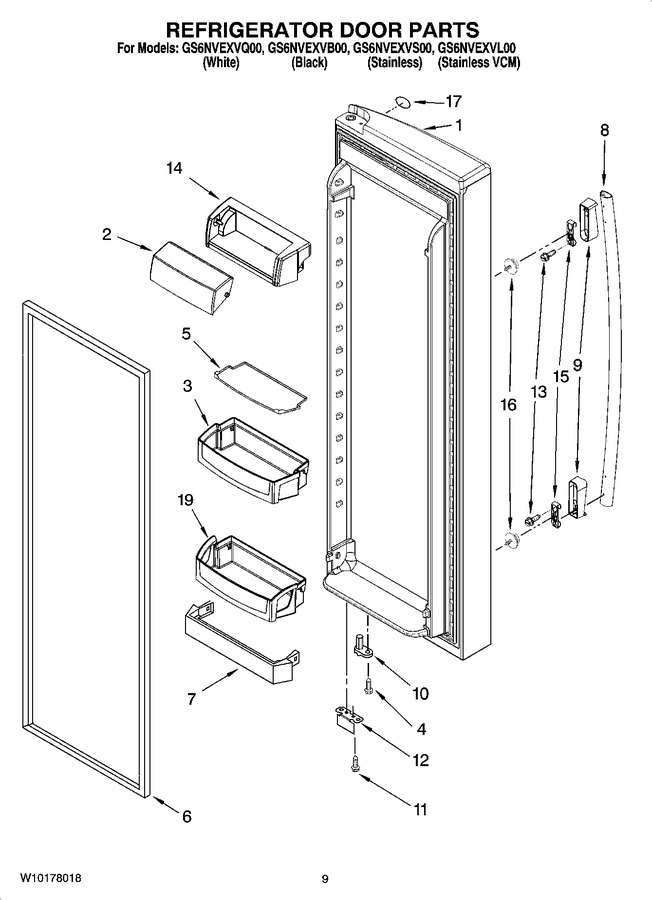

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10167186		Refrigerator Door (includes Item 6) (black)		Appelez-nous	-
1	W10167187		Refrigerator Door (includes Item 6) (stainless)		Appelez-nous	-
1	W10167188		Refrigerator Door (includes Item 6) (stainless Vcm)		Appelez-nous	-
1	W10167185		Refrigerator Door (includes Item 6) (white)		Appelez-nous	-
2	2255421		Dairy Door				$ 34.76
3	2223239K		Door Bin (2)		Appelez-nous	-
4	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
5	2223464K		Mat-bin, Blue		Appelez-nous	-
6	WPW10136734		Door Gasket, Magnetic (apollo Grey)   (Replaces: 2326338)				$ 319.42
6	2159083		Door Gasket, Magnetic (black)   (Replaces: 2221313)				$ 251.49
6	2159075		Door Gasket, Magnetic (mist)   (Replaces: 2221302)			Immediately	$ 317.14
7	WP2318736		Trivet   (Replaces: 2223727)				$ 73.28
8	W10210942A		Handle, Extr (black)   (Replaces: W10127809)				$ 123.36
8	W10273556		Handle, Extr (stainless, All)   (Replaces: W10127811)				$ 280.81
8	W10210942A		Handle, Extr (white)   (Replaces: W10127808)				$ 123.36
9	W10152864		Handle, Endcap (stainless, All)		Appelez-nous	-
9	W10127813		Handle, Endcap (white)				$ 78.50
9	W10127814		Handle, Endcap (black)		Appelez-nous	-
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
11	WP489483		Screw   (Replaces: 489420)				$ 10.87
12	2200082B		Bracket, Door Stop (black)				$ 42.44
12	2200082		Bracket, Door Stop (zinc)				$ 5.83
13	WP8533988		Screw   (Replaces: W10155511)			Immediately	$ 7.95
14	2255420		Door Compartment				$ 49.86
15	WP2255411		Clip, Mounting   (Replaces: 2255411)				$ 34.81
16	WPW10288153		Screw, Mounting   (Replaces: W10129563)			Immediately	$ 8.69
17	2220214		Nameplate				$ 32.43
19	WP2256101		Door Bin   (Replaces: 2256101)			Immediately	$ 85.16
