SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts

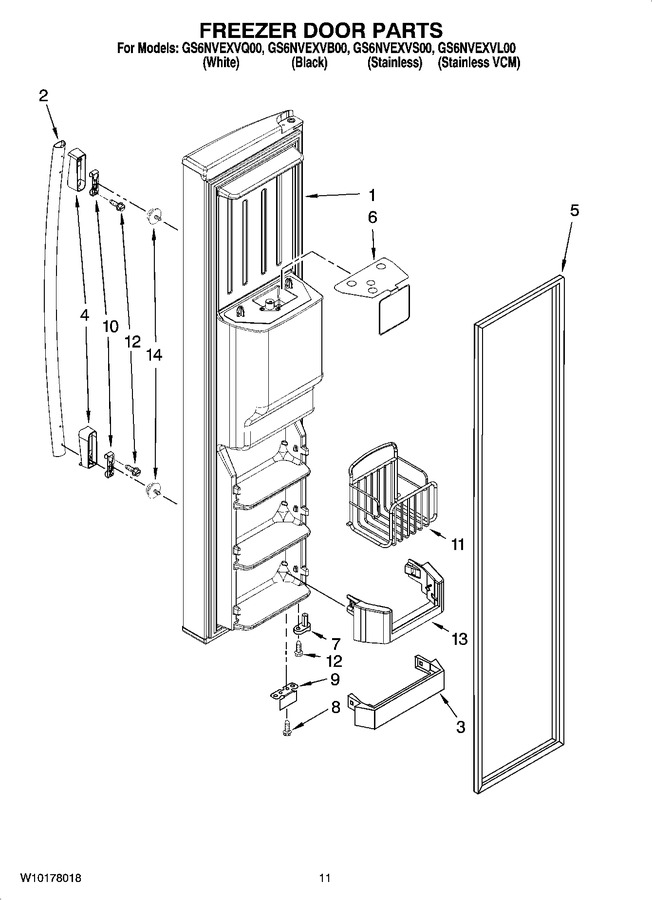

07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10167063		Freezer Door (includes 5) (stainless Vcm)		Appelez-nous	-
1	W10167060		Freezer Door (includes 5) (white)		Appelez-nous	-
1	W10167061		Freezer Door (includes 5) (black)		Appelez-nous	-
1	W10167062		Freezer Door (includes 5) (stainless)		Appelez-nous	-
2	W10210942A		Handle, Extr (black)   (Replaces: W10127809)				$ 123.36
2	W10273556		Handle, Extr (stainless, All)   (Replaces: W10127811)				$ 280.81
2	W10210942A		Handle, Extr (white)   (Replaces: W10127808)				$ 123.36
3	WP2171157		Trivet   (Replaces: 2171157K)				$ 60.67
4	W10152864		Handle, Endcap (stainless, All)		Appelez-nous	-
4	W10127813		Handle, Endcap (white)				$ 78.50
4	W10127814		Handle, Endcap (black)		Appelez-nous	-
5	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 316.66
5	2159074		Door Gasket, Magnetic (mist)   (Replaces: 2221303)				$ 310.19
6	2304895		Safety Barrier		Appelez-nous	-
7	WP2223752		Door Closer, Upper Cam   (Replaces: 2223752)				$ 20.15
8	WP489483		Screw   (Replaces: 489420)				$ 10.87
9	2303113		Bracket, Door Stop (zinc)		Appelez-nous	-
9	2303113B		Bracket, Door Stop (black)		Appelez-nous	-
10	WP2255411		Clip, Mounting   (Replaces: 2255411)				$ 34.81
11	2304309		Basket, Tilt-out (2)				$ 77.01
12	WP8533988		Screw   (Replaces: W10155511)			Immediately	$ 7.95
13	2223334		Trivet, Tilt-out (2)				$ 25.46
14	WPW10288153		Screw, Mounting   (Replaces: W10129563)			Immediately	$ 8.69
	2305228		Tube, Water Dispenser		Appelez-nous	-
	2310084		Wire Assembly, Freezer Door		Appelez-nous	-
