Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP2222970 Ice Bin   (Replaces: 2222970) In-Stock Immediately $ 250.15

2 W10151248 Crusher Bin Special Order $ 107.98

3 W10852517 Auger   (Replaces: W10140642) Special Order $ 148.33

4 2258220 Washer, Auger Special Order $ 8.02

5 WP1119007 Spacer, Flat (6)   (Replaces: 1119007) Special Order $ 14.07

6 2317248 Cover, Crusher Appelez-nous -
7 W10278733 Blade, Rotary   (Replaces: 2257024) Special Order $ 86.67

8 WP1119005 Spacer, Step (2)   (Replaces: 1119005) Special Order $ 11.18

9 2257020 Blade, Fixed Special Order $ 59.91

10 W10278732 Blade, Rotary   (Replaces: 2257023) Special Order $ 86.67

11 2317239 Block, Blade Special Order $ 10.92

12 489229 Roll Pin Special Order $ 46.16

13 W10278731 Blade, Rotary   (Replaces: 2257022) Special Order $ 86.54

14 489235 Washer, Plain Special Order $ 8.05

15 WP2198661 Washer, Coupling   (Replaces: 2198661) Special Order $ 10.90

16 W11629923 Coupling, Top   (Replaces: 2188918) Special Order $ 33.63

17 WP8281164 Screw   (Replaces: 8281164) Special Order $ 10.79

18 WP3400065 Screw   (Replaces: 3400065) In-Stock Immediately $ 7.74

19 2266800 Button, Bin Special Order $ 71.69

20 W10134785 Latch, Bin Special Order $ 105.68

21 WP2198608 Spring, Latch   (Replaces: 2198608) Special Order $ 7.19

22 2198671 Screw (2) Special Order $ 10.40

23 WP8281163 Screw   (Replaces: 8281163) In-Stock Immediately $ 10.19

24 WP2188919 Holder   (Replaces: 2188919) Special Order $ 7.19

25 WP2198628 Seal   (Replaces: 2198628) In-Stock Immediately $ 11.97

26 WP2318082 Drive Shaft   (Replaces: 2318030) Special Order $ 99.42

27 W11404931 Enclosure, Motor   (Replaces: 2318011) In-Stock Immediately $ 65.25

28 2315546 Dispenser, Motor Appelez-nous -
29 2318028 Cover Special Order $ 102.66

30 WP2315559 Sleeve. Coupling   (Replaces: 2315559) In-Stock Immediately $ 81.34

31 2317250 Divider Chamber Special Order $ 34.73

32 2317243 Wiper Special Order $ 84.91


    View Diagram in Separate Window     Print Icon   Print Part List

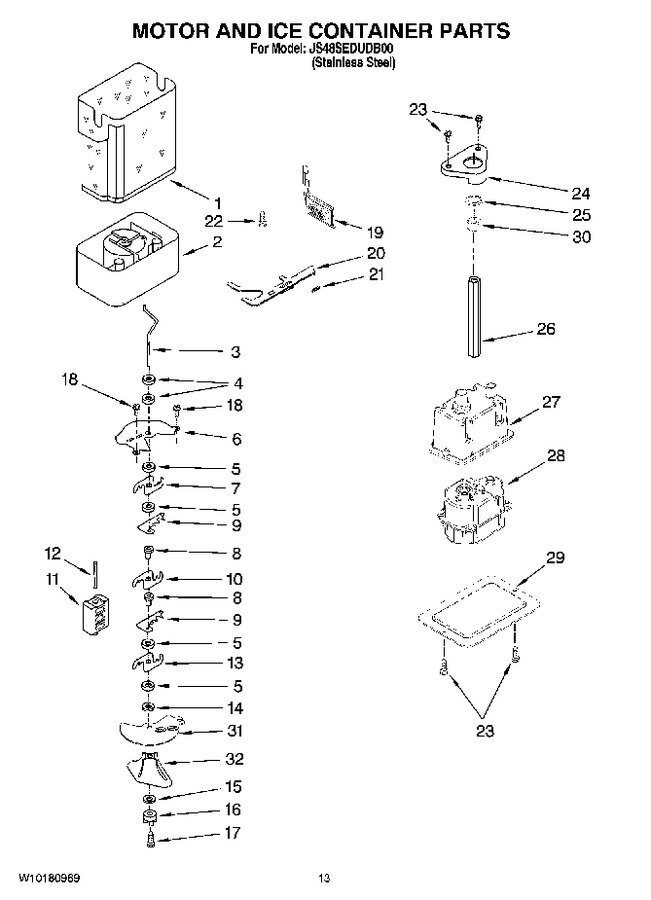

Diagram for JS48SEDUDB00
