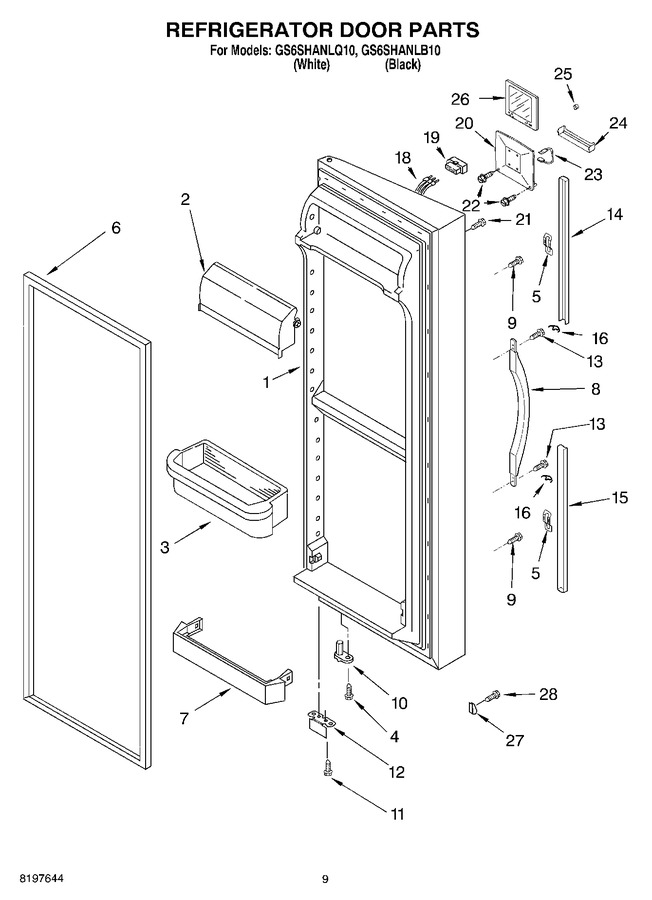

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2214261B | Refrigerator Door (includes Item No.6) (black) |
|
- | |||||
| 1 | 2214261W | Refrigerator Door (includes Item No.6) (white) |
|
- | |||||
| 2 | WP2256101 | Compartment Door (Replaces: 2177105) |
|
Immediately | $ 89.42 | ||||
| 3 | WPW10321304 | Shelf Bin (3) (Replaces: 2179607) |
|
Immediately | $ 44.73 | ||||
| 4 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 | |||||
| 5 | WP2195327 | Clip (Replaces: 2195327) |
|
$ 7.77 | |||||
| 6 | 2159083 | Door Gasket, Magnetic (black) (Replaces: 2221313) |
|
$ 251.49 | |||||
| 6 | 2159075 | Door Gasket, Magnetic (mist Beige) (Replaces: 2221302) |
|
Immediately | $ 333.00 | ||||
| 7 | WP2156022 | Shelf Bin (Replaces: 2156022) |
|
Immediately | $ 72.80 | ||||
| 8 | WP2217185B | Handle (black) (Replaces: 2217185B) |
|
$ 190.14 | |||||
| 8 | 2217185W | Handle (white) |
|
- | |||||
| 9 | WP3400852 | Screw (4) (Replaces: 3400852) |
|
$ 10.33 | |||||
| 10 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 6.39 | ||||
| 11 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 12 | 2200082B | Bracket, Door Stop (black) |
|
$ 42.44 | |||||
| 12 | 2200082 | Bracket, Door Stop (chrome) |
|
$ 5.83 | |||||
| 13 | WP489491 | Screw (4) (Replaces: 489491) |
|
$ 7.30 | |||||
| 14 | 2217187B | Trim, Door-top (black) |
|
- | |||||
| 14 | 2217187W | Trim, Door-top (white) |
|
- | |||||
| 15 | 2217186W | Trim, Door-bottom (white) |
|
- | |||||
| 15 | 2217186B | Trim, Door-bottom (black) |
|
- | |||||
| 16 | 2207010SN | Jewelry, Handle (satin Nickel) |
|
- | |||||
| 18 | 2187305 | Harness, Wire For Web Tablet Holder |
|
- | |||||
| 19 | 2169480 | Connector |
|
- | |||||
| 20 | 2213438B | Holder, Web Tablet Rear (black) |
|
- | |||||
| 20 | 2213438W | Holder, Web Tablet Rear (white) |
|
- | |||||
| 21 | WP489491 | Screw (Replaces: 489491) |
|
$ 7.30 | |||||
| 22 | WPW10272364 | Screw (Replaces: 2003478) |
|
Immediately | $ 11.36 | ||||
| 23 | 2213480 | Circuit Board, Web Tablet |
|
- | |||||
| 24 | 2213439W | Holder, Web Tablet Front (white) |
|
- | |||||
| 24 | 2213439B | Holder, Web Tablet Front (black) |
|
- | |||||
| 25 | 2213440W | Cap Screw (4) (white) |
|
- | |||||
| 25 | 2213440B | Cap Screw (4) (black) |
|
- | |||||
| 27 | W11456069 | Clamp (Replaces: 2185788) |
|
Immediately | $ 22.40 | ||||
| 28 | WP8281163 | Screw (Replaces: 8281163) |
|
Immediately | $ 10.70 |
