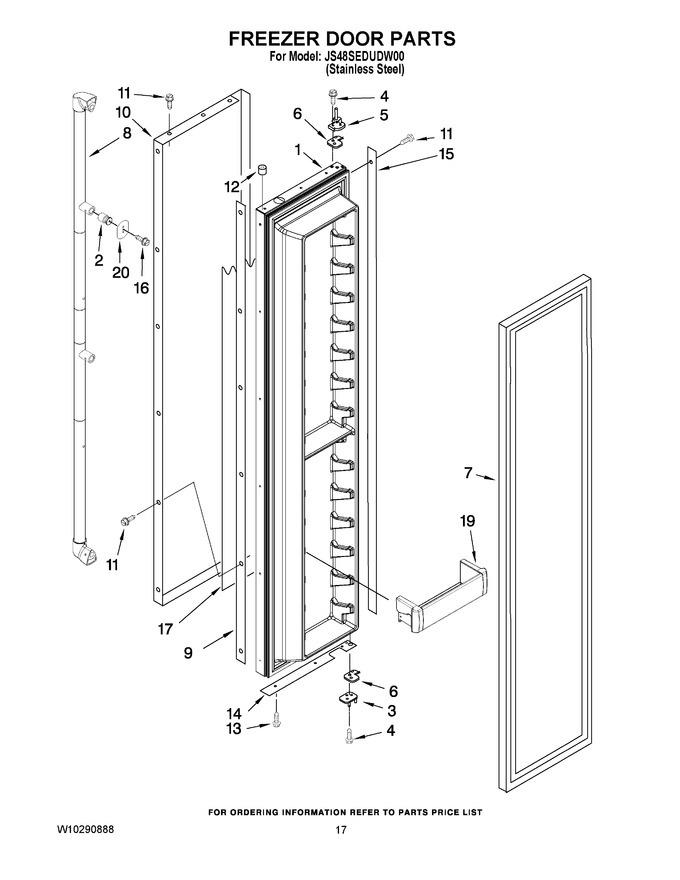

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10193495		Freezer Door (includes No.7)		Appelez-nous	-
2	WPW10168981		Stud, Handle   (Replaces: W10168981)				$ 17.69
3	W11752085		Hinge, Bottom   (Replaces: 2302879)				$ 63.07
4	W10267047		Screw   (Replaces: W10201588)				$ 13.47
5	W11724512		Hinge, Top   (Replaces: 2266854)				$ 312.50
6	W11673500		Spacer-door, Top & Bottom   (Replaces: 2316804)			Immediately	$ 130.37
7	WP2266901		Door Gasket, Magnetic   (Replaces: 2222810)				$ 369.84
8	WPW10183428		Handle, Door (stainless Steel)   (Replaces: W10183428)			Immediately	$ 337.11
9	2309060		Spacer, Door-skin (handle Side) (for Stainless Steel Model)		Appelez-nous	-
10	W10222242		Skin, Door (stainless Steel)		Appelez-nous	-
11	WP8281250		Screw (stainless Steel)   (Replaces: 8281250)				$ 11.42
12	2005433		Spacer, Door-skin (top)				$ 23.33
13	W10759522		Screw   (Replaces: 488568)				$ 8.24
14	2257386		Spacer, Door-skin (bottom)		Appelez-nous	-
15	2309056		Spacer, Door-skin (hinge Side)		Appelez-nous	-
16	WP308544		Screw, Handle   (Replaces: 308544)			Immediately	$ 8.30
17	W10159583		Filler, Door (bottom)		Appelez-nous	-
17	W10159585		Filler, Door (top)   (Replaces: W10159586)		Appelez-nous	-
19	W11590561		Bin, Door (3)   (Replaces: 2222777)				$ 94.23
20	W10127710		Plate, Door-handle			Immediately	$ 25.94
