SELECT A DIAGRAM

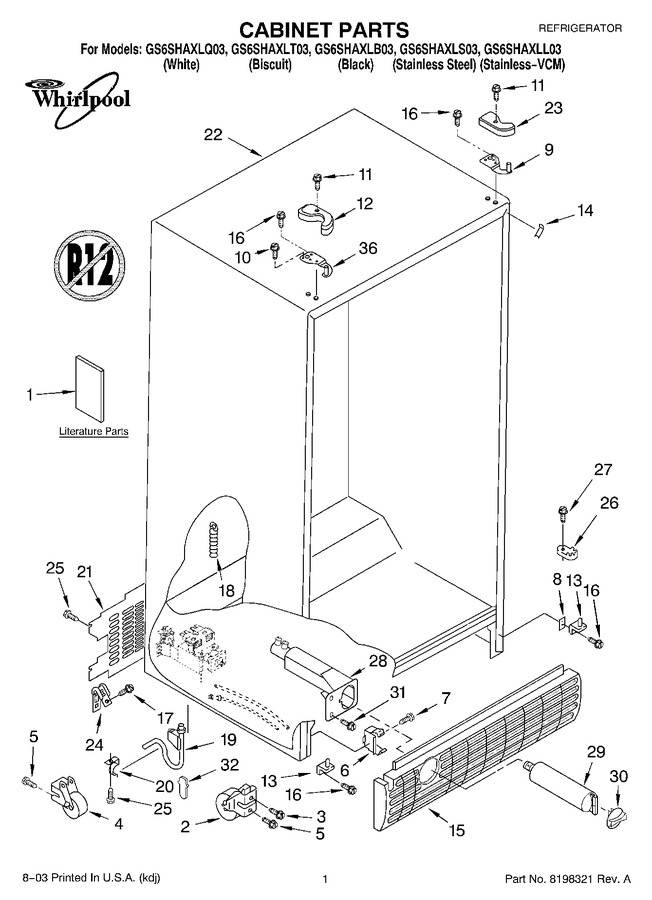

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Parts Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT787316		Literature Parts (icemaker)		Appelez-nous	-
1	LIT2220407		Modular Icemaker Service Sheet		Appelez-nous	-
1	N/A		Following May Be Purchased Do-it-yourself Repair Manuals		Appelez-nous	-
1	LIT2220277		Literature Parts (energy Guide)		Appelez-nous	-
1	LIT2220699		Literature Parts (owner`s Manual)		Appelez-nous	-
1	LIT2255774		Literature Parts (service & Wiring Sheet)		Appelez-nous	-
2	2174748		Front Roller (2)		Appelez-nous	-
3	W10850698		Screw   (Replaces: 3400517)				$ 11.88
4	WPW10250570		Roller (rear) (2)   (Replaces: 2196236)				$ 40.17
5	WP489427		Screw   (Replaces: 489427)				$ 7.47
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.72
7	WP489128		Screw   (Replaces: 488500)				$ 10.88
8	WP2181911		Shim (2)   (Replaces: 2156056)				$ 33.21
8	2209697		Shim (1)				$ 41.25
9	WP2203771		Hinge Top (rc)   (Replaces: 2203771)				$ 98.22
10	3400858		Screw		Appelez-nous	-
11	WP8281227		Screw   (Replaces: 8281227)				$ 10.44
12	2203407T		Hinge Cover (biscuit)		Appelez-nous	-
12	WP2203407W		Hinge Cover (white)   (Replaces: 2203407W)				$ 20.75
12	WP2203407B		Hinge Cover (black)   (Replaces: 2203407B)				$ 19.52
13	8201707		Hinge Bottom (2)   (Replaces: 2217075)				$ 88.90
14	2196097		Filler, Wrapper (black)		Appelez-nous	-
14	2196150		Filler, Wrapper (biscuit)		Appelez-nous	-
14	2196094		Filler, Wrapper (white)		Appelez-nous	-
15	W10803964		Grille (black)   (Replaces: 2198468B)				$ 127.70
15	2198468T		Grille (biscuit)		Appelez-nous	-
15	W10803964		Grille (white)   (Replaces: 2198468W)				$ 127.70
16	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
17	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
18	W11566763		Drain Fitting   (Replaces: 940139)			Immediately	$ 50.90
19	W11512417		Extension Tube   (Replaces: 2172932)				$ 34.79
20	WP1108439		Clip, Drain Tube   (Replaces: 1108439)				$ 10.74
21	WP2188755		Cover, Unit   (Replaces: 2252036)				$ 135.91
22	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
23	WP2203408W		Hinge Cover (white)   (Replaces: 2203408W)				$ 20.97
23	2203408T		Hinge Cover (biscuit)		Appelez-nous	-
23	WP2203408B		Hinge Cover (black)   (Replaces: 2203408B)				$ 18.63
24	549193		Clamp-service Cord				$ 13.39
25	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
26	WPW10329686		Door Closer, Lower Cam (2)   (Replaces: 2155311)			Immediately	$ 5.43
27	WP489483		Screw   (Replaces: 489483)				$ 10.87
28	WP2186443		Housing, Water Filter   (Replaces: 2186443)			Immediately	$ 97.35
29	EDR5RXD1B		Water Filter   (Replaces: 2203220)			Immediately	$ 49.99
30	WP2186494T		Cap, Water Filter (biscuit)   (Replaces: 2186494T)				$ 11.88
30	WP2186494W		Cap, Water Filter (white)   (Replaces: 2186494W)				$ 55.72
30	WP2186494B		Cap, Water Filter (black)   (Replaces: 2186494B)			Immediately	$ 53.20
31	WP489500		Screw   (Replaces: 489500)				$ 7.78
32	2172957		Flapper, Drain Extension		Appelez-nous	-
36	WP2203770		Hinge Top (fc)   (Replaces: 2203770)				$ 95.52
	N/A		Literature Parts		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
