SELECT A DIAGRAM

01 - Cabinet Back


02 - Compressor (series 50)


03 - Compressor (series 51)


04 - Controls


05 - Crisper Assembly


06 - Evap Fan Assy./crisp Light/water Filter


07 - Evaporator Assy./rollers/water Tank


08 - Fountain


09 - Freezer Compartment


10 - Freezer Door


11 - Freezer Shelves


12 - Handles (jsd2690heb/w)


13 - Hinges


14 - Ice Bucket Assy.


15 - Ice Maker


16 - Refrigerator Door


17 - Refrigerator Shelves


18 - Supplemental Information


19 - Wiring Information

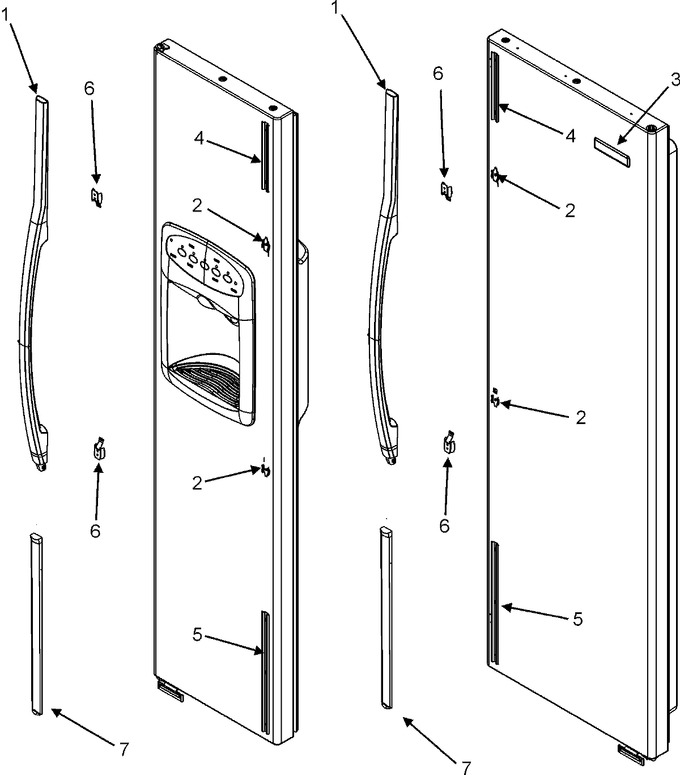

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004651		Handle Assy., Door (wht)	50	Appelez-nous	-
1	67007028		Card, Handle Release Ss & Ws   (Replaces: 67004112)	50			$ 10.57
2	WP7101P126-60		Screw, Sm No.10   (Replaces: 67003800)	50		Immediately	$ 7.61
2	WP67006852		Clip, Handle Butterfly   (Replaces: 67003337)	50			$ 25.47
3	67004548		Nameplate	50	Appelez-nous	-
4	67004116		Cleat, Handle	50			$ 6.39
4	67003801		Screw, Sm No.8	50	Appelez-nous	-
5	67004117		Cleat, Handle	50			$ 6.47
5	67003801		Screw, Sm No.8	50	Appelez-nous	-
6	WP67006197		Screw No.6 Hi Lo .312   (Replaces: 67004293)	50			$ 8.06
6	67004292		Clip, ``c`` Channel	50	Appelez-nous	-
7	67004508		Trim, Handle (wht)	50	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
