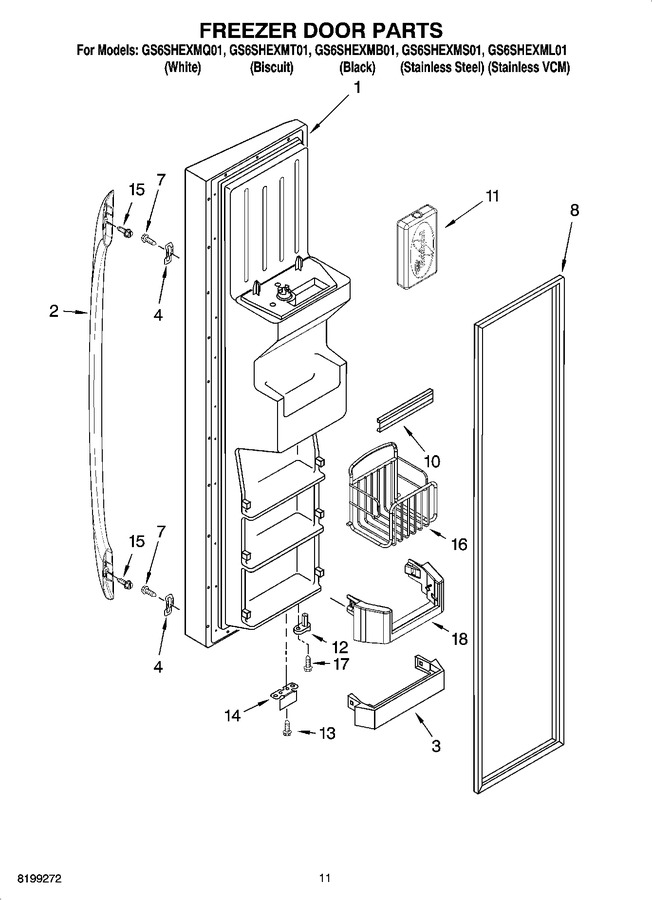

07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2255934T		Freezer Door (includes 8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	2255934B		Freezer Door (includes 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	2255934SB		Freezer Door (includes 8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
1	2255934LB		Freezer Door (includes 8 And Dispenser Front Parts) (stainless-vcm)		Appelez-nous	-
1	2255934W		Freezer Door (includes 8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	2308115B		Handle (includes 15) (black)		Appelez-nous	-
2	2308115W		Handle (includes 15) (white)		Appelez-nous	-
2	2308115T		Handle (includes 15) (biscuit)		Appelez-nous	-
3	WP2171157		Trivet (4)   (Replaces: 2171157)				$ 63.70
4	WP2255411		Clip   (Replaces: 2255411)				$ 36.55
7	WP489491		Screw (4)   (Replaces: 489491)				$ 7.30
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 332.49
8	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221303)				$ 325.70
10	WPW10307490		Trim, Door Shelf   (Replaces: 2219982)			Immediately	$ 24.27
11	2255459		Bottle, Ice Pack		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	2200082		Bracket, Door Stop (chrome)				$ 5.83
14	2200082B		Bracket, Door Stop (black)				$ 42.44
15	8533920		Screw				$ 5.27
16	2304309		Basket, Tilt-out (2)				$ 77.01
17	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
18	2223334		Trivet, Tilt-out (2)				$ 25.46
