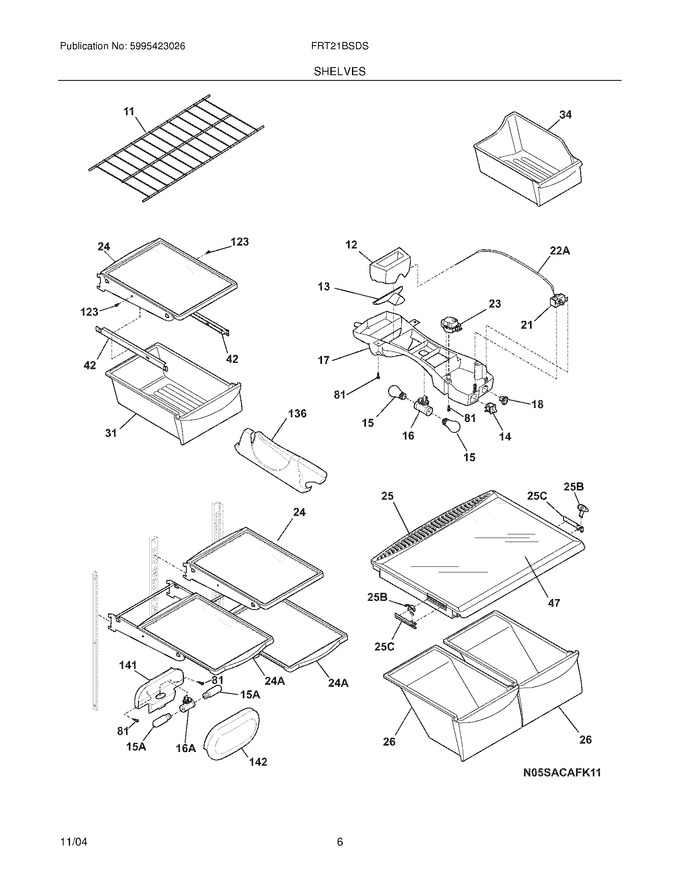

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 240358003 | Shelf,freezer ,full-width ,wire |
|
- | |||||
| 12 | 240545901 | Diffuser-air,top |
|
$ 77.96 | |||||
| 13 | 240362601 | Diffuser-air,bottom |
|
Immediately | $ 46.46 | ||||
| 15 | 316538904 | Light Bulb (Replaces: 241555401) |
|
Immediately | $ 22.75 | ||||
| 16 | 240364201 | Socket-light/lamp,dual |
|
$ 111.67 | |||||
| 17 | 240368105 | Control Box (Replaces: 240368101) |
|
Immediately | $ 144.93 | ||||
| 18 | 240360801 | Knob-temp Control |
|
$ 43.95 | |||||
| 24 | 240355214 | Shelf-``spill-safe``,cantilever ,fixed |
|
$ 278.09 | |||||
| 25 | 240364718 | Cover-crisper Pan |
|
$ 164.62 | |||||
| 26 | 240343803 | Pan-crisper,(2) |
|
Immediately | $ 191.01 | ||||
| 31 | 240530811 | Pan-meat,w/o Graphics ,clear (Replaces: 240530903) |
|
Immediately | $ 150.86 | ||||
| 34 | 240385201 | Container,ice Bin |
|
$ 108.70 | |||||
| 42 | 240365401 | Track,meat Pan Hanger ,lh |
|
Immediately | $ 56.95 | ||||
| 42 | 240356501 | Track,meat Pan Hanger ,rh |
|
Immediately | $ 63.00 | ||||
| 47 | 240350609 | Insert-pan Cover,glass (Replaces: 240350654) |
|
$ 180.33 | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 15.75 | |||||
| 123 | 215005101 | Screw,hanger/rlr Mtg ,8-10 X 0.438 (Replaces: 215005100) |
|
$ 16.54 | |||||
| 136 | 240424501 | Dispenser-can,white |
|
- | |||||
| 141 | 241562101 | Shield-heat,mid Level |
|
$ 66.57 | |||||
| 142 | 241562201 | Shield-light Mid Level |
|
$ 47.99 | |||||
| 15A | 241552802 | Light Bulb |
|
Immediately | $ 56.05 | ||||
| 16A | 241622802 | Socket-light (Replaces: 241507803) |
|
$ 73.25 | |||||
| 22A | 5303916855 | Tube,sensor Sleeve ,plastic ,clear |
|
$ 67.73 | |||||
| 24A | 240350125 | Shelf-``spill-safe``,cantilever ,half Width,sliding |
|
- | |||||
| 25B | 5304492617 | Control-humidity (Replaces: 240361201) |
|
Immediately | $ 9.65 | ||||
| 25C | 5304492617 | Damper,humidity Cont. (Replaces: 240361301) |
|
Immediately | $ 9.65 | ||||
| F14 | 241554901 | Switch-light/lamp |
|
$ 78.75 | |||||
| F16A | 241593901 | Harness-wiring |
|
$ 54.29 | |||||
| F21 | 241537103 | Control-temperature (Replaces: 5304421256) |
|
Immediately | $ 80.34 | ||||
| F23 | 215846602 | Timer-defrost (Replaces: 240371001) |
|
Immediately | $ 31.33 | ||||
| NI | 5303299664 | Spacer-shelf |
|
$ 26.78 | |||||
| NI | 241566801 | Harness-wiring,c/box M/level |
|
$ 59.96 | |||||
| NI | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 18.90 |
