01 - Cabinet Parts
02 - Shelf Parts

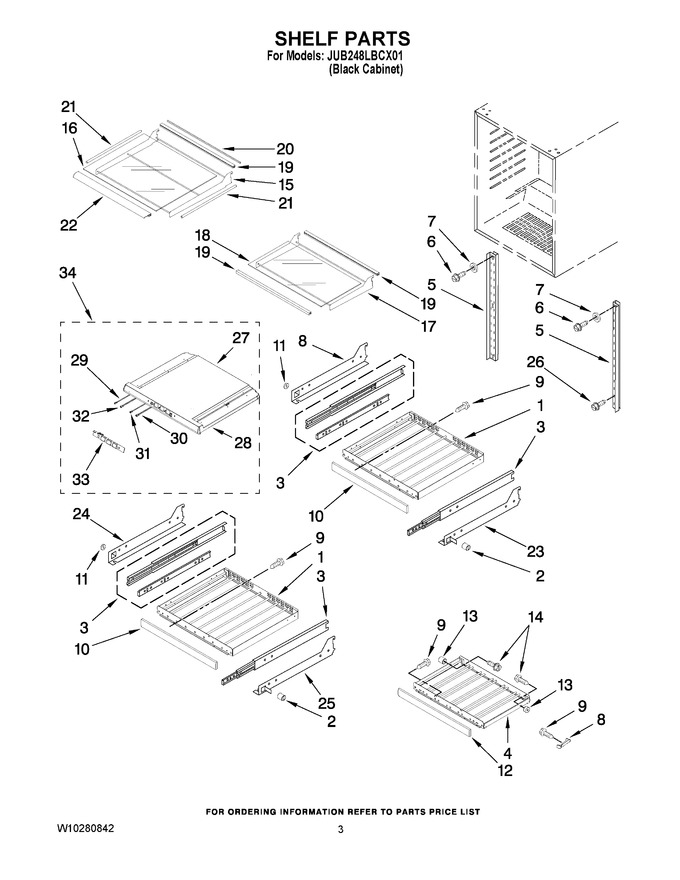

03 - Door Parts
04 - Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10238032 | Wine Rack Top & Middle |
|
- | |||||
| 2 | 4344866 | Rubber Support |
|
- | |||||
| 3 | W10238029 | Rail Assembly |
|
$ 166.80 | |||||
| 4 | W10187313 | Wine Rack, Lower |
|
- | |||||
| 5 | 4344842 | Ladder, Shelf (left Side) |
|
- | |||||
| 5 | 4344843 | Ladder, Shelf (right Side) |
|
- | |||||
| 6 | 4344794 | Screw |
|
- | |||||
| 7 | 4344795 | Washer |
|
- | |||||
| 8 | W10239367 | Shelf Support |
|
- | |||||
| 9 | 4344851 | Screw |
|
- | |||||
| 10 | W10239372 | Trim, Top And Middle Racks |
|
- | |||||
| 11 | 4344867 | Rubber Support |
|
- | |||||
| 12 | W10163279 | Trim, Lower Rack |
|
- | |||||
| 13 | 4344886 | Support, Bumper (left) |
|
- | |||||
| 13 | 4344885 | Support, Bumper (right) |
|
- | |||||
| 14 | 4344914 | Screw (right) |
|
- | |||||
| 14 | 4344915 | Screw (left) |
|
- | |||||
| 15 | W10238033 | Shelf, Large |
|
- | |||||
| 16 | 4344871 | Glass, Shelf |
|
- | |||||
| 17 | 4344868 | Shelf, Small |
|
- | |||||
| 18 | 4344869 | Glass Shelf |
|
- | |||||
| 19 | 4344872 | Trim, Shelf |
|
- | |||||
| 20 | 4344873 | Seal, Rear |
|
- | |||||
| 21 | 4344874 | Seal, Side (2) |
|
$ 79.82 | |||||
| 22 | 4344875 | Seal, Front |
|
$ 36.68 | |||||
| 23 | W10239364 | Shelf Support |
|
- | |||||
| 24 | W10239371 | Shelf Support |
|
- | |||||
| 25 | W10239368 | Shelf Support |
|
- | |||||
| 26 | W10162986 | Screw (w/washer) |
|
- | |||||
| 27 | W10238187 | Top Cover |
|
- | |||||
| 28 | W10238184 | Bottom Cover |
|
- | |||||
| 29 | W10238024 | Transformer Cable |
|
- | |||||
| 30 | W10238026 | Sensor Assy |
|
$ 138.18 | |||||
| 31 | W10238025 | Sensor Assy, Top |
|
$ 131.24 | |||||
| 32 | W10238028 | Extension Cable |
|
- | |||||
| 33 | WPW10238180 | Pcb Display Board (Replaces: W10238180) |
|
$ 323.77 | |||||
| 34 | WPW10280398 | Temperature Separator Assy (Replaces: W10280398) |
|
$ 437.29 | |||||
| NI | W10204809 | Screw, Cover |
|
- | |||||
| NI | W10238031 | Led Spacer |
|
- | |||||
| NI | W10239384 | Seal |
|
- | |||||
| NI | W10238189 | Support |
|
- | |||||
| NI | W10239385 | Support Spacer |
|
- |
