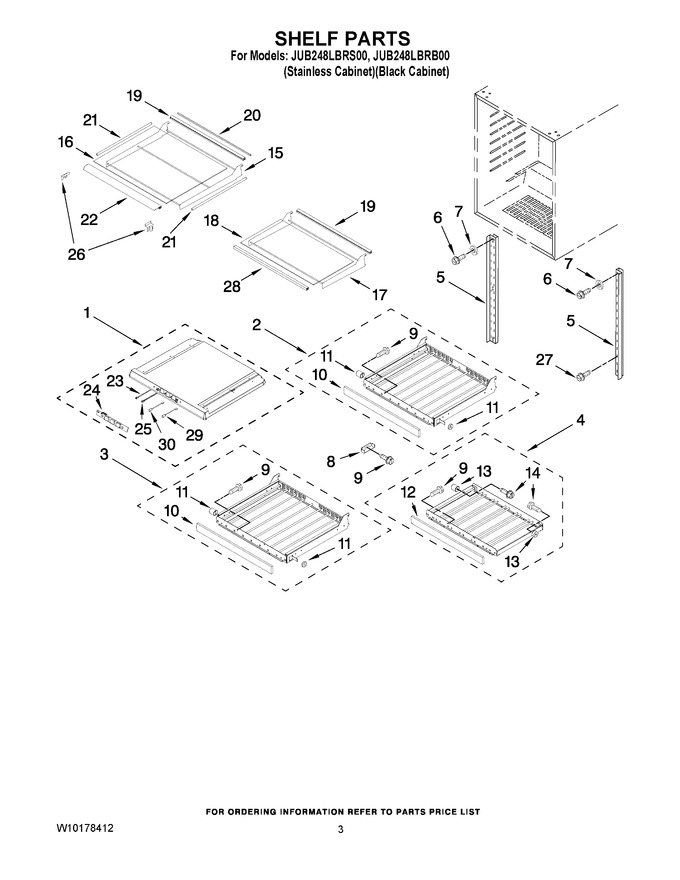

02 - Shelf Parts


03 - Door Parts


04 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10178443		Temperature Separator		Appelez-nous	-
2	4344846		Wine Rack, Top		Appelez-nous	-
3	4344847		Wine Rack, Middle		Appelez-nous	-
4	4344849		Wine Rack, Lower		Appelez-nous	-
5	4344842		Ladder, Shelf (left Side)		Appelez-nous	-
5	4344843		Ladder, Shelf (right Side)		Appelez-nous	-
6	4344794		Screw		Appelez-nous	-
7	4344795		Washer		Appelez-nous	-
8	4344850		Stop, Lower Rack		Appelez-nous	-
9	4344851		Screw		Appelez-nous	-
10	4344882		Trim, Top And Middle Racks		Appelez-nous	-
11	4344866		Support (right)		Appelez-nous	-
11	4344867		Support (left)		Appelez-nous	-
12	4344884		Trim, Lower Rack		Appelez-nous	-
13	4344886		Support, Bumper (left)		Appelez-nous	-
13	4344885		Support, Bumper (right)		Appelez-nous	-
14	4344914		Screw (right)		Appelez-nous	-
14	4344915		Screw (left)		Appelez-nous	-
15	4344870		Shelf, Large		Appelez-nous	-
16	4344871		Glass, Shelf		Appelez-nous	-
17	4344868		Shelf, Small		Appelez-nous	-
18	4344869		Glass Shelf		Appelez-nous	-
19	4344872		Trim, Shelf		Appelez-nous	-
20	4344873		Seal, Rear		Appelez-nous	-
21	4344874		Seal, Side (2)				$ 79.82
22	4344875		Seal, Front				$ 36.68
23	4344895		Transformer Cable		Appelez-nous	-
24	4344896		Pcb Display Board		Appelez-nous	-
25	4344897		Cable				$ 34.43
26	4344905		Support, Shelf (large)				$ 34.84
27	W10162986		Screw (w/washer)		Appelez-nous	-
28	W10167590		Trim, Front		Appelez-nous	-
29	W10182643		Sensor, Black		Appelez-nous	-
30	W10182644		Sensor, White		Appelez-nous	-
