SELECT A DIAGRAM

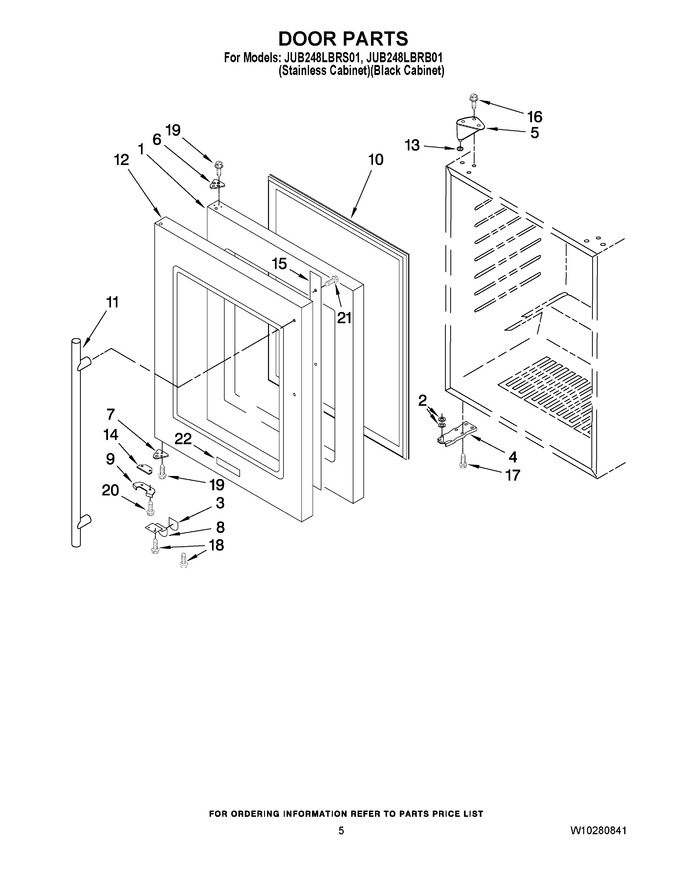

01 - Cabinet Parts


02 - Shelf Parts


03 - Door Parts


04 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10163182		Door Assembly (includes Gasket)		Appelez-nous	-
2	W11241702		Washer/bottom   (Replaces: W10162992)				$ 14.27
3	W10163191		Gasket, Push Plate				$ 14.85
4	W10163069		Hinge, Bottom (black)		Appelez-nous	-
4	4344787		Hinge, Bottom (stainless Steel)				$ 217.36
5	4344754		Hinge, Top (stainless Steel)				$ 89.01
5	W10162991		Hinge, Top (black)		Appelez-nous	-
6	4344755		Spacer, Top Hinge				$ 20.03
7	4344756		Spacer, Bottom Hinge				$ 20.70
8	4344757		Actuator, Switch				$ 154.08
9	4344758		Door Stop (stainless Steel)		Appelez-nous	-
9	W10163074		Door Stop (black)		Appelez-nous	-
10	WPW10238068		Door Gasket   (Replaces: 4344852)				$ 347.01
11	W10163184		Handle, Door		Appelez-nous	-
12	W10163186		Door Skin (stainless Steel)		Appelez-nous	-
12	W10163188		Door Skin (black)		Appelez-nous	-
13	4344760		Washer				$ 15.91
14	4344803		Spacer, Door				$ 175.49
15	W10238056		Plate				$ 27.86
16	4344796		Screw (stainless Steel)				$ 16.82
16	W10162988		Screw (black)		Appelez-nous	-
17	W10243104		Screw, Lower Hinge (quantity 3)		Appelez-nous	-
17	4344906		Screw, Lower Hinge (quantity 1)		Appelez-nous	-
18	W10837731		Screw   (Replaces: W10204865)				$ 8.30
19	W10243123		Screw				$ 16.82
20	4344801		Screw				$ 16.82
21	W10163183		Screw		Appelez-nous	-
22	W10163189		Nameplate		Appelez-nous	-
NI	8171420		Cleaner, Stainless Steel (12 Oz)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
