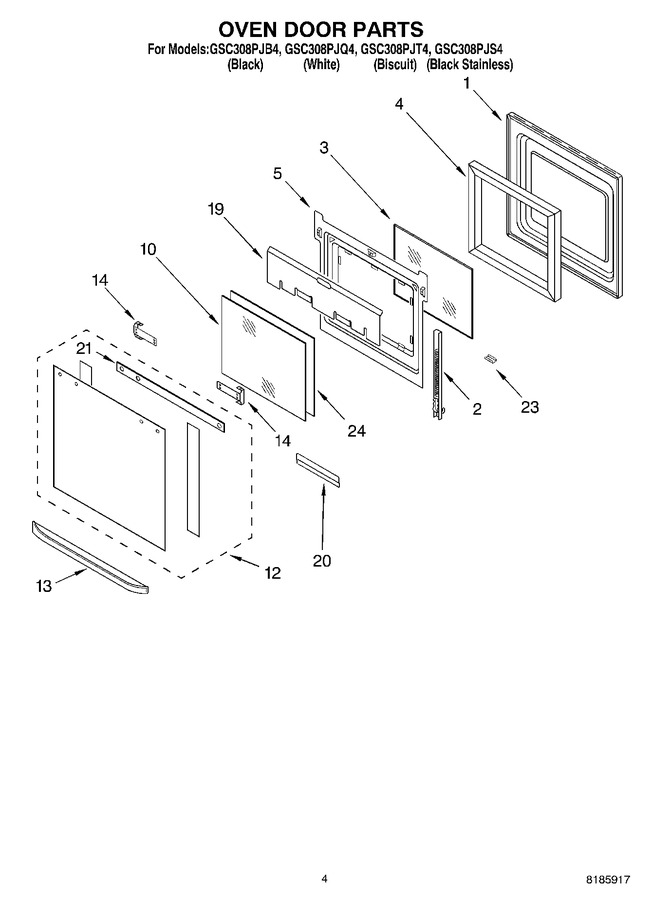

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9759413		Door Liner   (Replaces: 4455618)				$ 352.82
2	WP4449743		Hinge, Door (screw)   (Replaces: 4449743)				$ 7.19
2	WP9760572		Hinge, Door (l.side Hinge, Door For Stainless Model)   (Replaces: 8300572)				$ 106.63
2	WP9760571		Hinge, Door (r.side)   (Replaces: 8300571)			Immediately	$ 109.06
2	8300573		Hinge, Door (r.side)		Appelez-nous	-
2	WP9760574		Hinge, Door (l.side)   (Replaces: 8300574)			Immediately	$ 67.07
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 203.18
4	WP4451722		Insulation, Door And Bottom Door   (Replaces: 4451722)				$ 180.73
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
5	8300778		Retainer, Glass		Appelez-nous	-
10	WP4449263		Glass, Inner   (Replaces: 4449263)			Immediately	$ 167.89
12	4452859		Door Glass (biscuit)		Appelez-nous	-
12	4452065		Door Glass (black Model)		Appelez-nous	-
12	4452066		Door Glass (white Model)		Appelez-nous	-
12	WP9759074		Door Glass (black Stainless)   (Replaces: 4452479)				$ 418.23
13	4448855		Door Handle (white)		Appelez-nous	-
13	4452860		Handle, Door (biscuit)		Appelez-nous	-
13	4448854		Door Handle (black)				$ 74.07
14	W10276642		Screw   (Replaces: 4451040)				$ 6.10
14	4450813		Bracket, Handle				$ 24.20
19	4450362		Shield, Heat		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
20	4451668		Retainer, Glass-clip		Appelez-nous	-
20	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
21	8300820		Seal, Door Top		Appelez-nous	-
23	4452119		Retainer, Glass (biscuit)		Appelez-nous	-
23	4450863		Retainer, Glass (black)		Appelez-nous	-
23	4450864		Retainer, Glass (white)		Appelez-nous	-
24	4455257		Glass, Inner				$ 85.45
