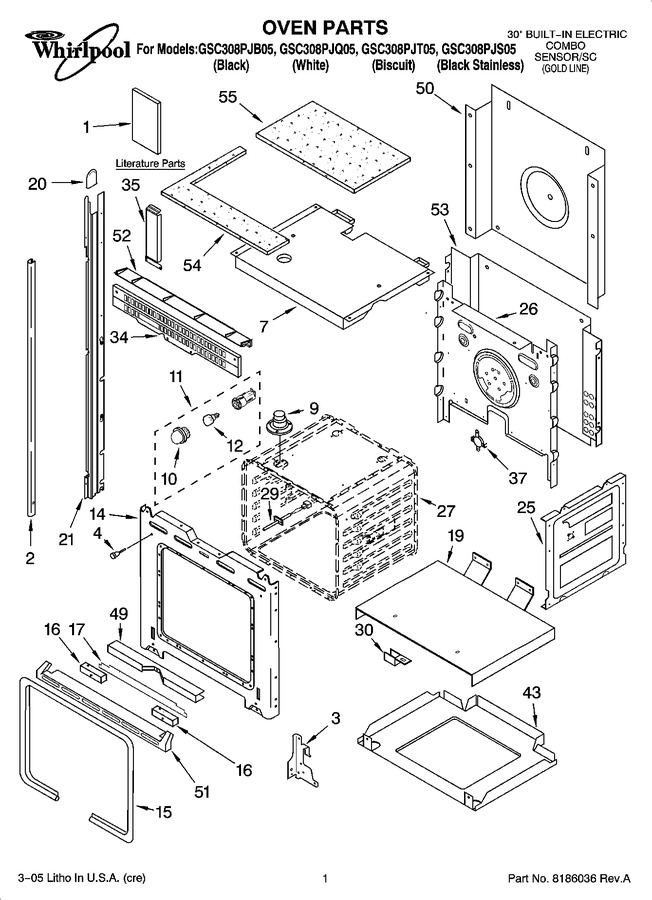

01 - Oven Parts


02 - Control Panel Parts


03 - Oven Door Parts


04 - Latch Parts


05 - Internal Oven Parts


06 - Cabinet And Stirrer Parts


07 - Microwave Compartment Parts


08 - Microwave Door Parts


09 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4449237		Cookbook		Appelez-nous	-
1	4455994		Installation Instructions Use & Care Guide		Appelez-nous	-
1	8300346		Microwave		Appelez-nous	-
1	8300669		Oven Cooking Guide (label)		Appelez-nous	-
1	8300348		Oven		Appelez-nous	-
1	8300349		Microwave		Appelez-nous	-
1	8302004		Tech Sheet (oven)		Appelez-nous	-
1	3191638		Safer Cooking Tips		Appelez-nous	-
2	4452083		Trim, Side (rh Black Stainless)		Appelez-nous	-
2	4455433		Trim, Side (lh White)		Appelez-nous	-
2	4455435		Trim, Side (lh Biscuit)		Appelez-nous	-
2	4452084		Trim, Side (lh Black Stainless)		Appelez-nous	-
2	WP694091		Trim, Side (screw)   (Replaces: 694091)				$ 7.55
2	4455431		Trim, Side (lh Black)				$ 65.17
2	4455434		Trim, Side (rh Biscuit)		Appelez-nous	-
2	4455432		Trim, Side (rh White)		Appelez-nous	-
2	4455430		Trim, Side (rh Black)				$ 67.89
3	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 127.70
3	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 131.74
4	4448520		Bumper, Door				$ 22.25
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
7	4455865		Top, Chassis		Appelez-nous	-
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
9	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
10	4452165		Lens, Light		Appelez-nous	-
11	4452368		Oven Light Assy		Appelez-nous	-
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 53.62
14	WP4449040		Scre   (Replaces: 4449040)				$ 6.78
14	4455612		Frame, Front		Appelez-nous	-
15	W11675844		Gasket, Door   (Replaces: 4455382)			Immediately	$ 74.56
16	4452490		Spacer, Foam				$ 34.83
17	4452337		Insulation Bottom Vent		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
19	4451478		Support, Insulation				$ 54.10
20	4451605		Cap, Spacer				$ 38.55
21	4450584		Rail, Side (left Side)		Appelez-nous	-
21	4450583		Rail, Side (right Side)		Appelez-nous	-
21	WP4448444		Rail, Side (grommet)   (Replaces: 4448444)				$ 7.85
21	WP4449154		Rail, Side (screw)   (Replaces: 4449154)				$ 8.16
25	W10782197		Side, Chassis (r.h. & L.h.)   (Replaces: 4455641)				$ 150.69
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	4452234		Back, Chassis		Appelez-nous	-
27	N/A		Liner, Oven (not Serviceable)		Appelez-nous	-
29	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
30	4449845		Bracket-support		Appelez-nous	-
30	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
34	4451667		Vent, Center		Appelez-nous	-
34	WP4450038		Screw   (Replaces: 4450038)				$ 8.30
35	4449906		Ext Filler		Appelez-nous	-
37	WP9759243		Thermostat (tod) (temp.) Spst   (Replaces: 4451442)			Immediately	$ 55.44
37	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
43	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
43	4455530		Base, Chassis		Appelez-nous	-
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
49	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
51	4455147		Trim, Bottom (black Stainless)				$ 96.52
51	4455445		Trim, Bottom (white)		Appelez-nous	-
51	4455447		Trim, Bottom (biscuit)		Appelez-nous	-
51	4450289		Trim, Bottom (screw)		Appelez-nous	-
51	4455443		Trim, Bottom (black)		Appelez-nous	-
52	4456145		Vent, Control		Appelez-nous	-
53	4451756		Chassis, Back		Appelez-nous	-
53	4452152		Bracket, Mounting Bottom Trim				$ 35.18
54	4452492		Insulation, Top		Appelez-nous	-
55	4450365		Insulation, Back				$ 70.95
55	W11684730		Insulation, Wrap   (Replaces: 4449316)				$ 124.85
55	N/A		Following Parts Not Illustrated Insulation		Appelez-nous	-
55	4452491		Insulation, Grill		Appelez-nous	-
