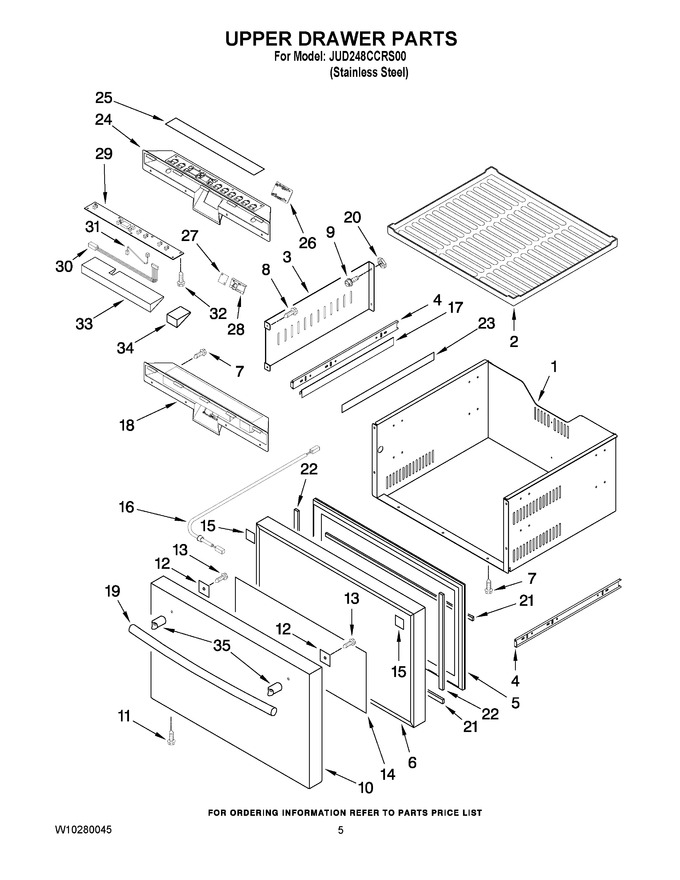

01 - Cabinet Parts


02 - Liner Parts


03 - Upper Drawer Parts


04 - Lower Drawer Parts


05 - Unit Parts


06 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10270484		Drawer Box Assy.		Appelez-nous	-
2	W10204698		Top Mat		Appelez-nous	-
3	W10270486		Drawer Partition				$ 299.33
4	WPW10233777		Rail Assy.   (Replaces: W10233777)				$ 349.36
5	WPW10204700		Gasket   (Replaces: W10204700)			Immediately	$ 308.06
6	W10204701		Top Door Assy.		Appelez-nous	-
7	W10204808		Screw		Appelez-nous	-
8	W10204809		Screw		Appelez-nous	-
9	W10204810		Screw		Appelez-nous	-
10	W10270485		Top Wrap		Appelez-nous	-
11	W10837731		Screw   (Replaces: W10204865)				$ 8.30
12	4344809		Plate, Door Handle		Appelez-nous	-
13	W10269417		Screw		Appelez-nous	-
14	W10204867		Wrap Spacer		Appelez-nous	-
15	W10204868		Wrap Gap Spacer		Appelez-nous	-
16	W10488357		Indicator Harness   (Replaces: W10204884)			Immediately	$ 397.97
17	W10204885		Lead Wire Support		Appelez-nous	-
18	WPW10281592		Control Panel Assy   (Replaces: W10281592)				$ 841.29
19	W10269415		Bar, Handle		Appelez-nous	-
20	W10204920		Nut		Appelez-nous	-
21	W10204889		Door Gasket, Long		Appelez-nous	-
22	W10281502		Door Gasket, Short		Appelez-nous	-
23	W10281504		Wire Support Tape		Appelez-nous	-
24	W10204927		Control Panel		Appelez-nous	-
25	W10270518		Label, Panel		Appelez-nous	-
26	W10204929		Lamp Cover				$ 89.18
27	W10204930		Led Lamp				$ 347.60
28	W10204931		Lamp Holder				$ 79.66
29	WPW10281540		Display Pcb Assy.   (Replaces: W10281540)				$ 762.99
30	W10204933		Pcb Harness				$ 176.63
31	W10304194		Lamp Harness   (Replaces: W10204934)		Appelez-nous	-
32	W10204935		Screw		Appelez-nous	-
33	W10204936		Panel Insulation		Appelez-nous	-
34	W10204937		Panel Insulation B		Appelez-nous	-
35	W10269416		Stud, Handle Bar		Appelez-nous	-
