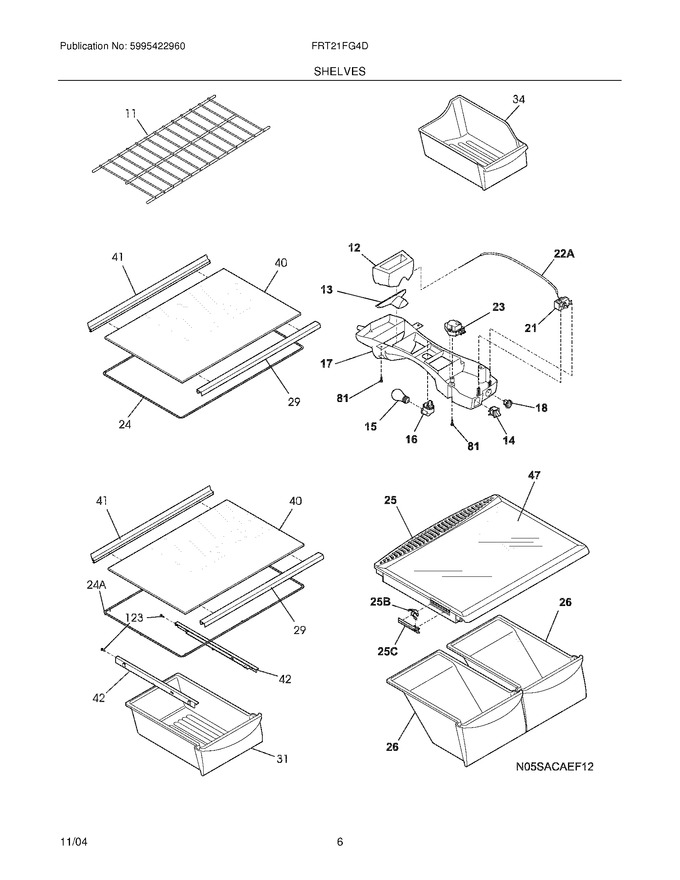

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 240358003 | Shelf,freezer ,full-width ,wire |
|
- | |||||
| 12 | 240545901 | Diffuser-air,top |
|
$ 77.96 | |||||
| 13 | 240362601 | Diffuser-air,bottom |
|
Immediately | $ 46.46 | ||||
| 14 | 241554901 | Switch-light/lamp |
|
$ 78.75 | |||||
| 15 | 316538904 | Light Bulb (Replaces: 241555401) |
|
Immediately | $ 22.75 | ||||
| 16 | 241559801 | Socket-light/lamp (Replaces: 241500701) |
|
$ 80.75 | |||||
| 17 | 240368105 | Control Box (Replaces: 240368101) |
|
Immediately | $ 144.93 | ||||
| 18 | 240360801 | Knob-temp Control |
|
$ 43.95 | |||||
| 24 | 240372407 | Frame-shelf,sliding ,full Width |
|
$ 151.68 | |||||
| 25 | 240364710 | Cover,crisper Pan |
|
- | |||||
| 26 | 240343803 | Pan-crisper,(2) (Replaces: 240343801) |
|
Immediately | $ 191.01 | ||||
| 29 | 240357704 | Trim-shelf,front |
|
Immediately | $ 73.61 | ||||
| 31 | 240530811 | Pan-meat (Replaces: 240530901) |
|
Immediately | $ 150.86 | ||||
| 34 | 240385201 | Container,ice Bin |
|
$ 108.70 | |||||
| 40 | 240443310 | Glass-shelf,full Shelf |
|
- | |||||
| 41 | 240561502 | Trim-shelf,rear |
|
Immediately | $ 79.54 | ||||
| 42 | 240530601 | Track,meat Pan Hanger ,lh |
|
Immediately | $ 73.31 | ||||
| 42 | 240530701 | Track,meat Pan Hanger ,rh |
|
Immediately | $ 73.31 | ||||
| 47 | 240350609 | Insert-pan Cover,glass |
|
$ 180.33 | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 15.75 | |||||
| 123 | 215005101 | Screw,hanger/rlr Mtg ,8-10 X 0.438 (Replaces: 215005100) |
|
$ 16.54 | |||||
| 22A | 5303916855 | Tube,sensor Sleeve ,plastic ,clear |
|
$ 67.73 | |||||
| 24A | 240372408 | Frame-shelf,sliding ,full Width ,w/hanger Tabs |
|
Immediately | $ 186.64 | ||||
| 25B | 5304492617 | Control-humidity (Replaces: 240361201) |
|
Immediately | $ 9.65 | ||||
| 25C | 5304492617 | Damper,humidity Cont. (Replaces: 240361301) |
|
Immediately | $ 9.65 | ||||
| F21 | 241537103 | Control-temperature (Replaces: 5304421256) |
|
Immediately | $ 80.34 | ||||
| F23 | 215846602 | Timer,defrost ,60 Hz ,0.25 W ,120 V ,10 Hour/30 Min (Replaces: 215846606) |
|
Immediately | $ 31.33 | ||||
| NI | 5303299664 | Spacer-shelf |
|
$ 26.78 | |||||
| NI | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 18.90 |
